Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Internal Parts

Internal Parts

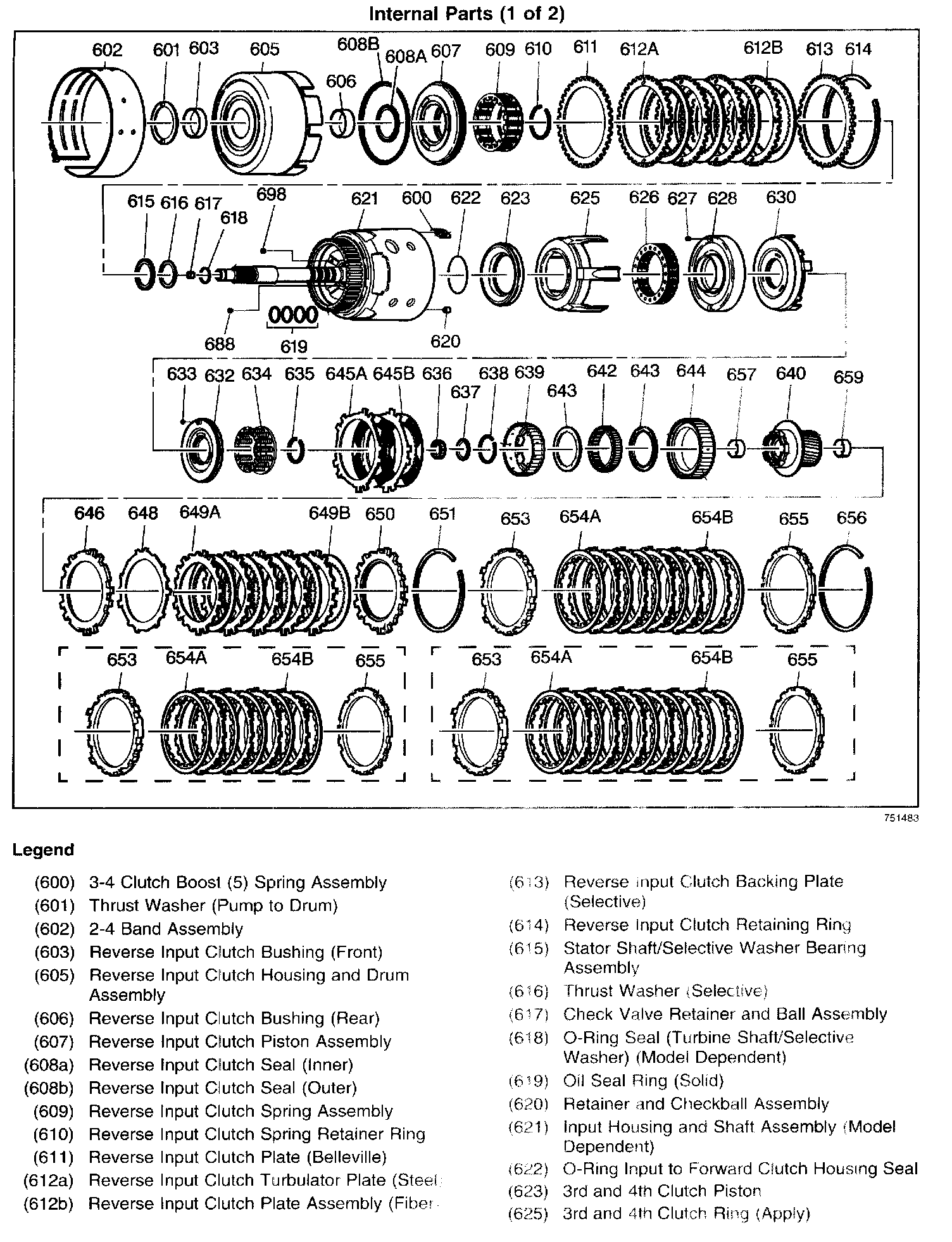

Internal Parts (1 Of 2) Part 1:

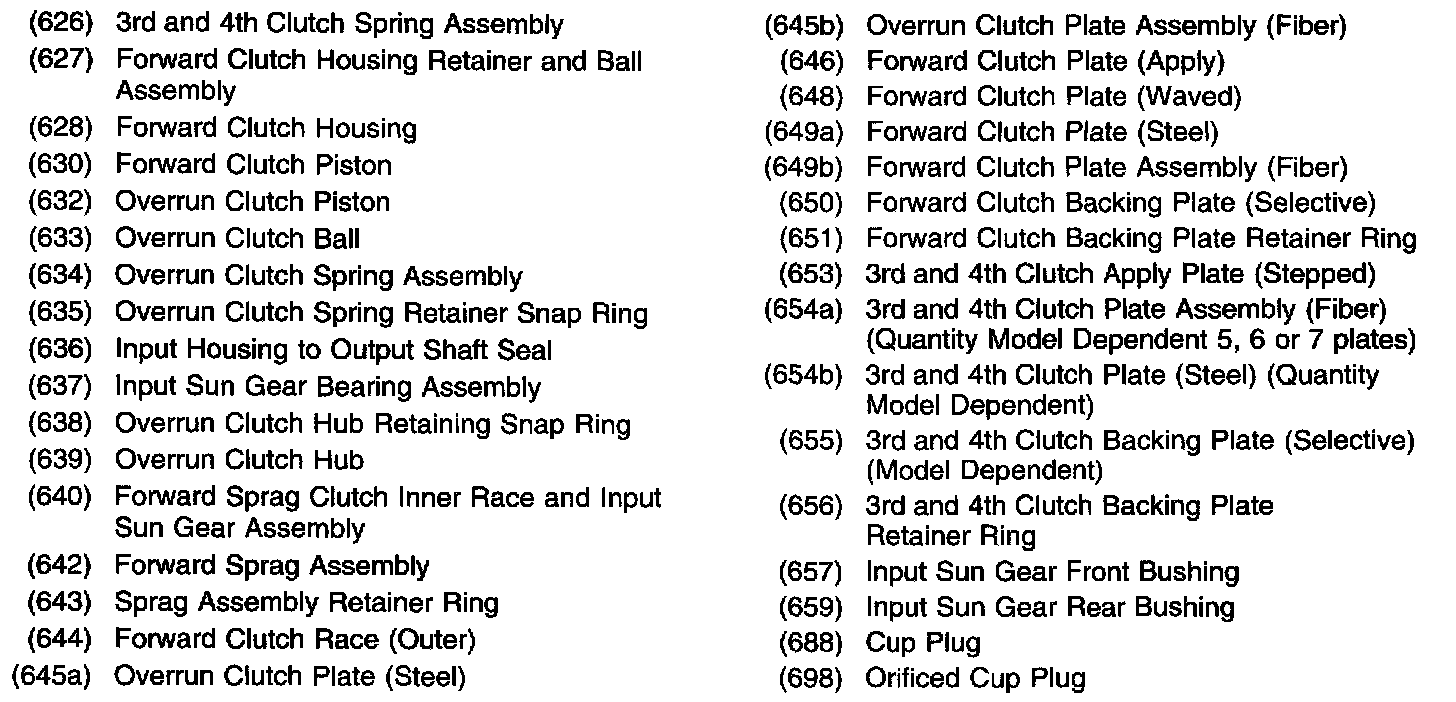

Internal Parts (1 Of 2) Part 2:

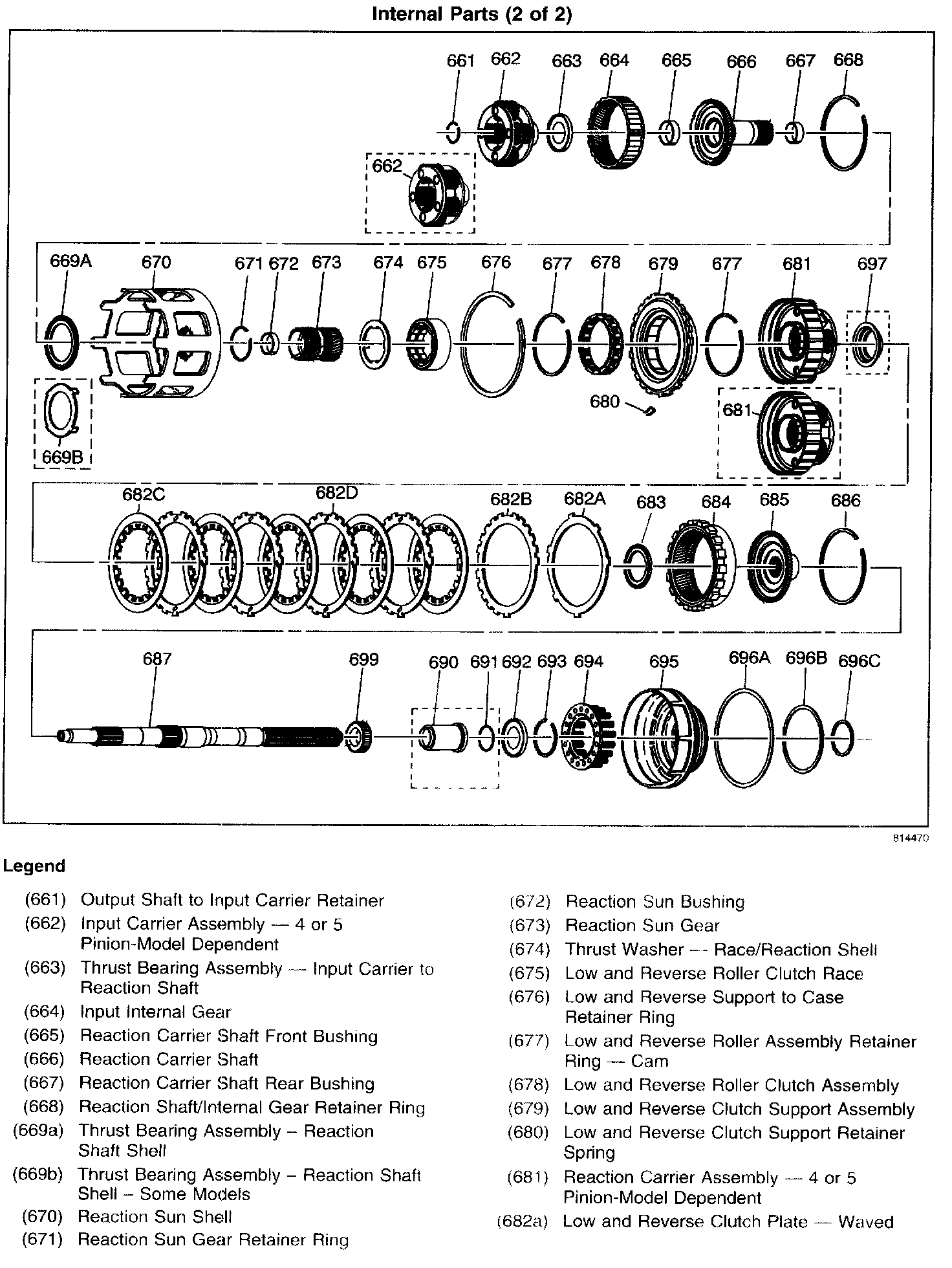

Internal Parts (2 Of 2) Part 1:

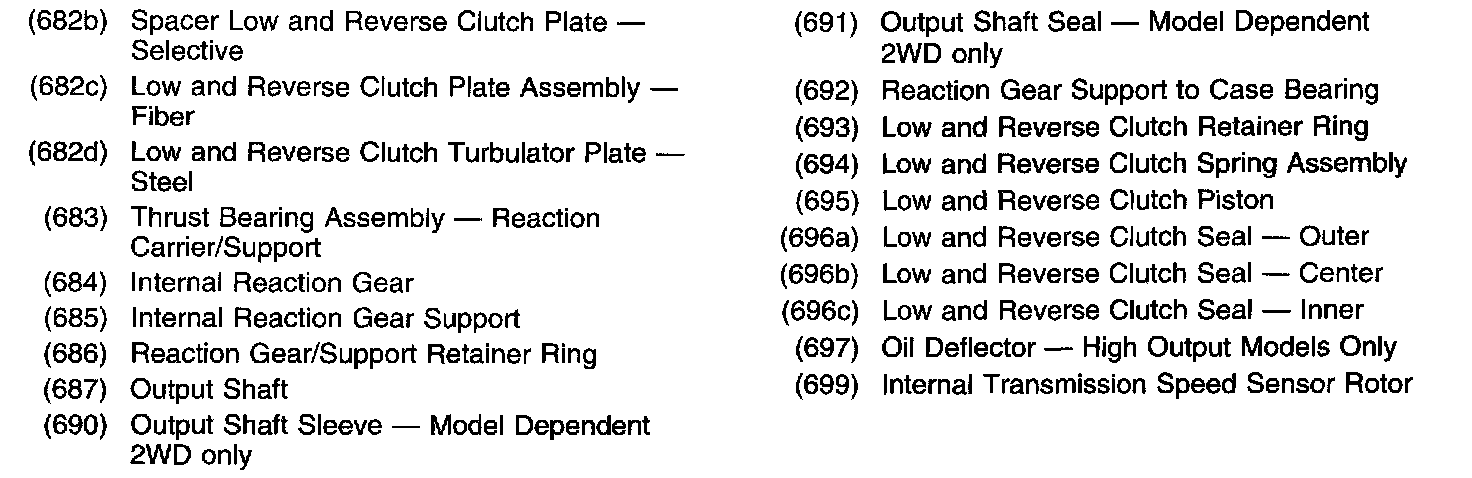

Internal Parts (2 Of 2) Part 2:
