Hummer
>>
2003
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows

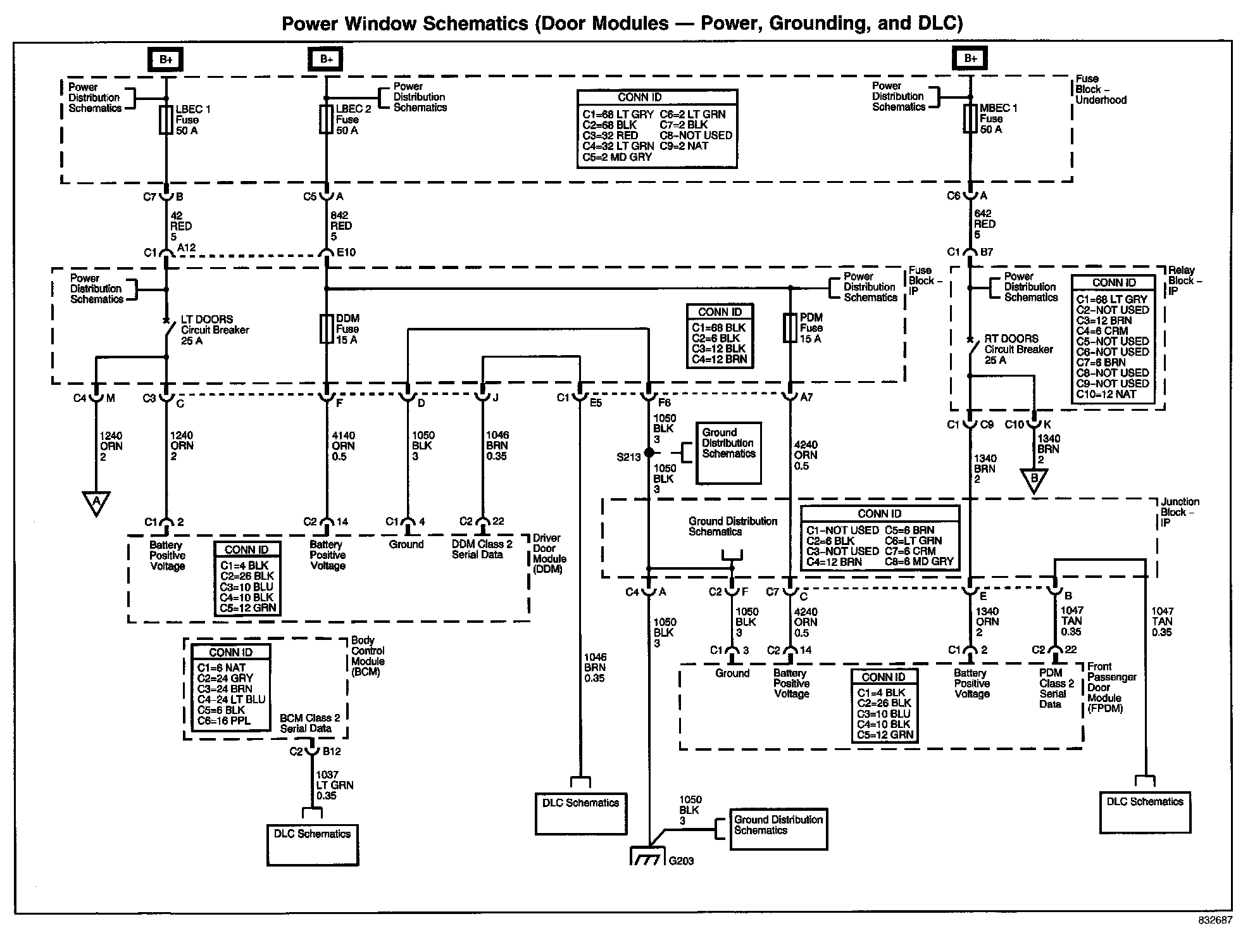

Power Window Diagram 1:

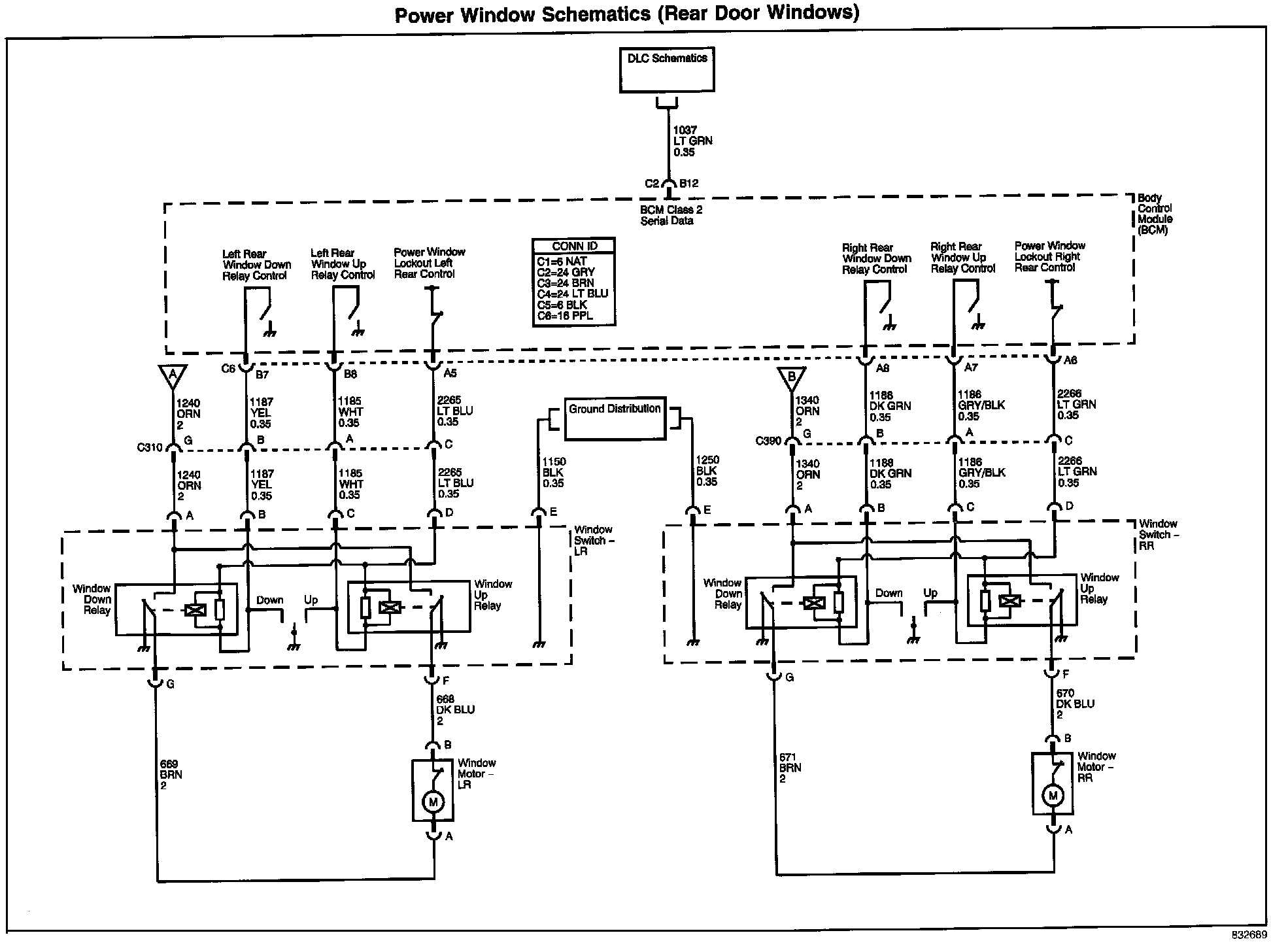

Power Window Diagram 2:

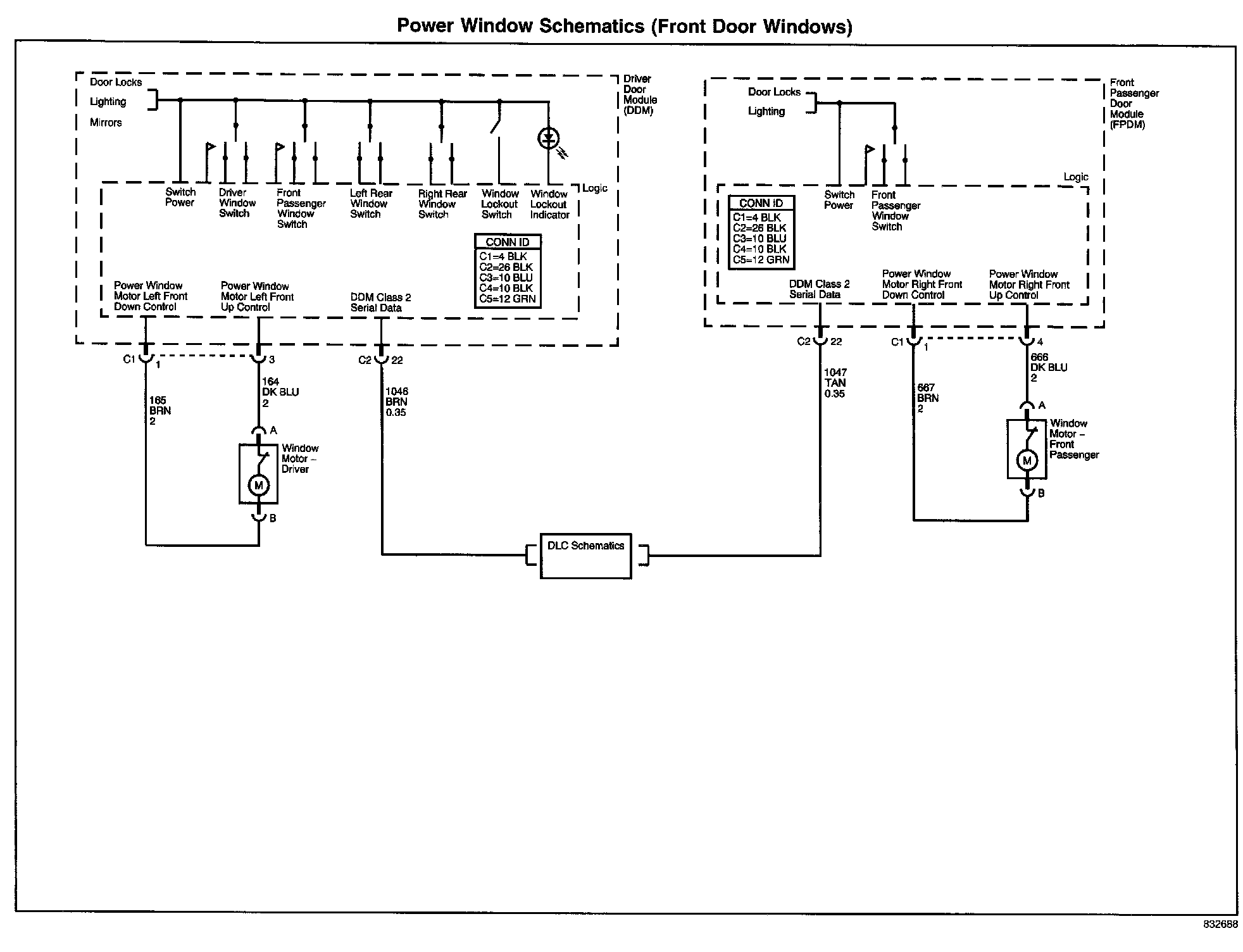

Power Window Diagram 3:
