Memory Positioning Systems
Memory Positioning Systems

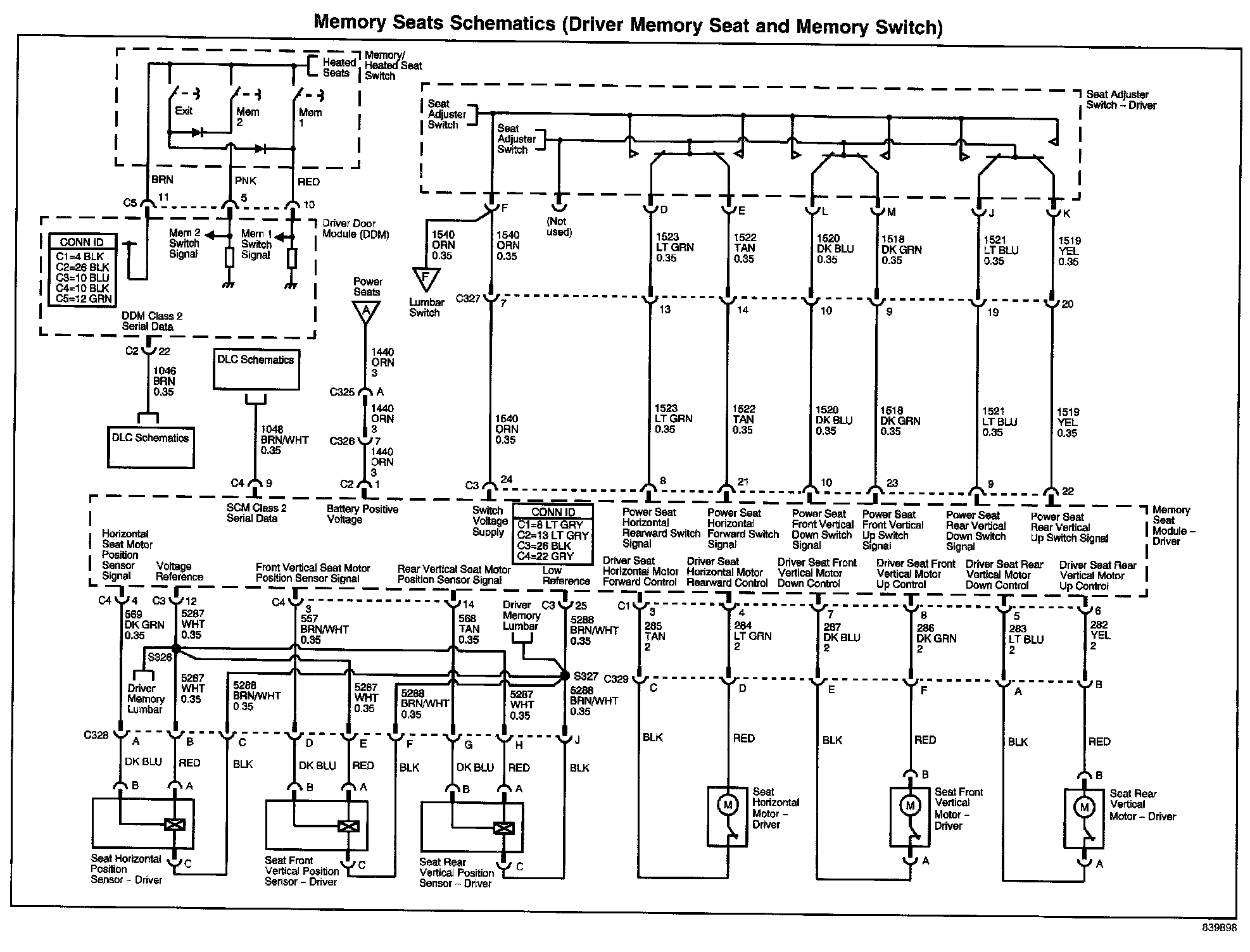

Memory Seats Diagram 1:

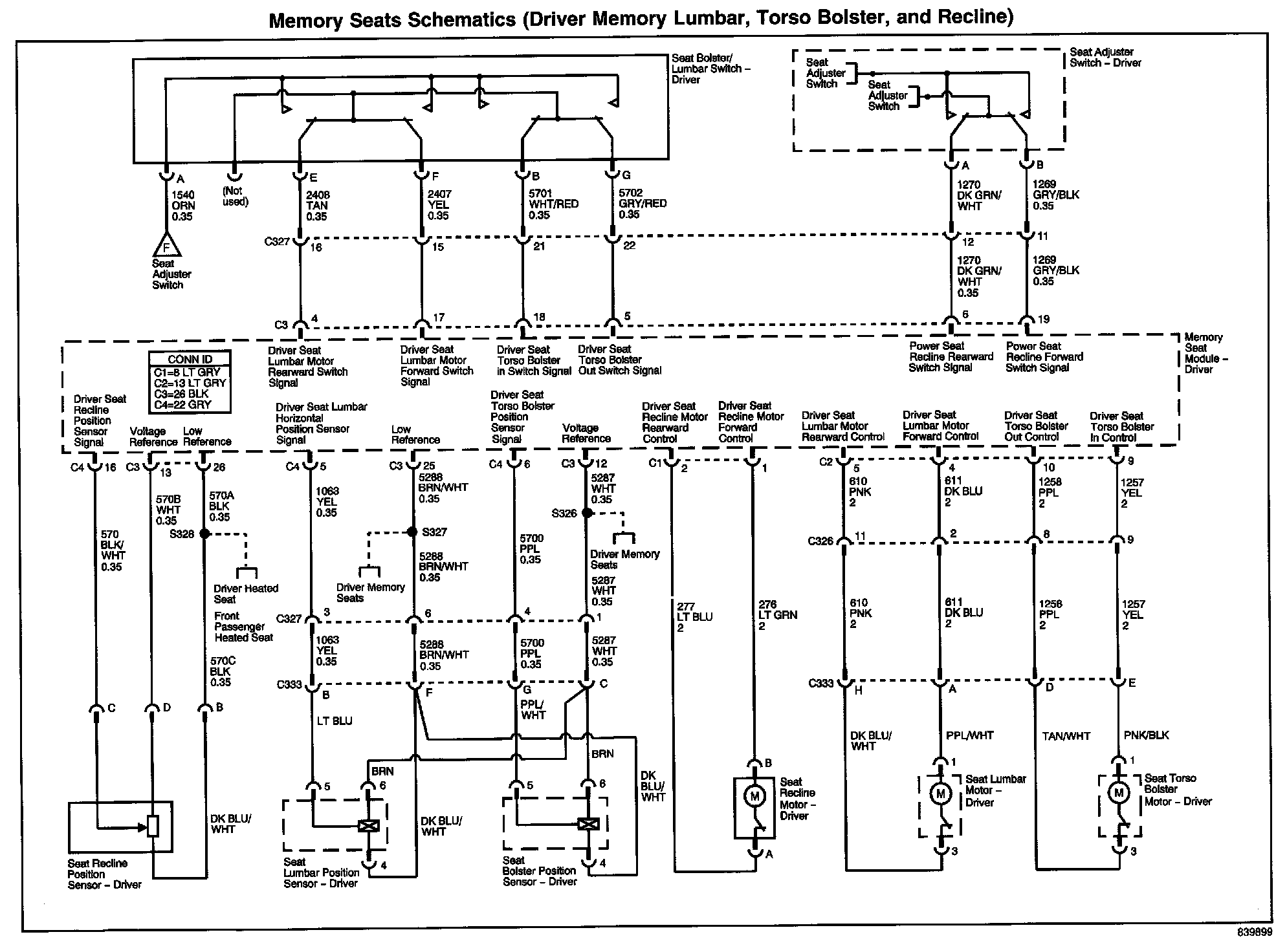

Memory Seats Diagram 2:
