Seat Temperature Control Module
Seat Temperature Control Module

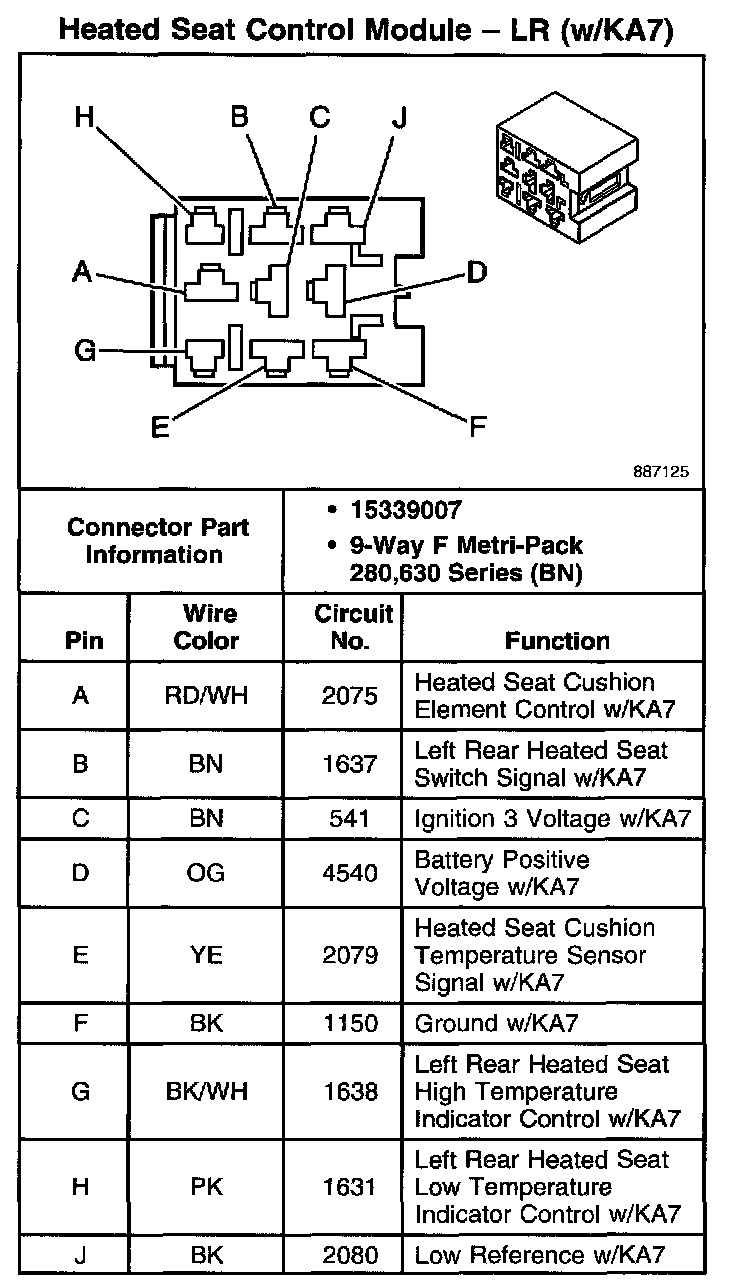

Heated Seat Control Module - LR (With RPO Code KA7):

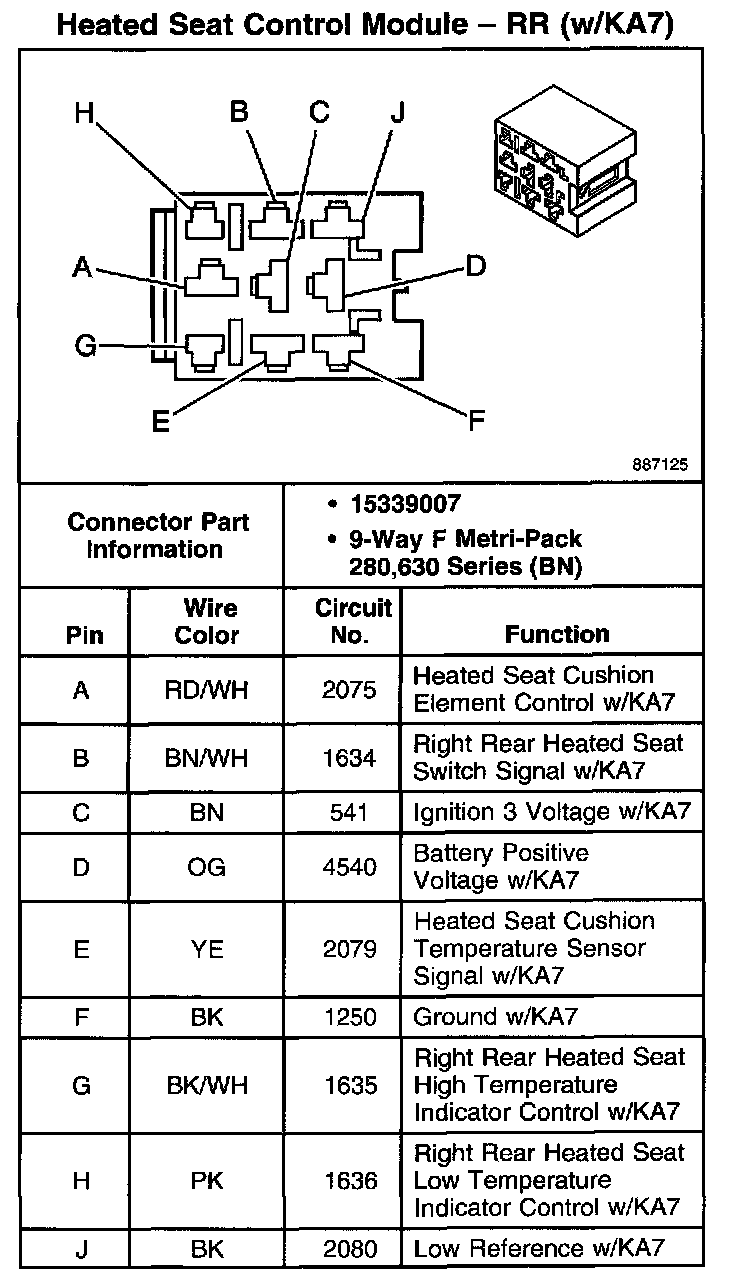

Heated Seat Control Module - RR (With RPO Code KA7):
