Outside Temperature Display Sensor
Outside Temperature Display Sensor

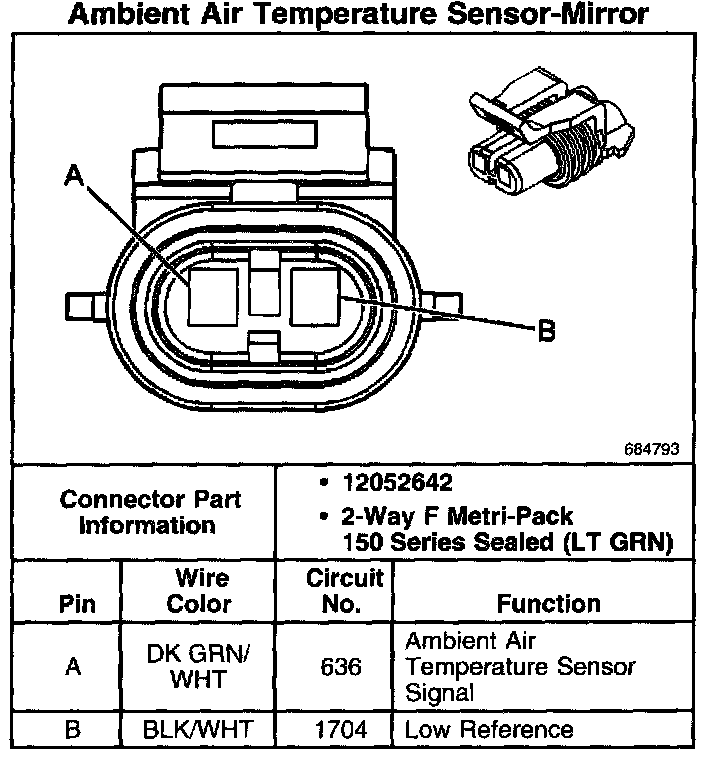

Ambient Air Temperature Sensor - Mirror:
