Hummer
>>
2003
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Neutral Safety Switch
Neutral Safety Switch
Park/Neutral Position:

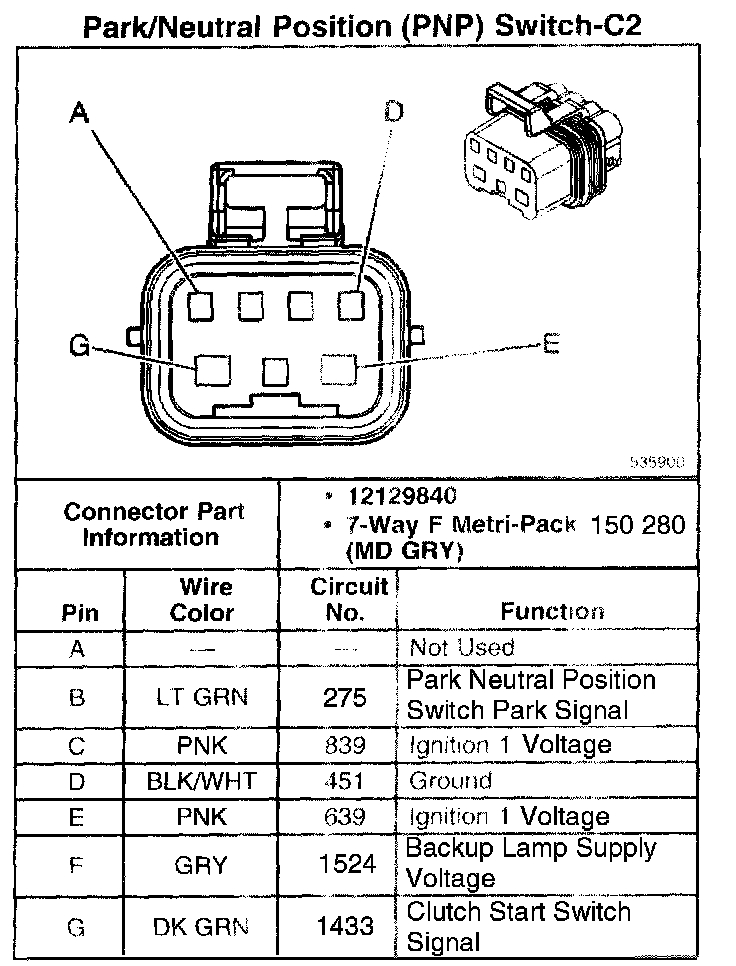

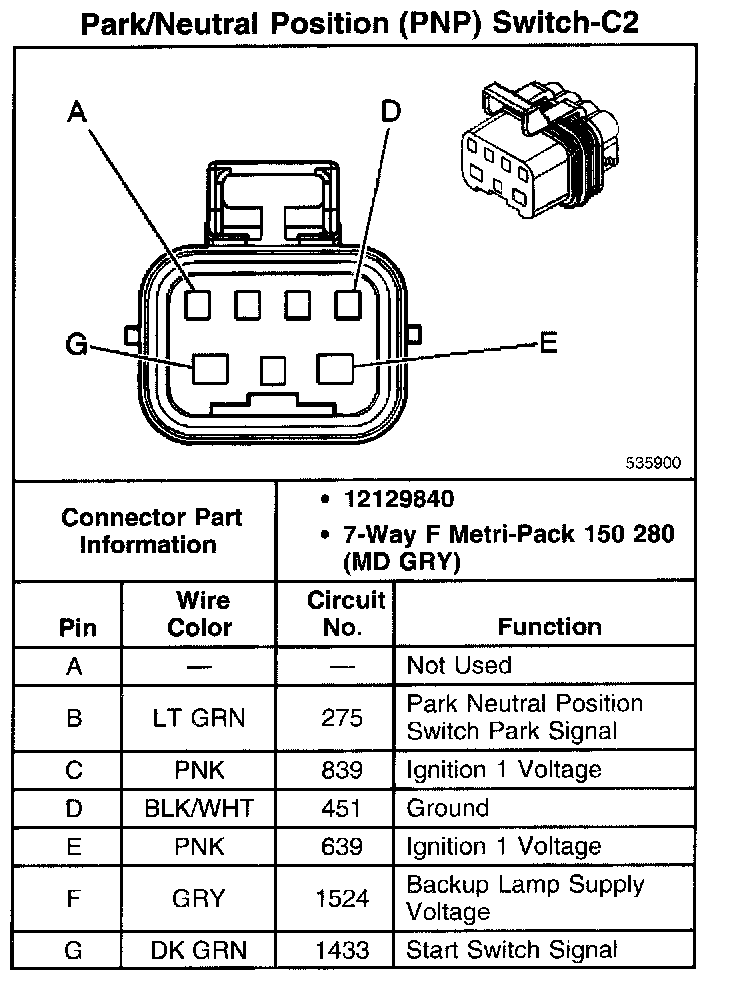

Park/Neutral Position(PNP) Switch - C2:
