lemon-mirror
:
Home
>>
Hummer
>>
2003
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Memory Positioning Switch
Memory Positioning Switch

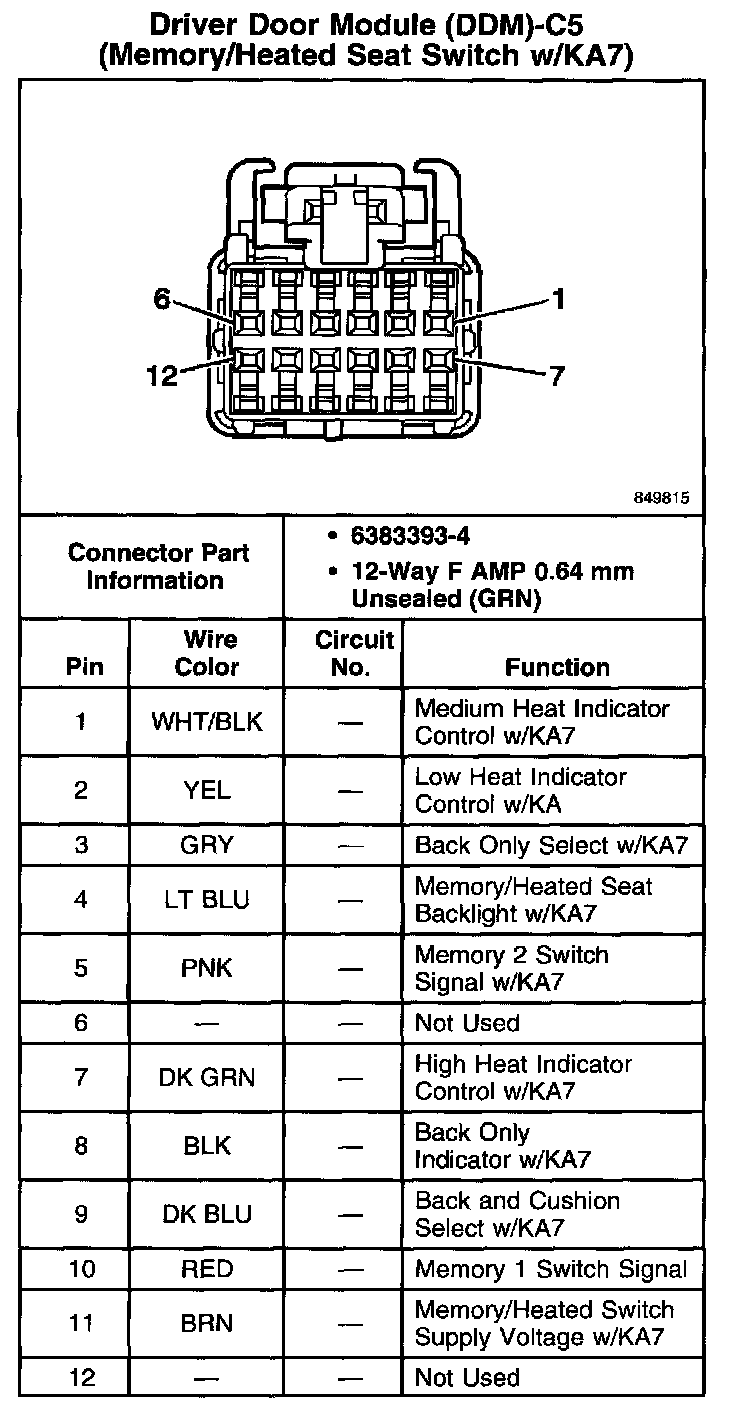

Driver Door Module (DDM) - C5 (Memory/Heated Seat Switch With RPO Code KA7):
