Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor

Impact Sensor

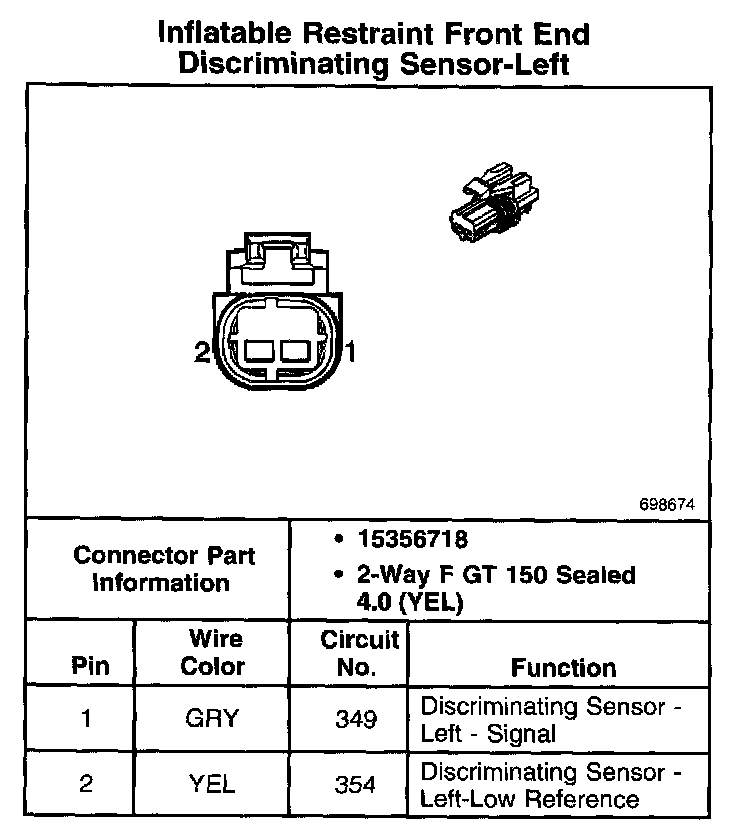

Inflatable Restraint Front End Discriminating Sensor-Left:

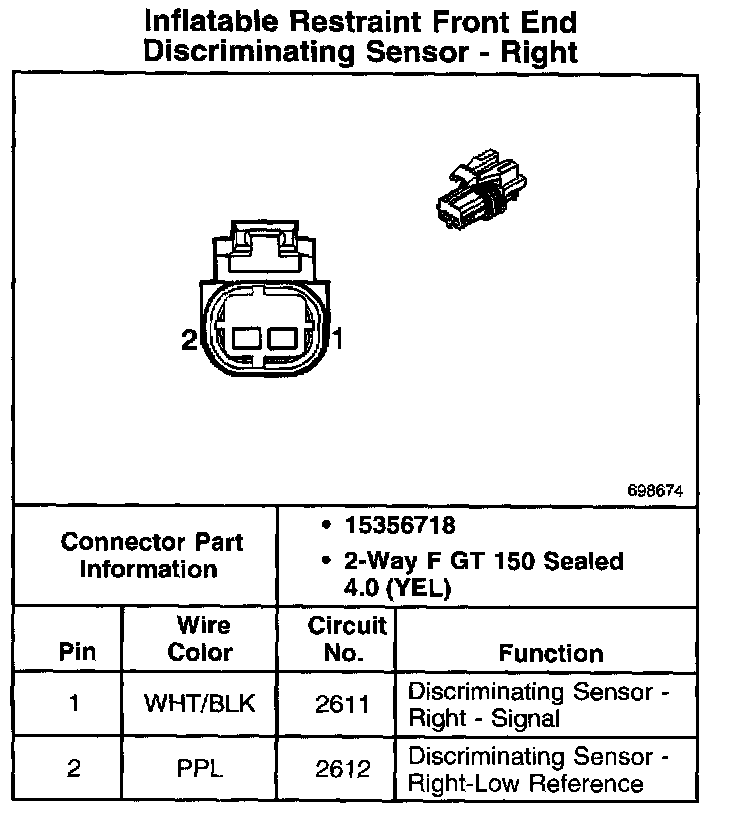

Inflatable Restraint Front End Discriminating Sensor-Right:
