Hummer
>>
2003
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Switch
>>
Ignition Switch Lock Cylinder
Ignition Switch Lock Cylinder

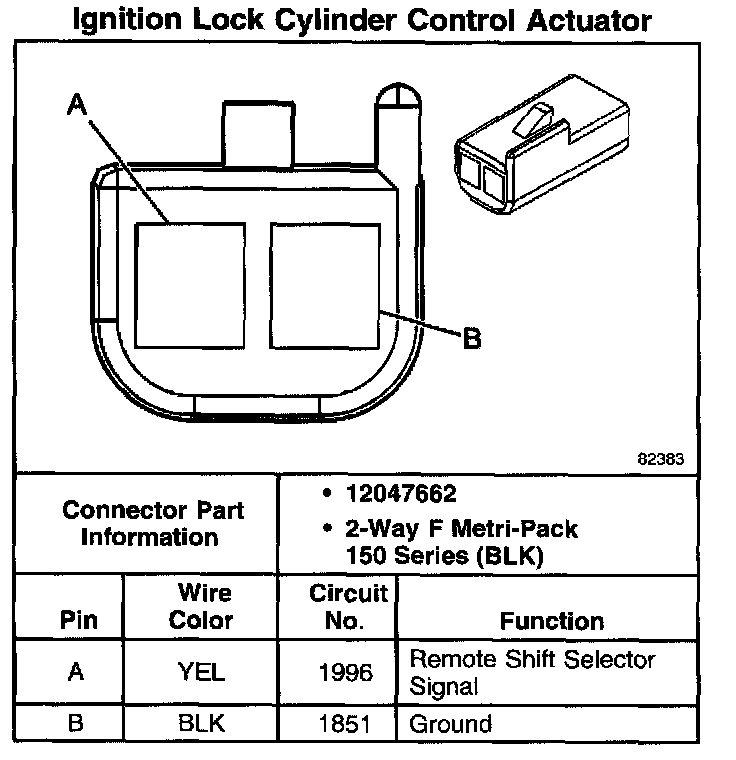

Ignition Lock Cylinder Control Actuator:
