Ignition Coil
Ignition Coil

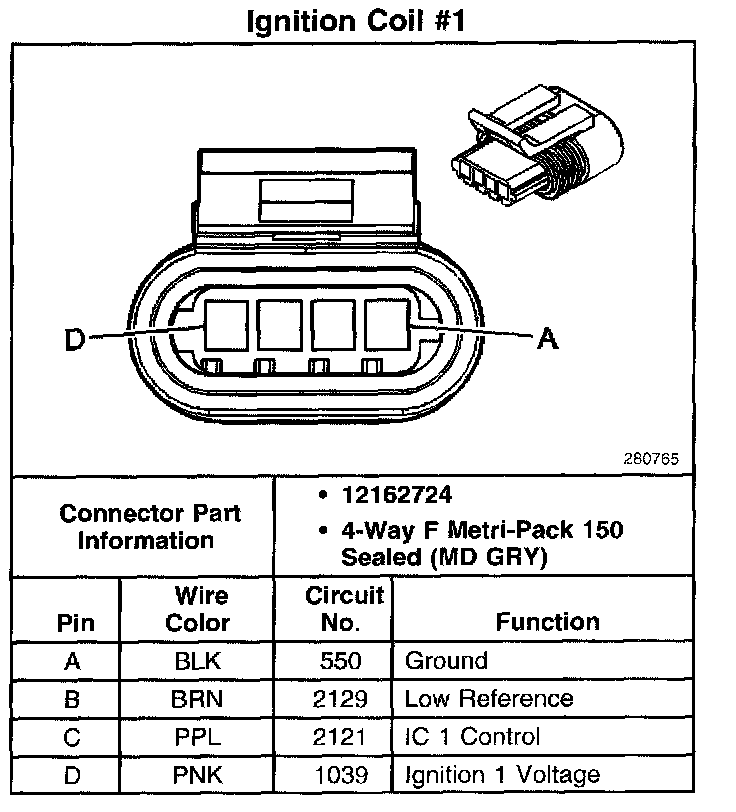

Ignition Coil #1:

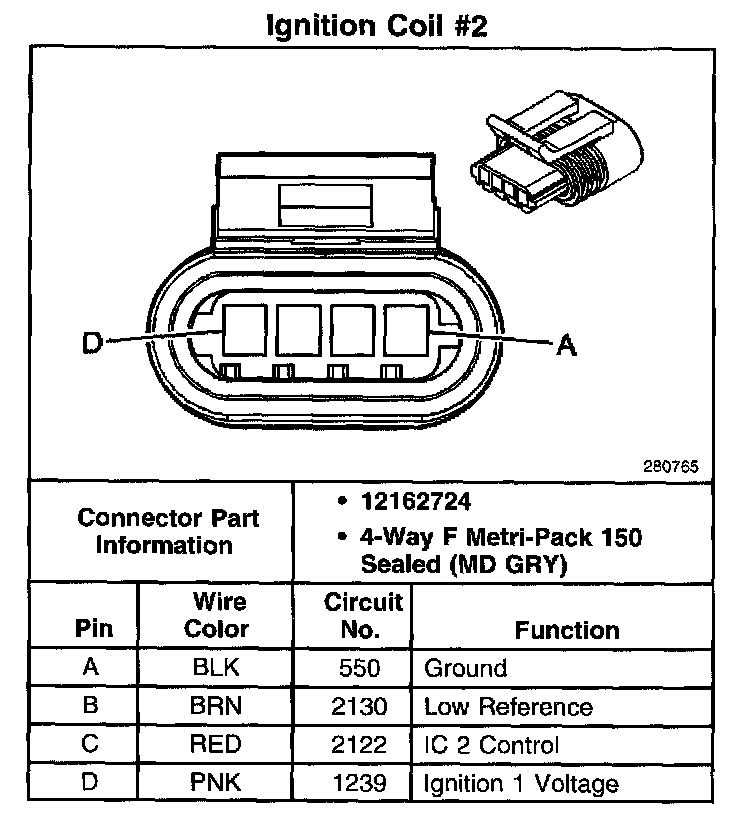

Ignition Coil #2:

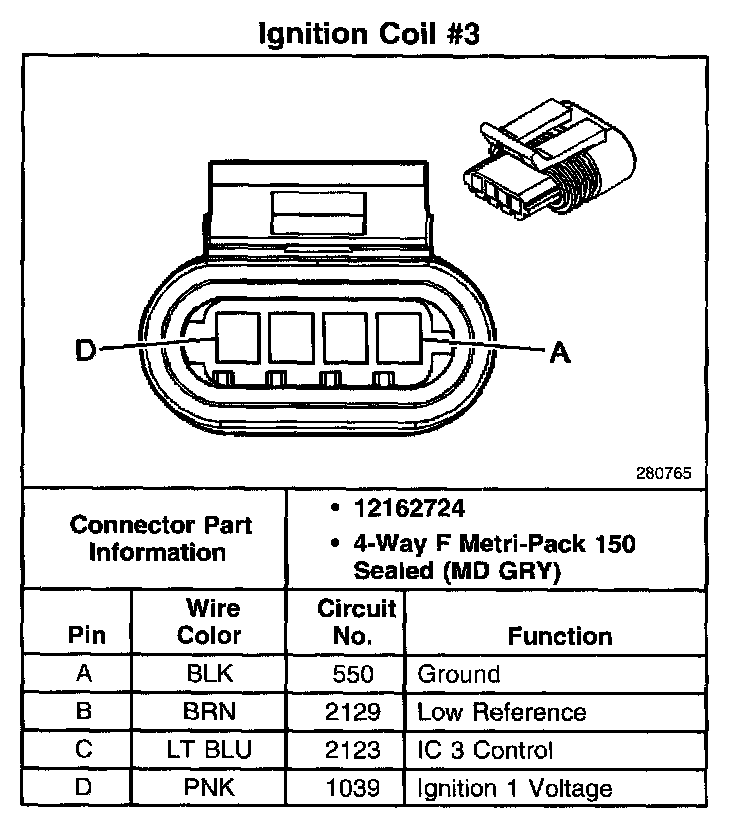

Ignition Coil #3:
Ignition Coil #4:

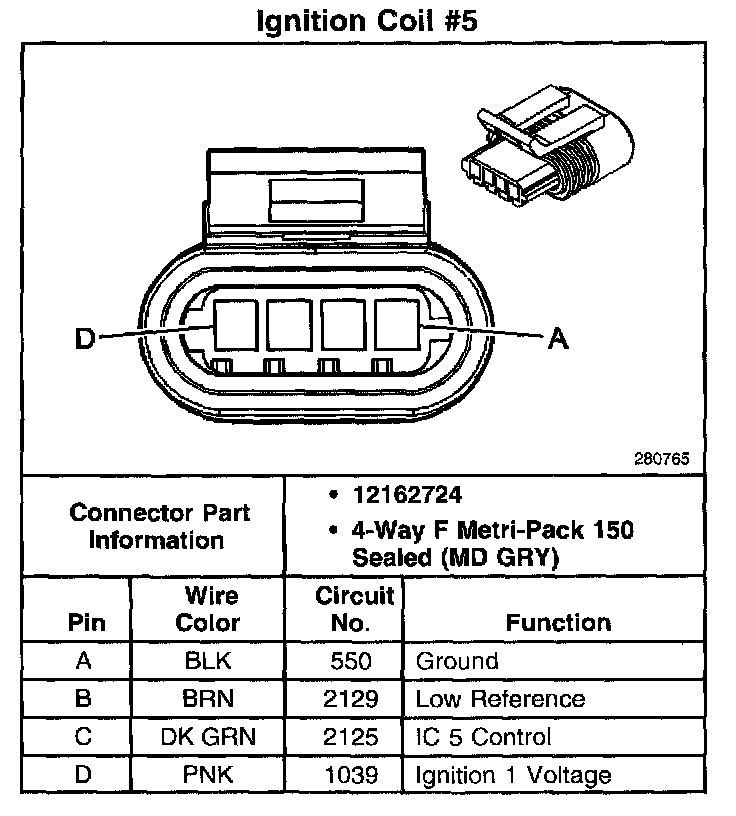

Ignition Coil #5:

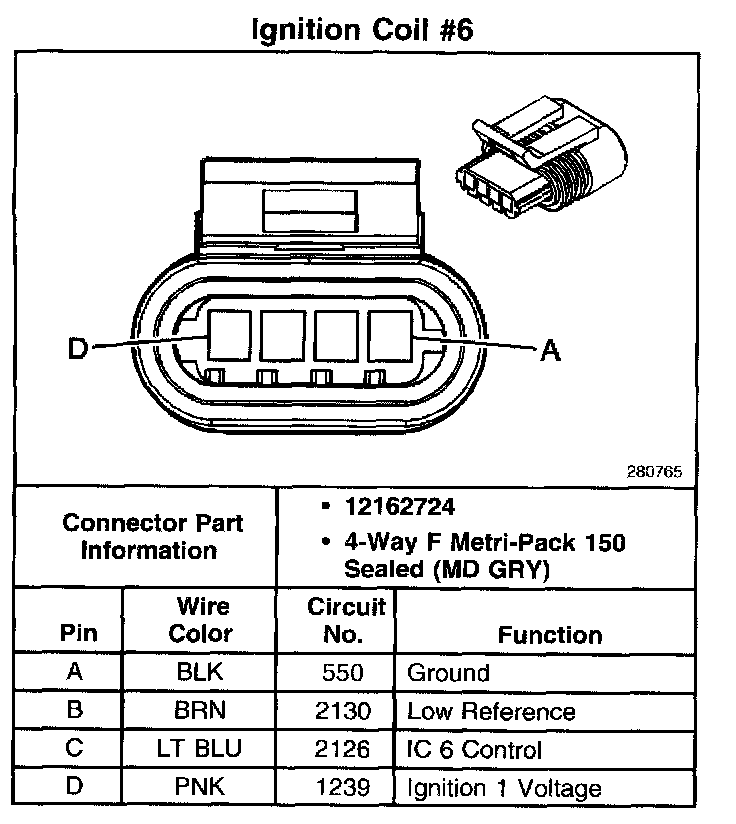

Ignition Coil #6:

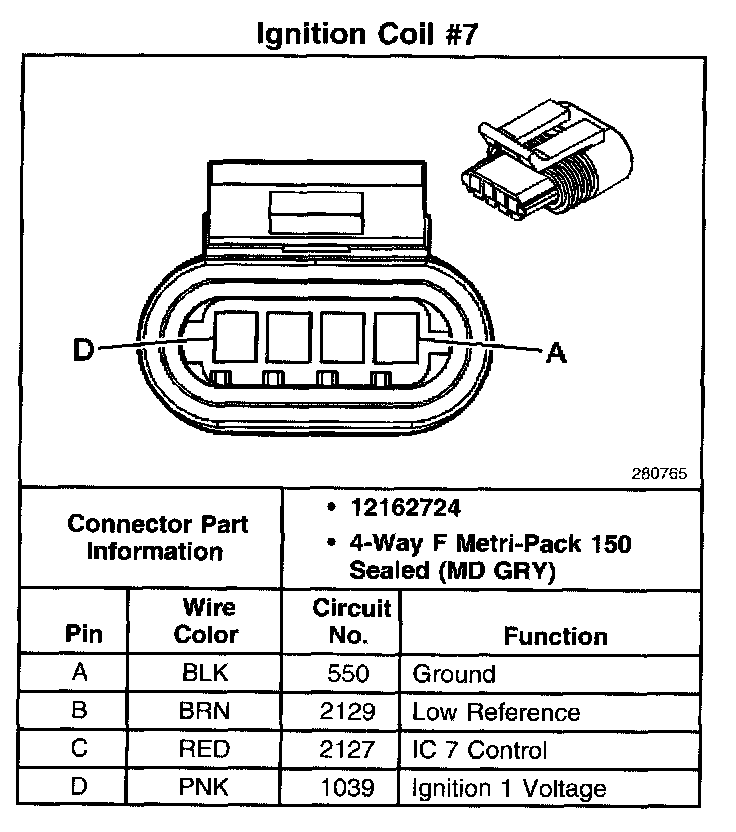

Ignition Coil #7:
Ignition Coil #8:
