Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Front Passenger Door Module (FPDM) - C2

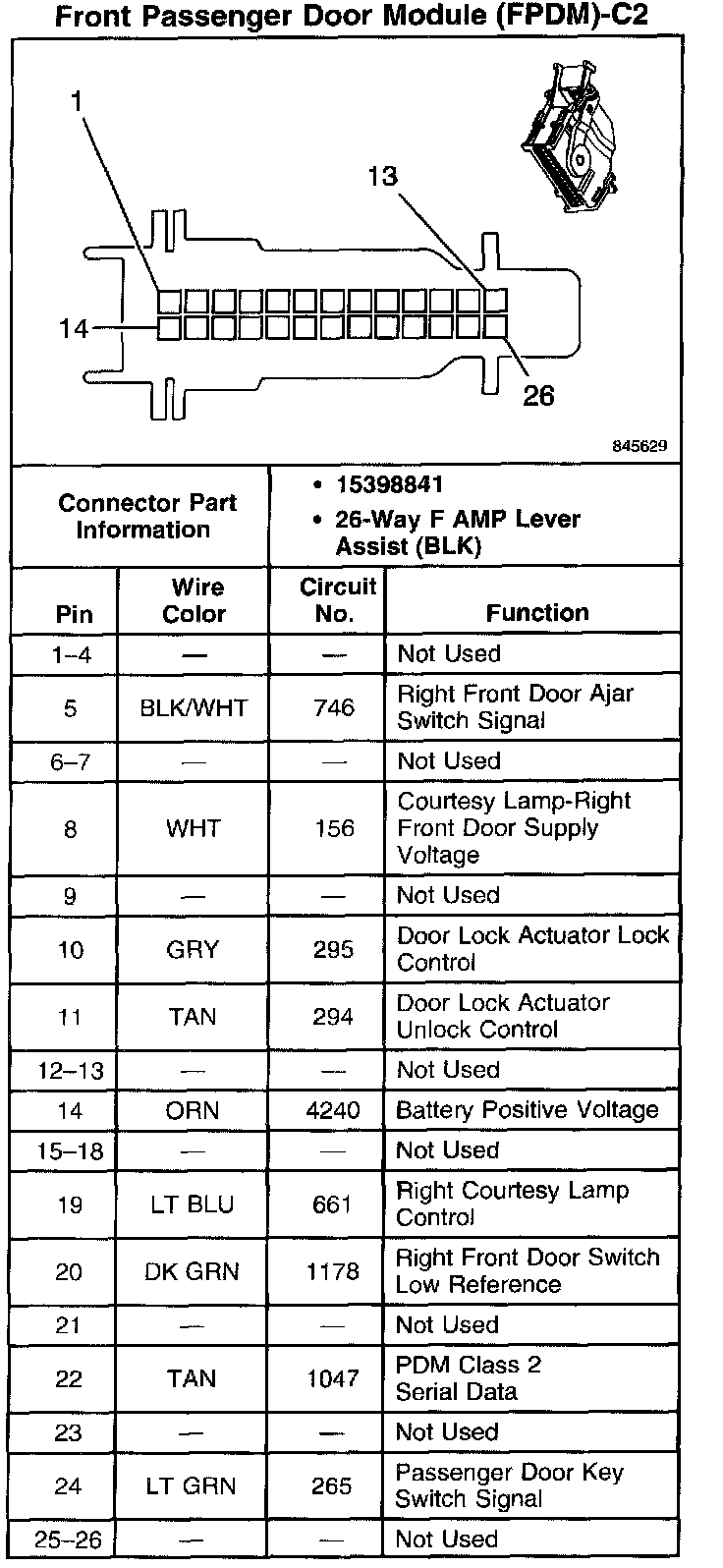

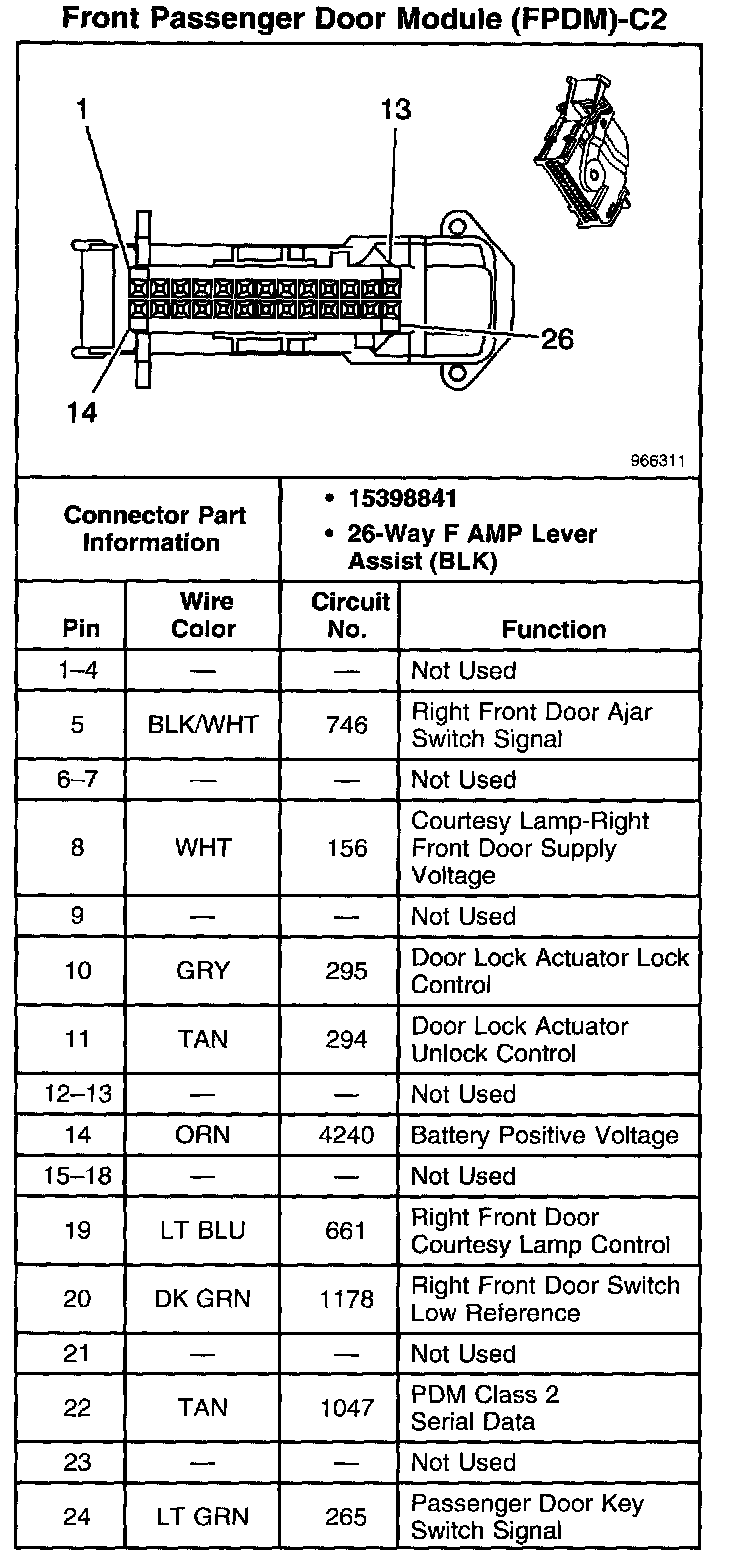

Front Passenger Door Module (FPDM) - C2

Front Passenger Door Module (FPDM) - C2:

Front Passenger Door Module (FPDM) - C2:
