lemon-mirror
:
Home
>>
Hummer
>>
2003
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cellular Phone
Cellular Phone

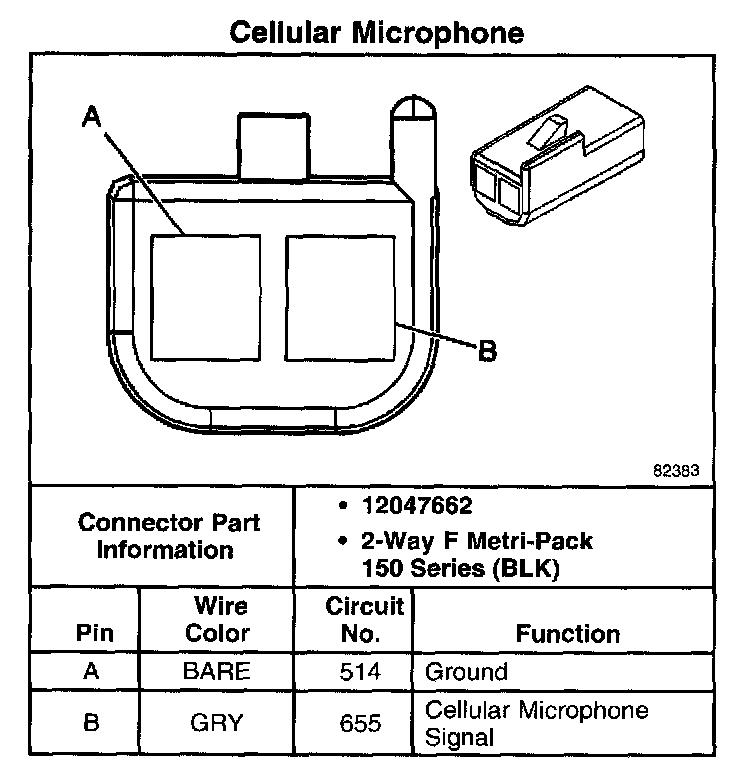

Cellular Microphone:

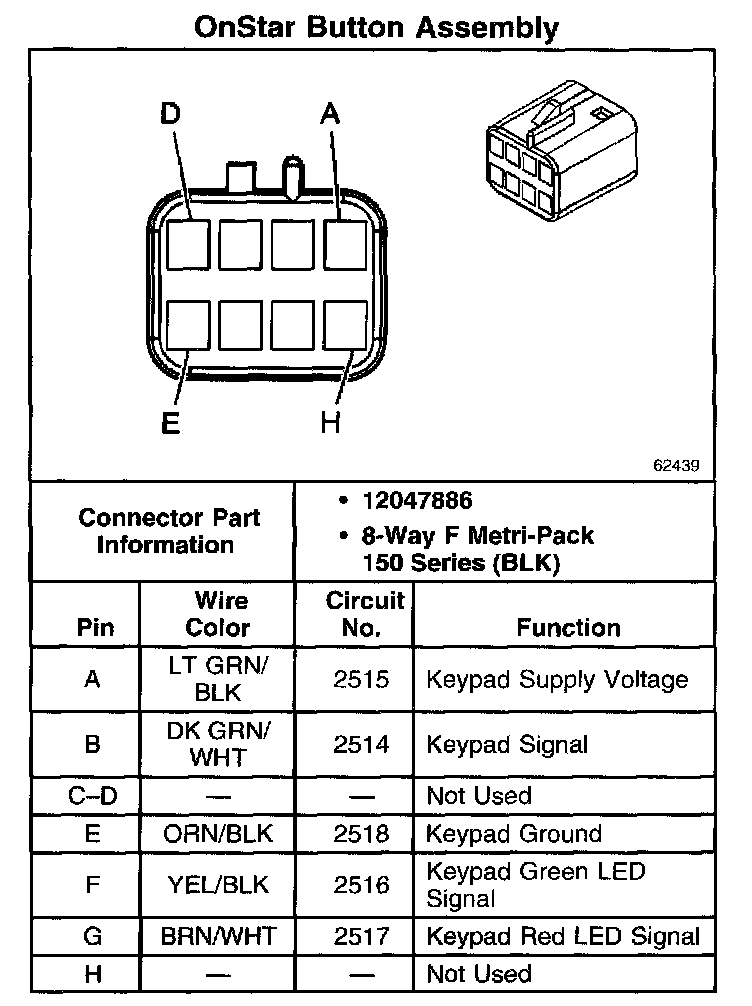

Onstar Button Assembly:

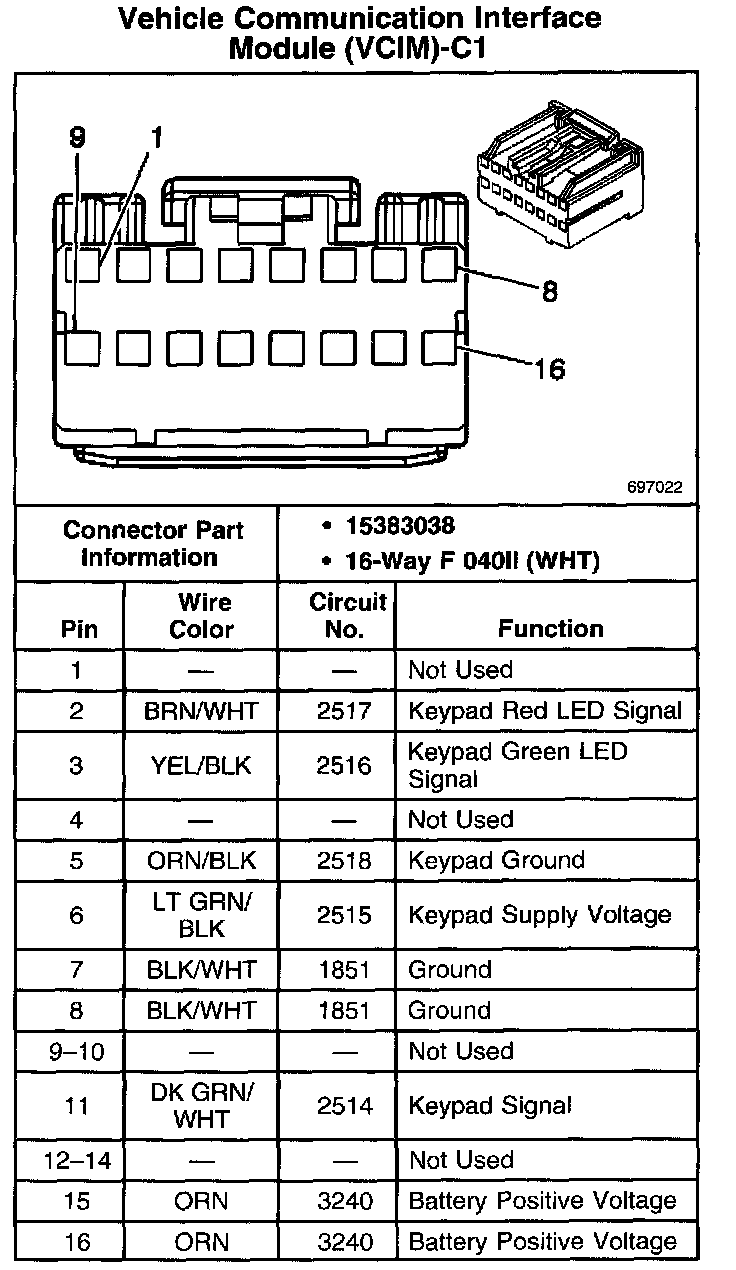

Vehicle Communication Interface Module (VCIM) - C1:

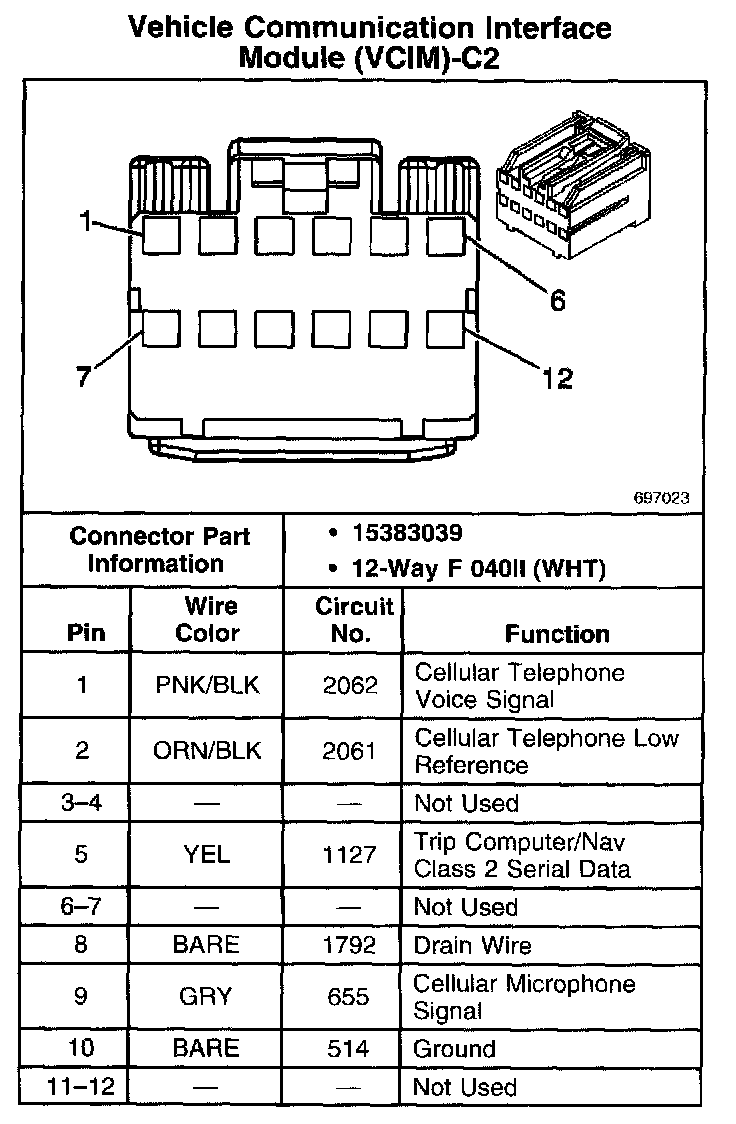

Vehicle Communication Interface Module (VCIM) - C2:
