Cabin Temperature Sensor / Switch
Cabin Temperature Sensor / Switch

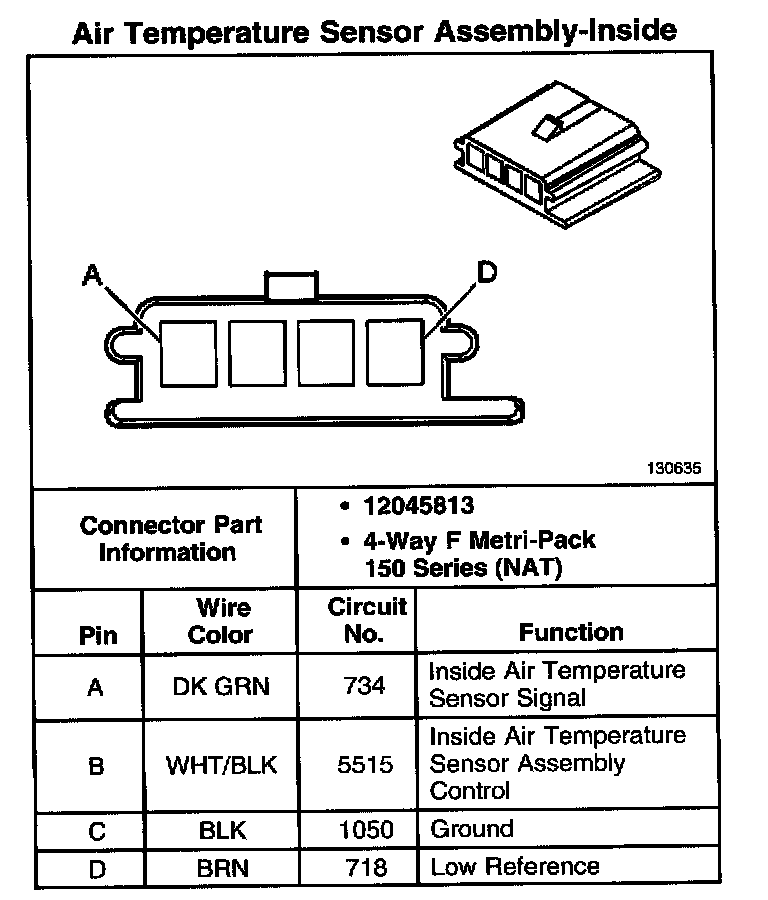

Air Temperature Sensor Assembly-Inside:
