Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) - C4

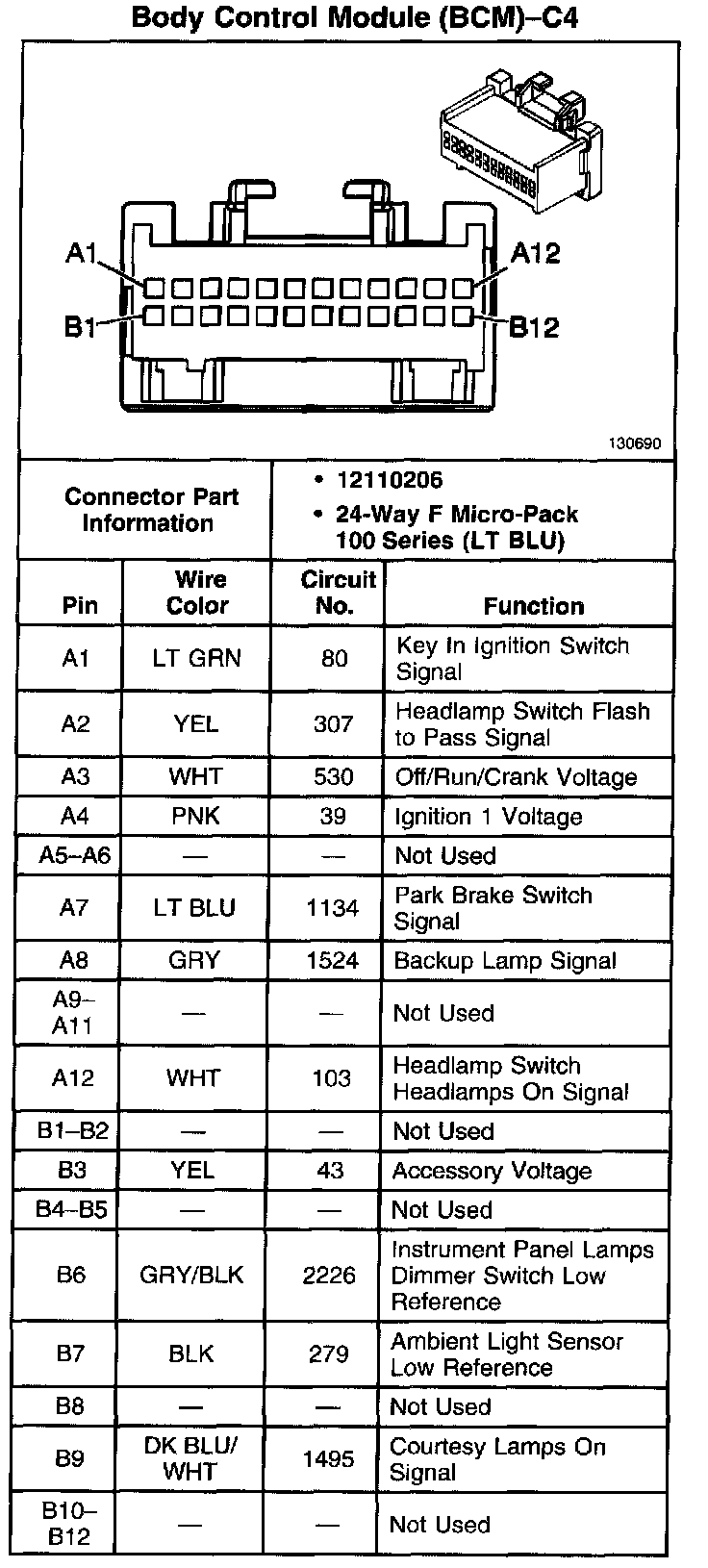

Body Control Module (BCM) - C4

Body Control Module (BCM) - C4:
