Maintenance Minder Code Definitions

Maintenance Minder
All the maintenance items displayed in the odometer/trip meter or the multi-information display are in code.

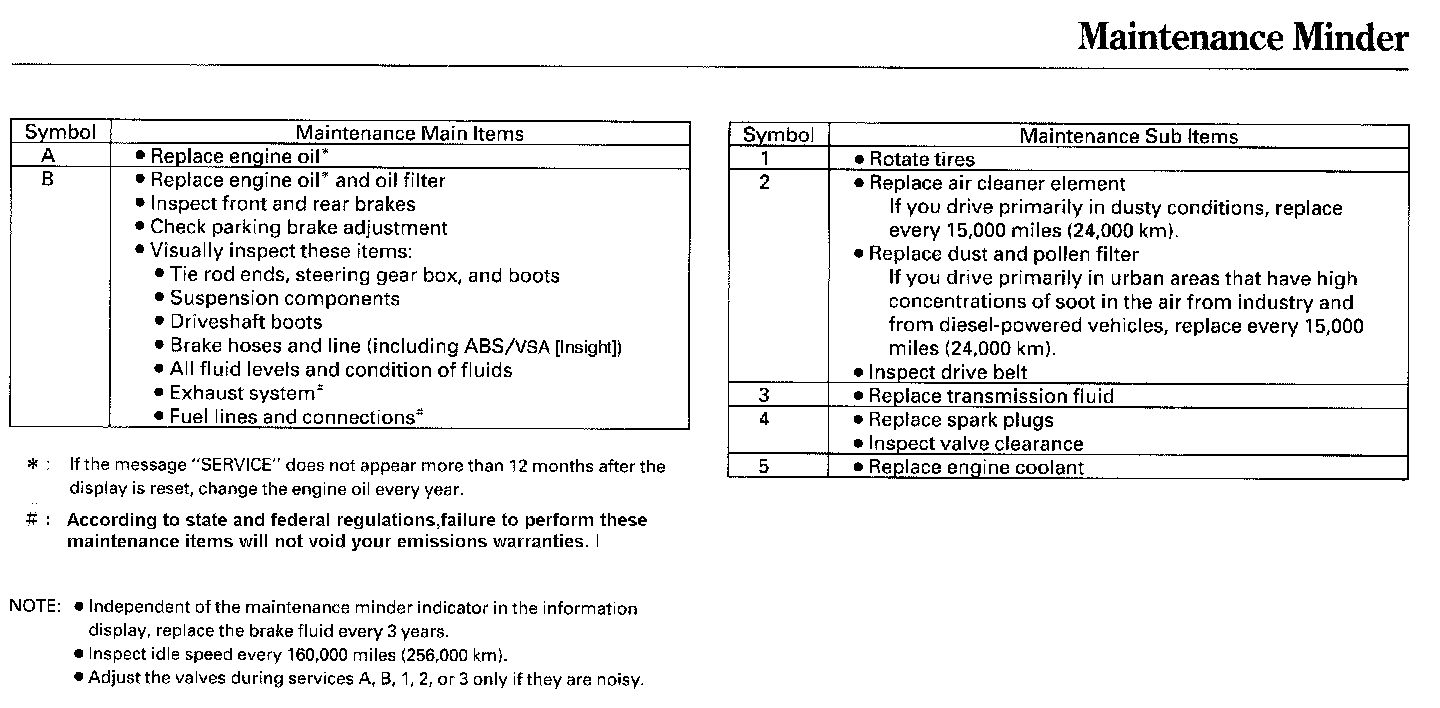

Refer to the above image for an explanation of maintenance codes and maintenance to be performed.
