Home >> Honda >> 2012 >> Fit L4-1.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Connecting Rod, Engine >> Connecting Rod Nut/Bolt Torque

Connecting Rod Nut/Bolt Torque




Torque the connecting rod bolts to 9.8 Nm (1.0 kg-m, 7 lb-ft).

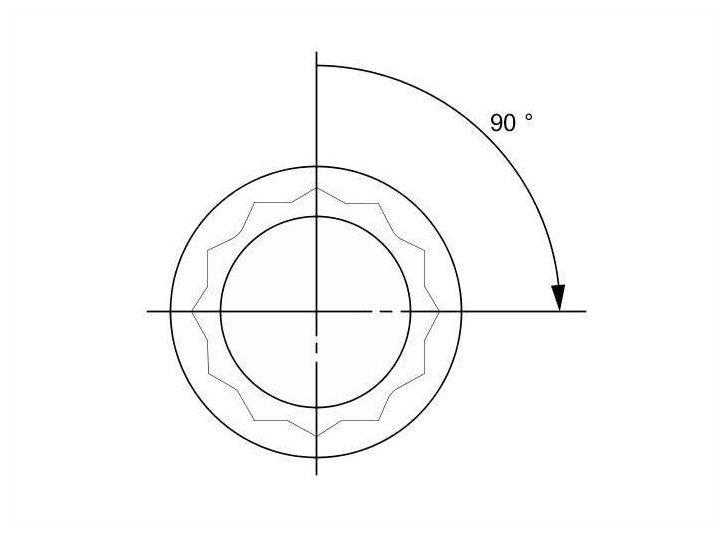

Tighten the connecting rod bolts an additional 90 °
