Transmission Control Systems: Locations

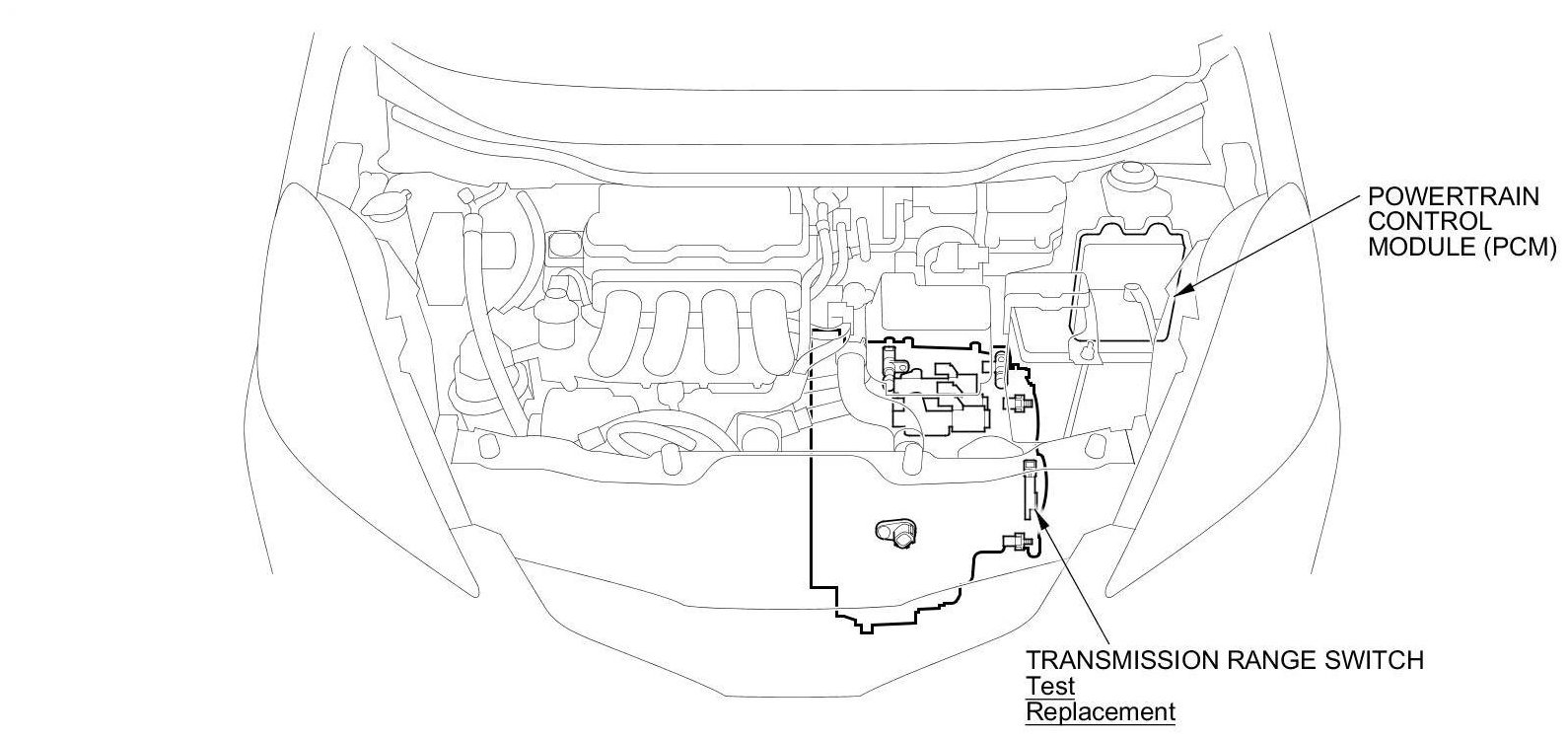

A/T Gear Position Indicator Component Location Index

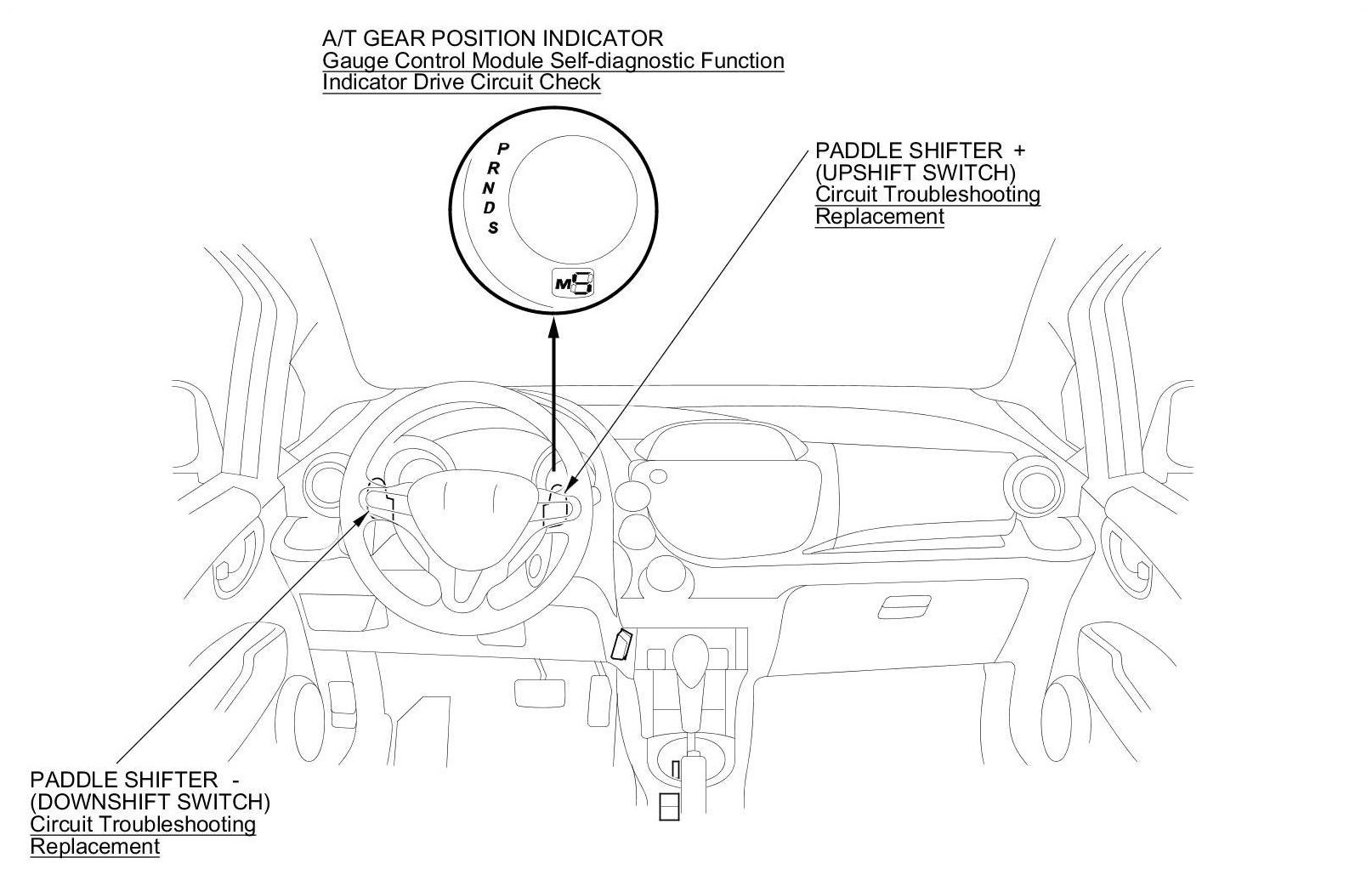

Seven-position Transmission

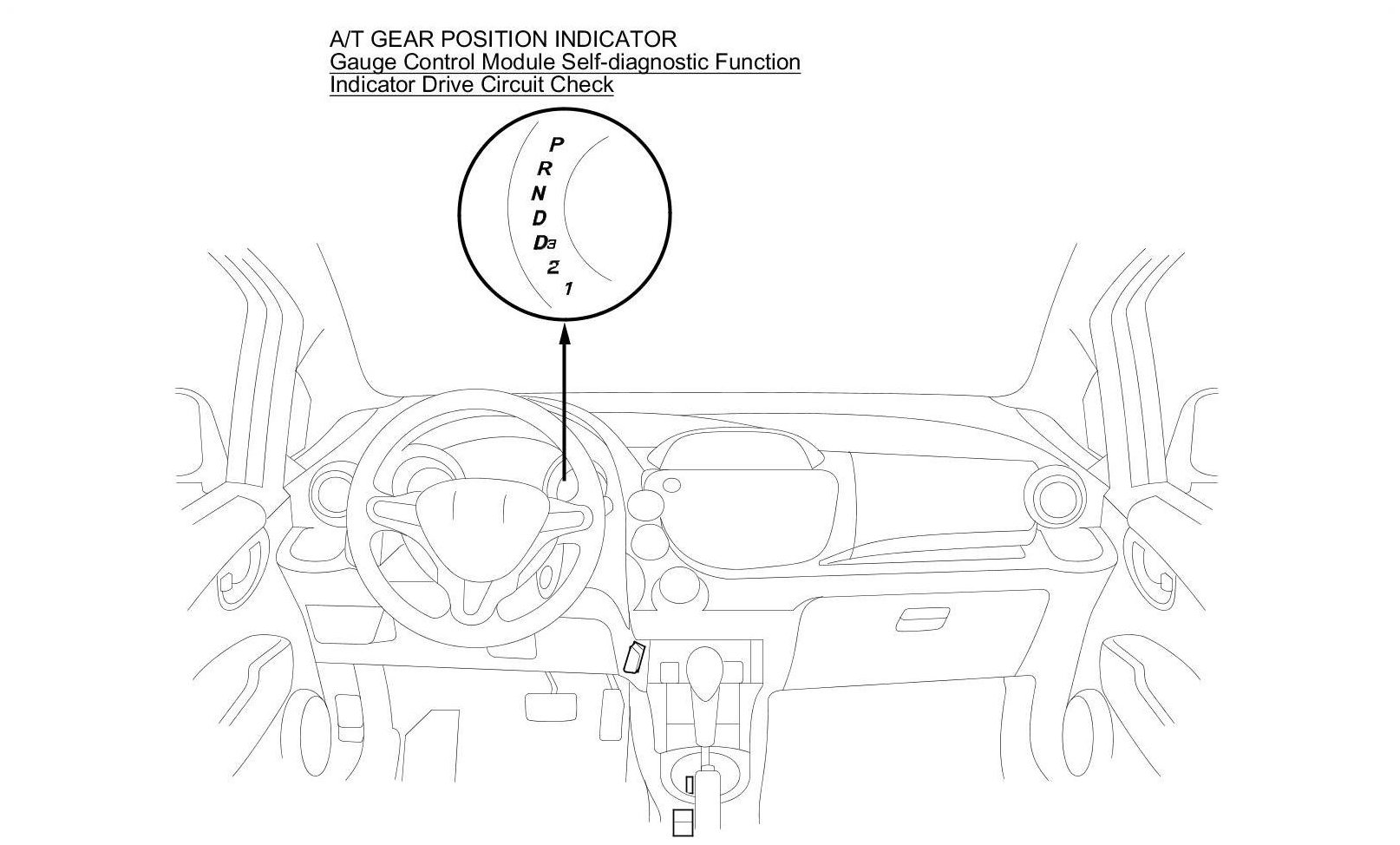

Five-position Transmission
