Power Window Switch
>>

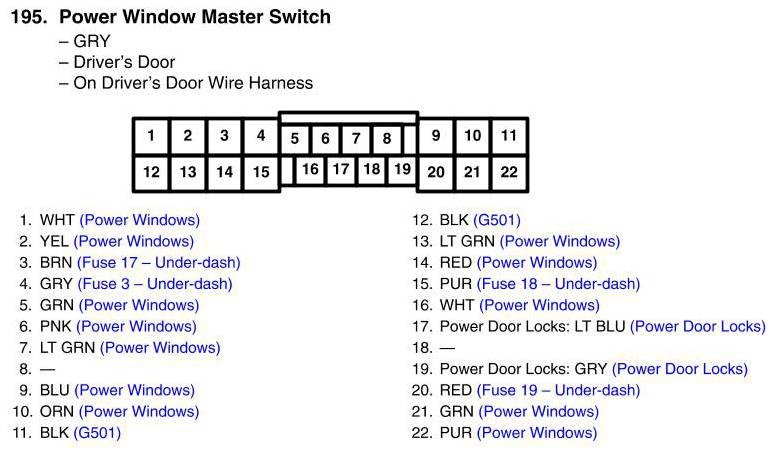

Power Window Master Switch Connector View
Power Window Master Switch Connector View
