Connecting Rod, Engine

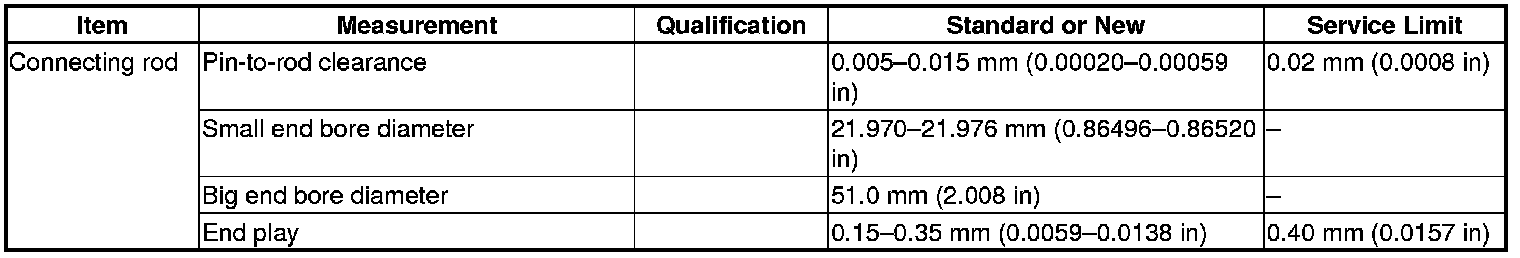

Connecting rod
Connecting rod
Connecting rod bolts
Step 1
41 Nm (4.2 kg-m, 30 lb-ft)
Step 2
additional 120 °
