Oil Pan, Engine

Oil Pan

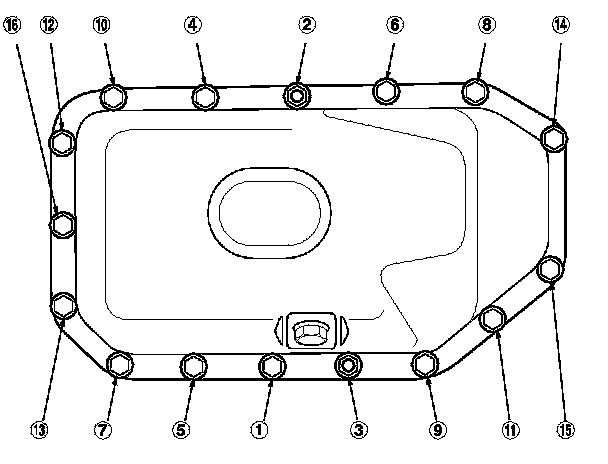

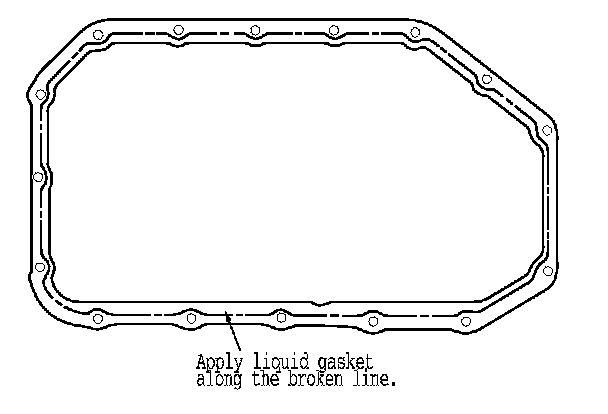

Tighten the bolts/nuts in three steps. In the final step, tighten all bolts, in sequence, to 12 N-m (1.2 kgf-m, 8.7 lbf-ft). Wipe off the excess liquid gasket on each side of the crankshaft pulley and the flywheel/drive plate.

NOTE: Wait at least 30 minutes before filling the engine with oil.
Do not run the engine for at least 3 hours after installing the oil pan.
