Electronic Throttle Control Module: Service and Repair

Throttle Actuator Control Module Replacement

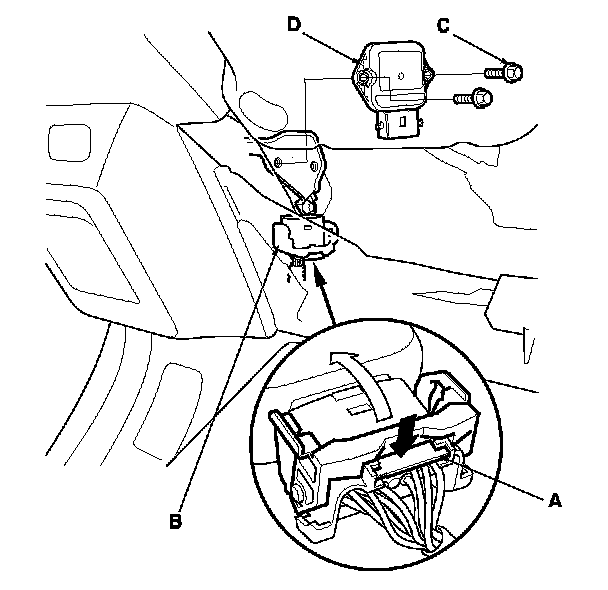

1. Push the tab (A), and disconnect the throttle actuator control module 16P connector (B).

2. Remove the bolts (C), and the throttle actuator control module (D).

3. Install the parts in the reverse order of removal.
