Engine Control Module: Locations

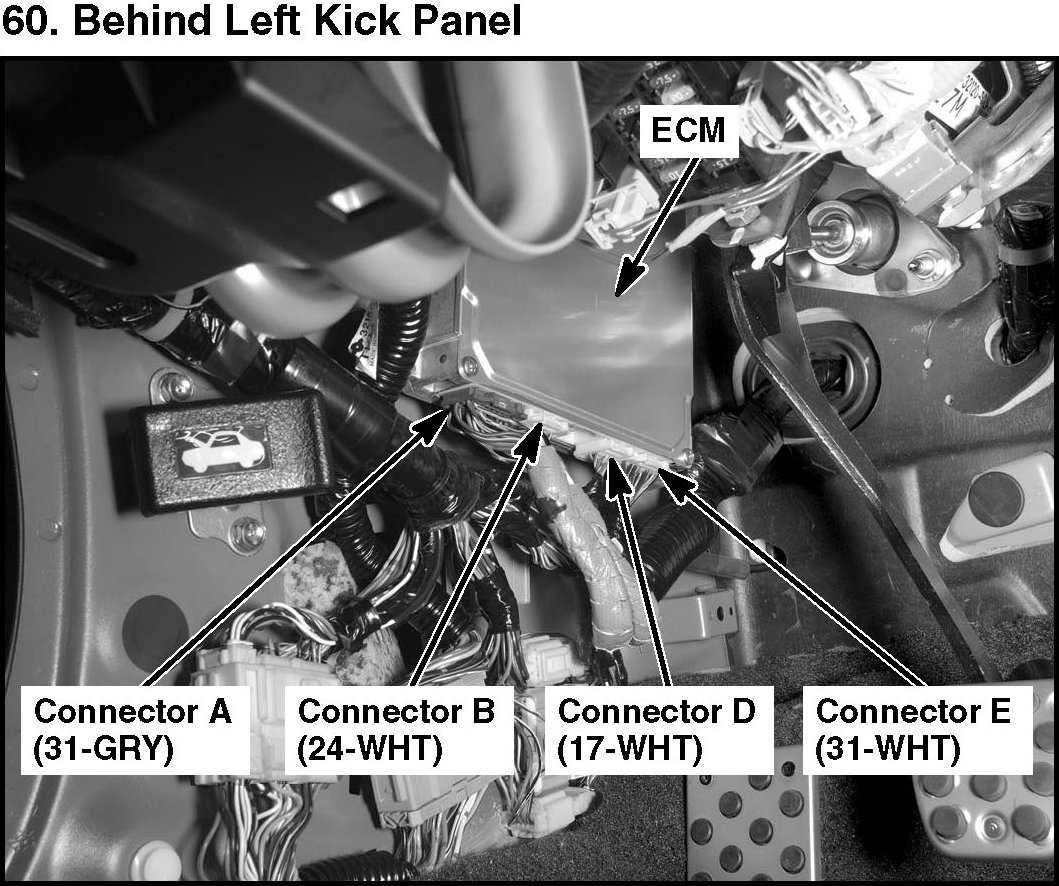

60. Behind Left Kick Panel:

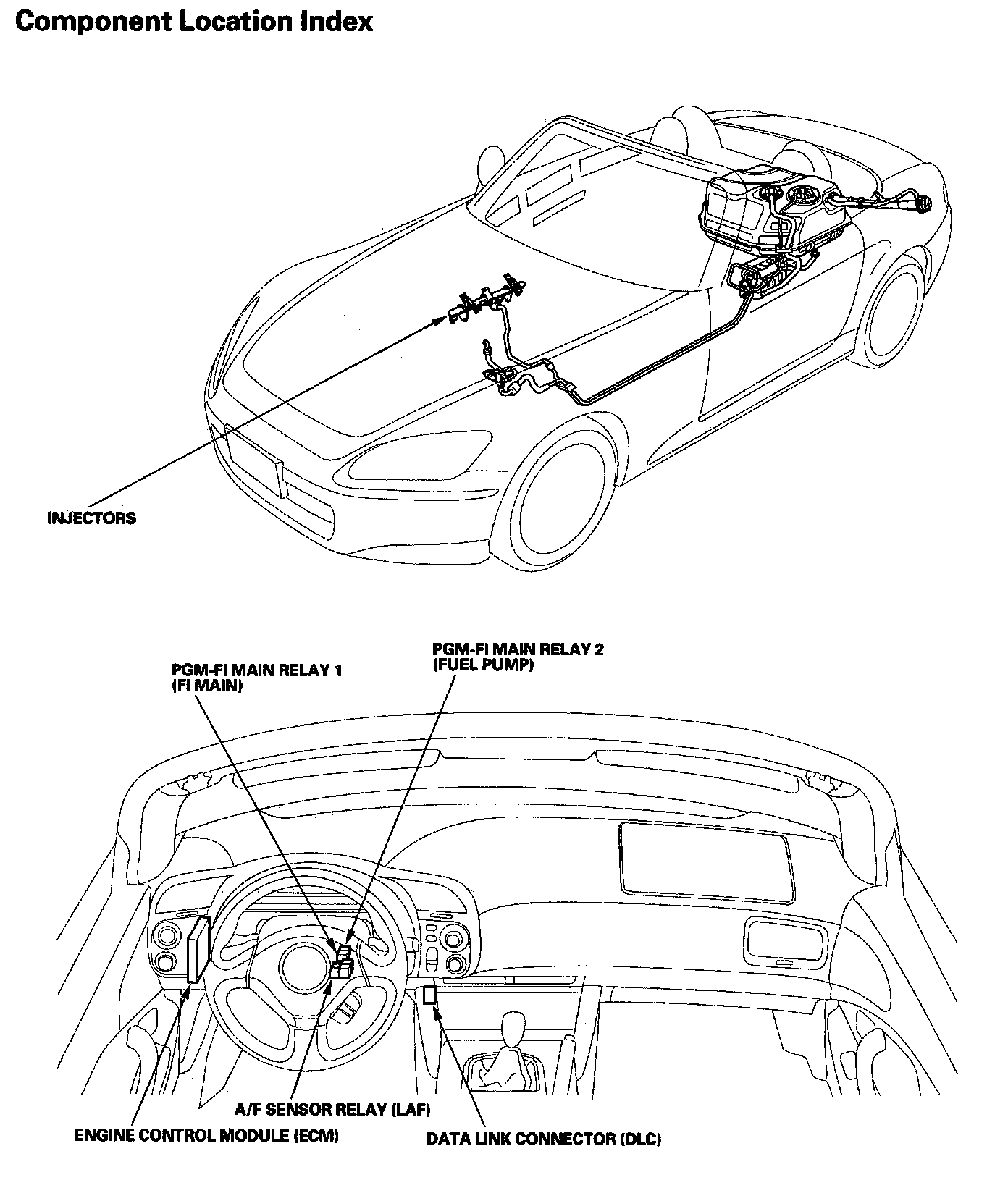

PGM-FI System Component Location Index:

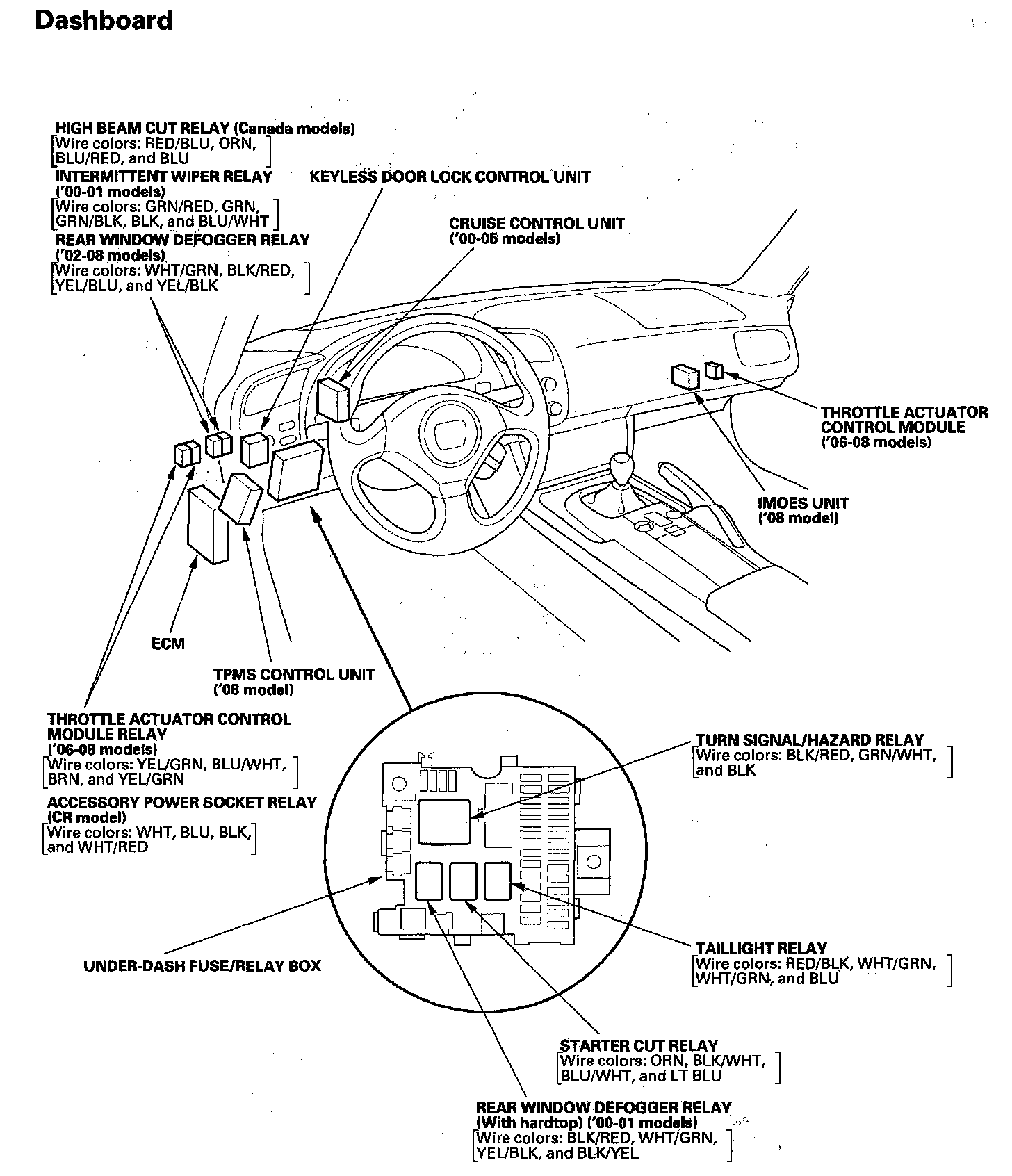

Relay And Control Unit Locations Dashboard:
