Power Window Switch
Power Window Switch

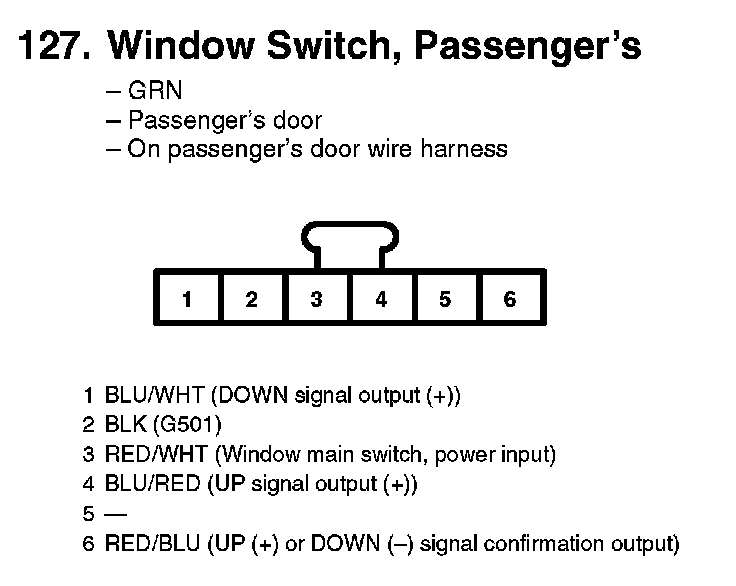

127. Window Switch, Passenger's:

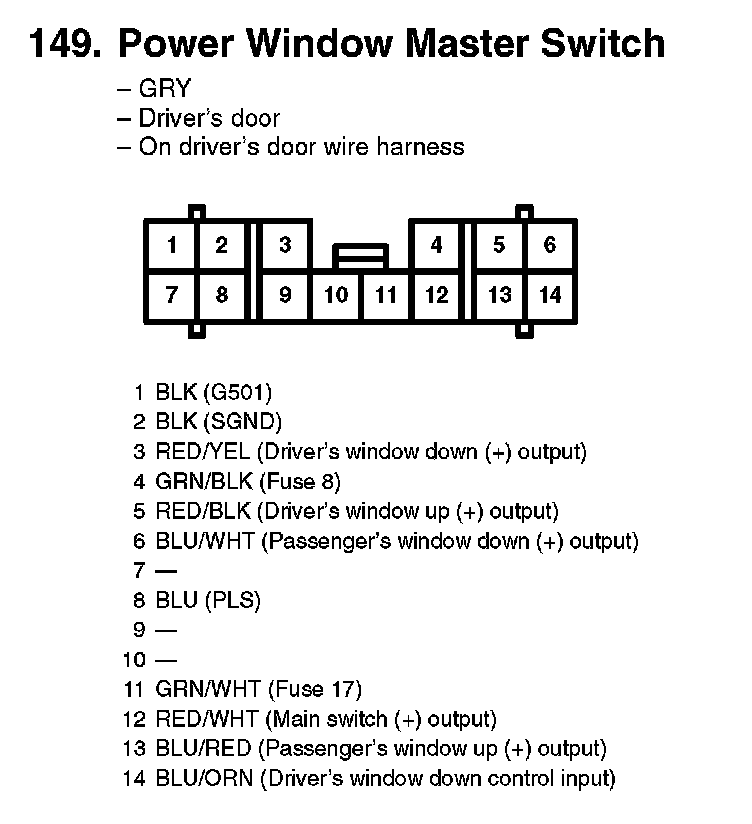

149. Power Window Master Switch:
