Home >> Honda >> 2007 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor

Power Window Motor

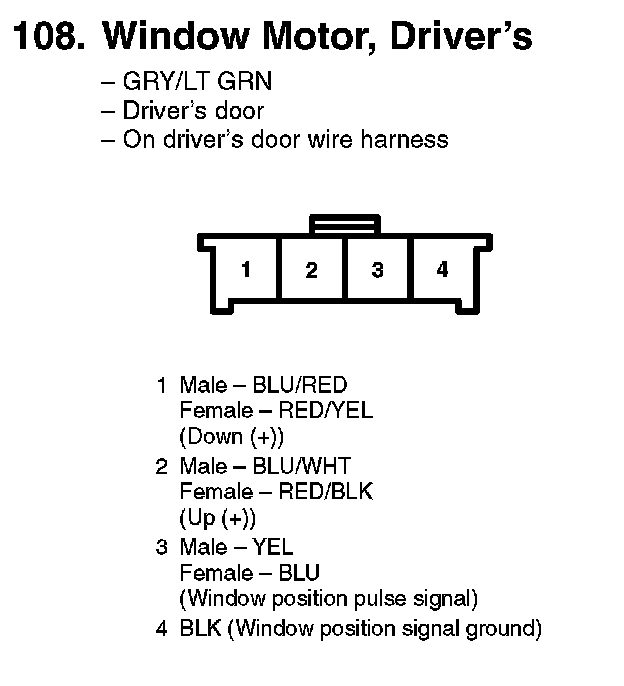

108. Window Motor, Driver's:

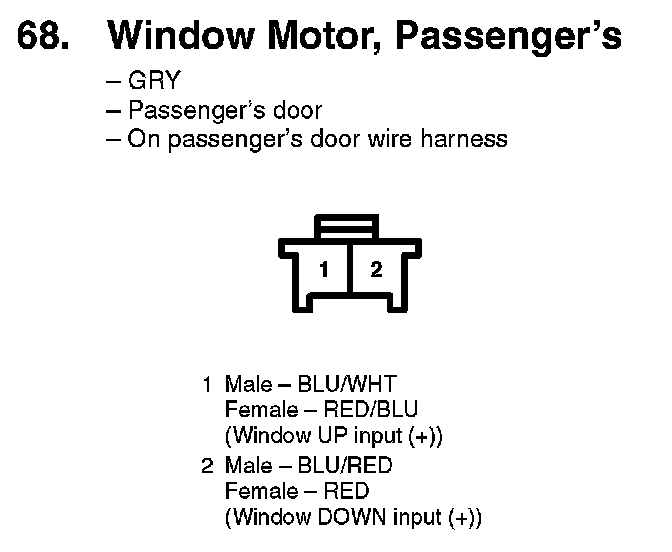

68. Window Motor, Passenger's:
