Multiple Junction Connector
Multiple Junction Connector

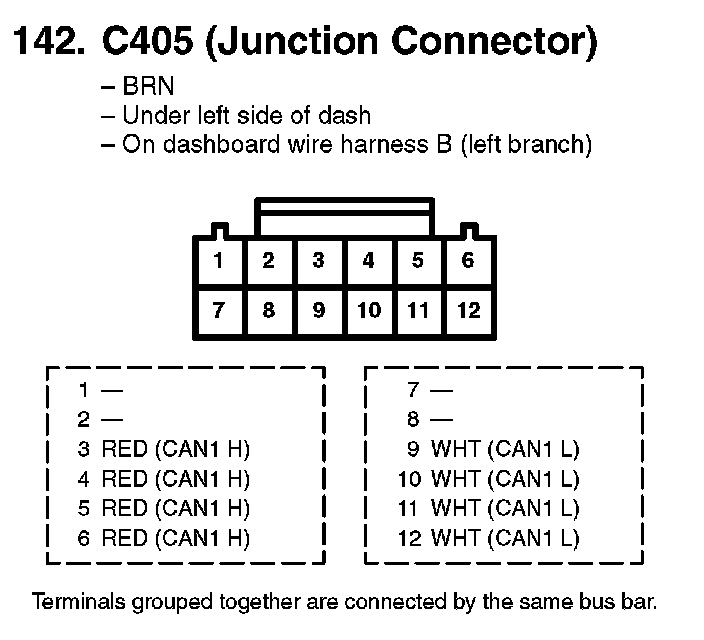

142. C405 (Junction Connector):

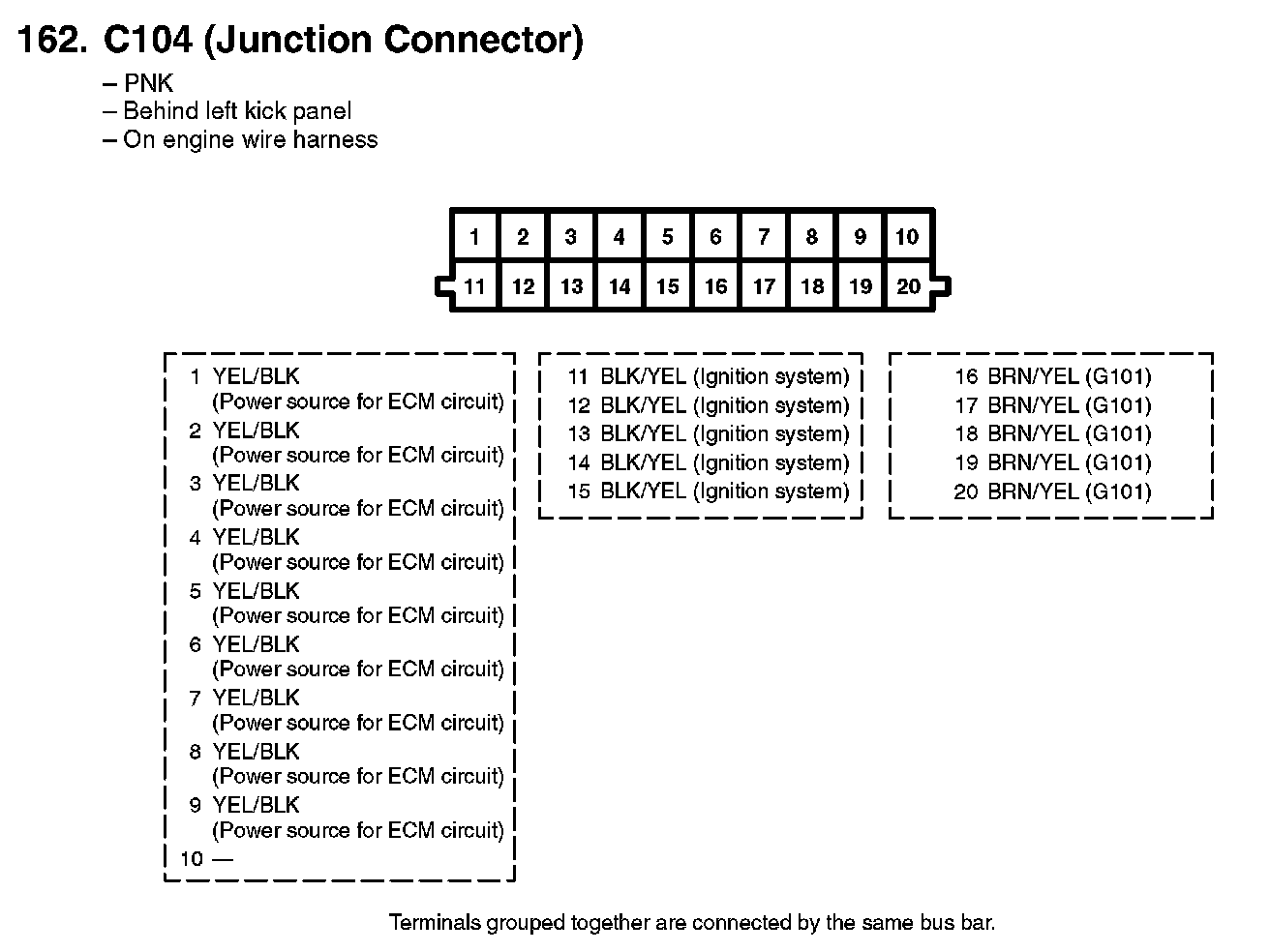

162. C104 (Junction Connector):
