Daytime Running Lamp Control Unit
Daytime Running Lamp Control Unit

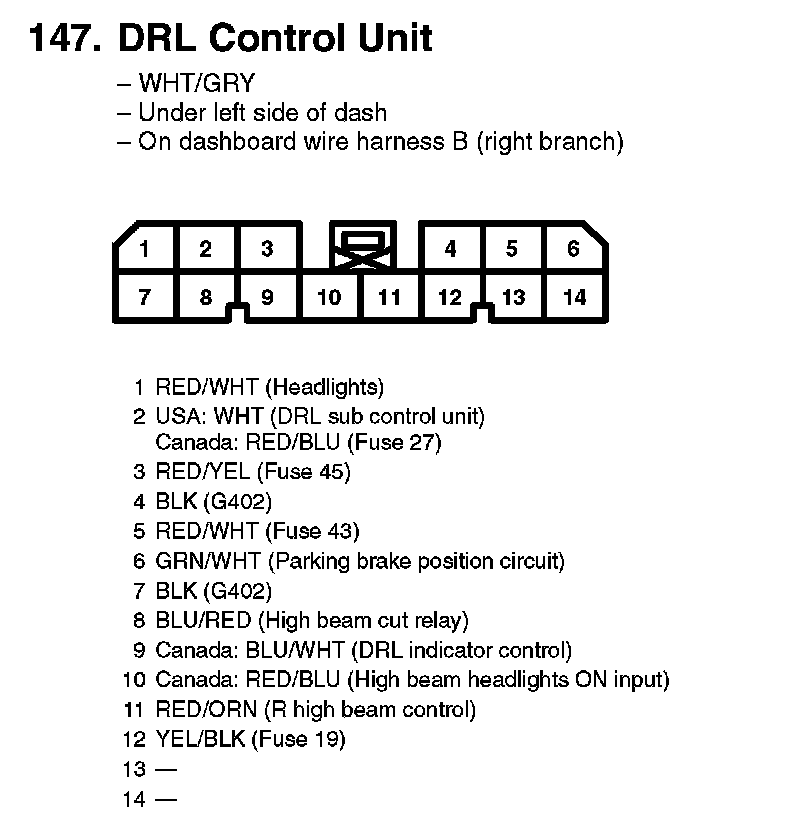

147. DRL Control Unit:

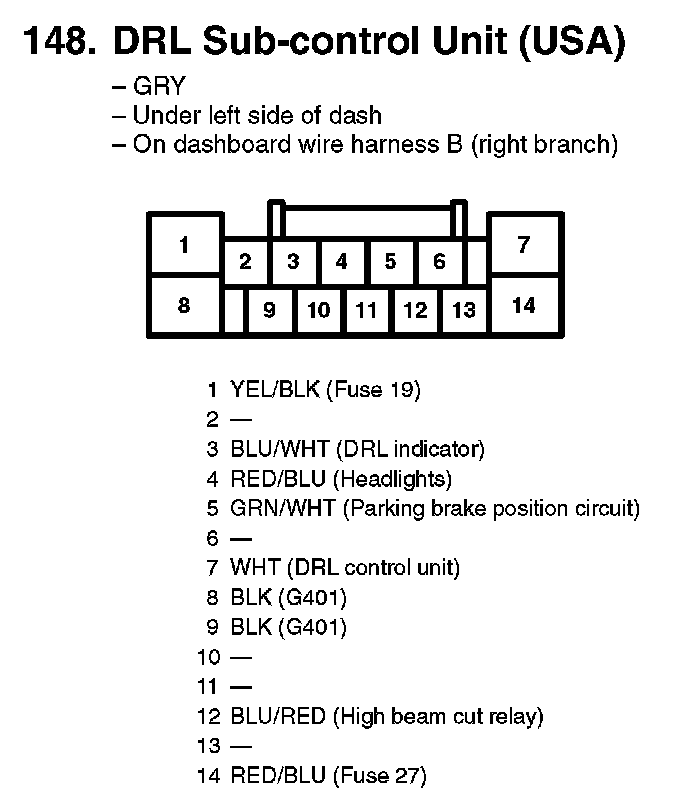

148. DRL Sub-control Unit (USA):
