Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

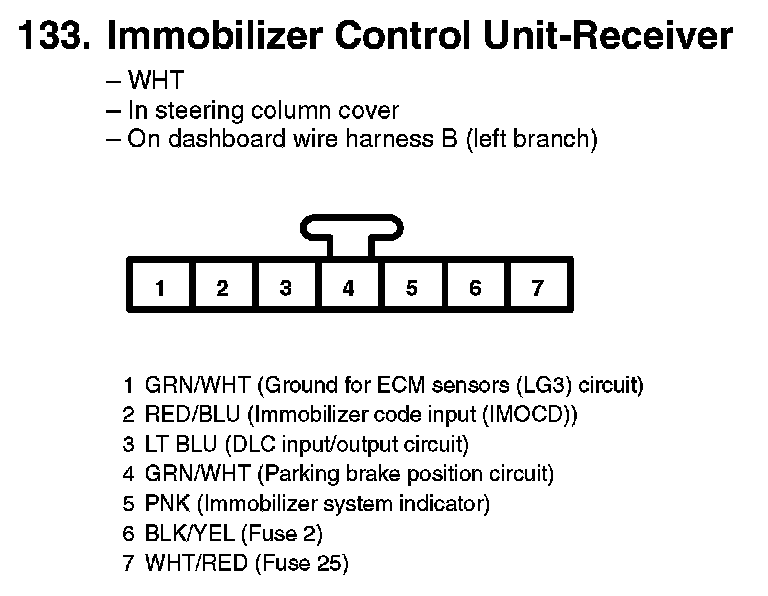

133. Immobilizer Control Unit-Receiver:

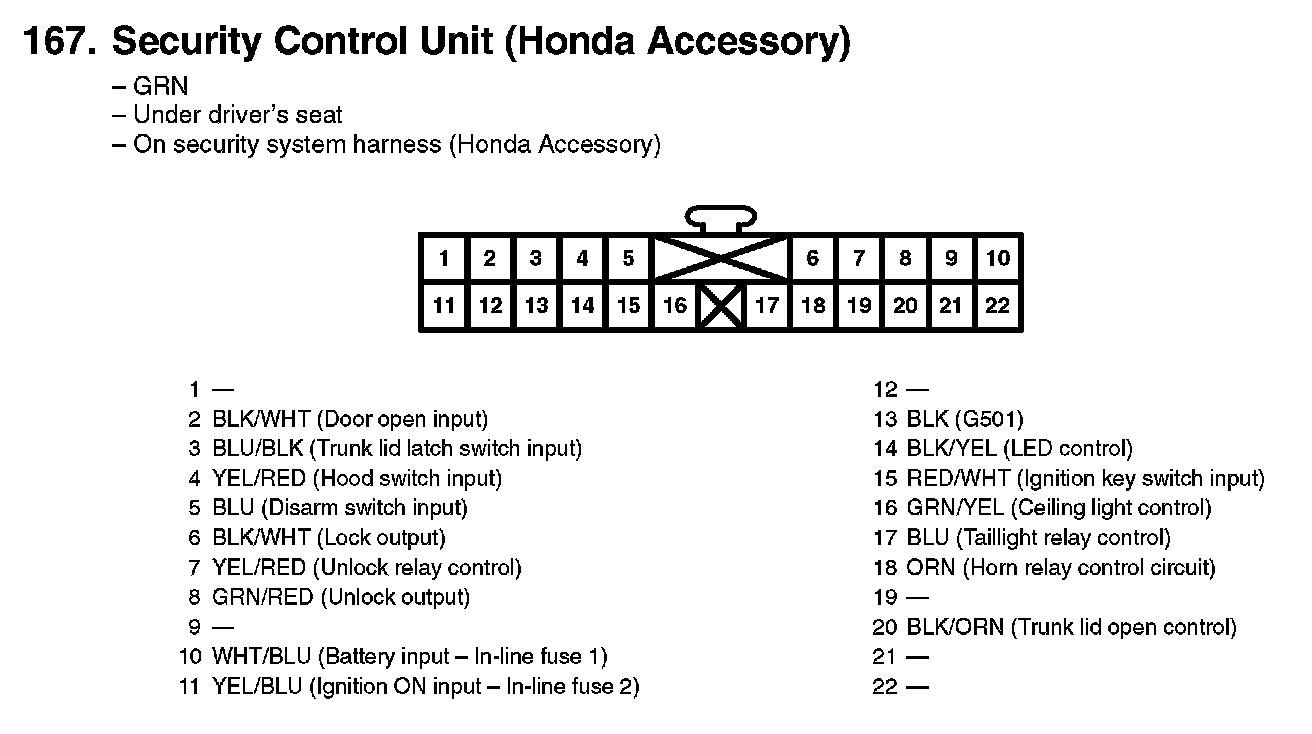

167. Security Control Unit (Honda Accessory):
