Home >> Honda >> 2007 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

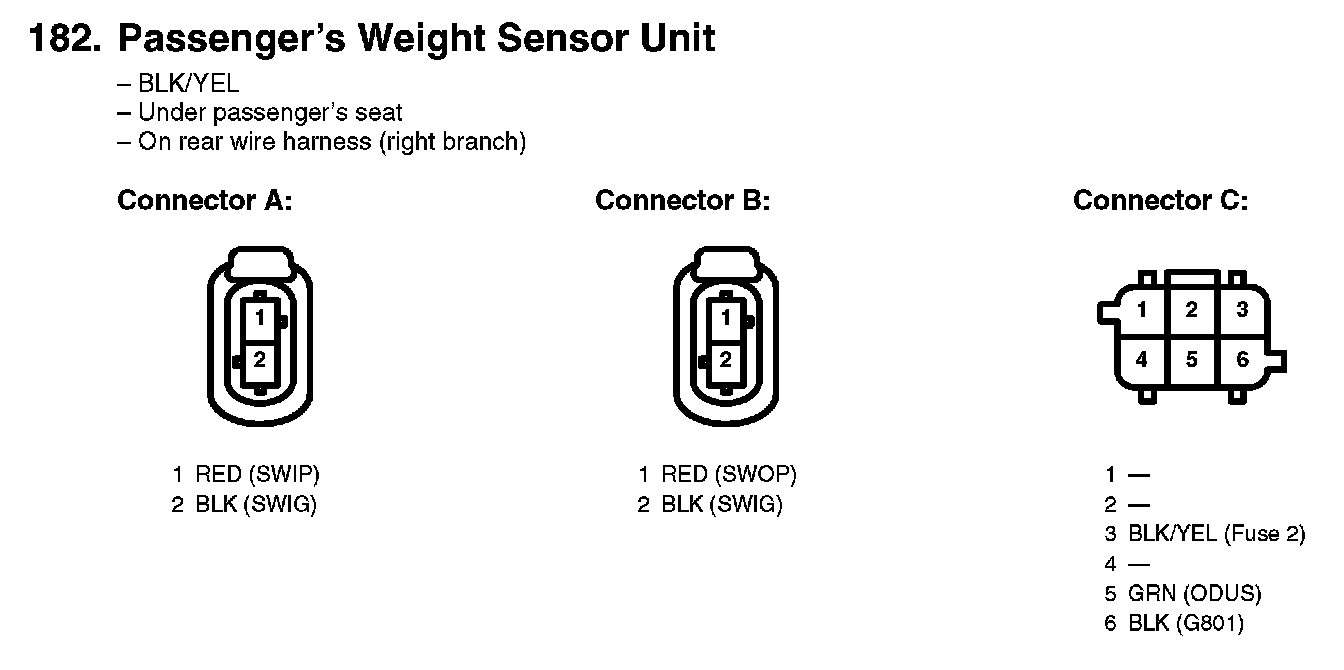

182. Passenger's Weight Sensor Unit:

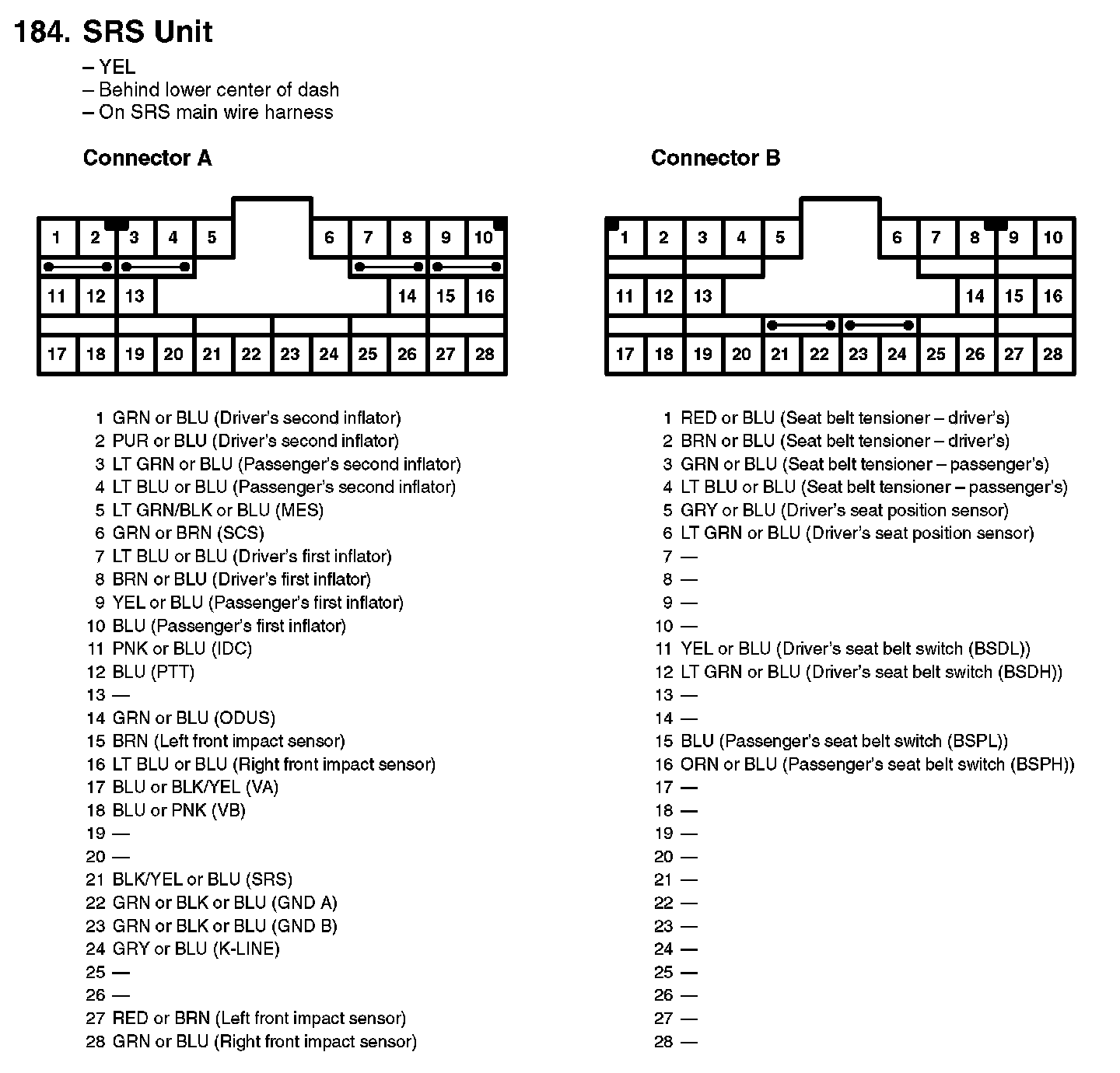

184. SRS Unit:
