Home >> Honda >> 2007 >> S2000 L4-2.2L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Starting System >> Diagrams

Keyless Starting System: Diagrams

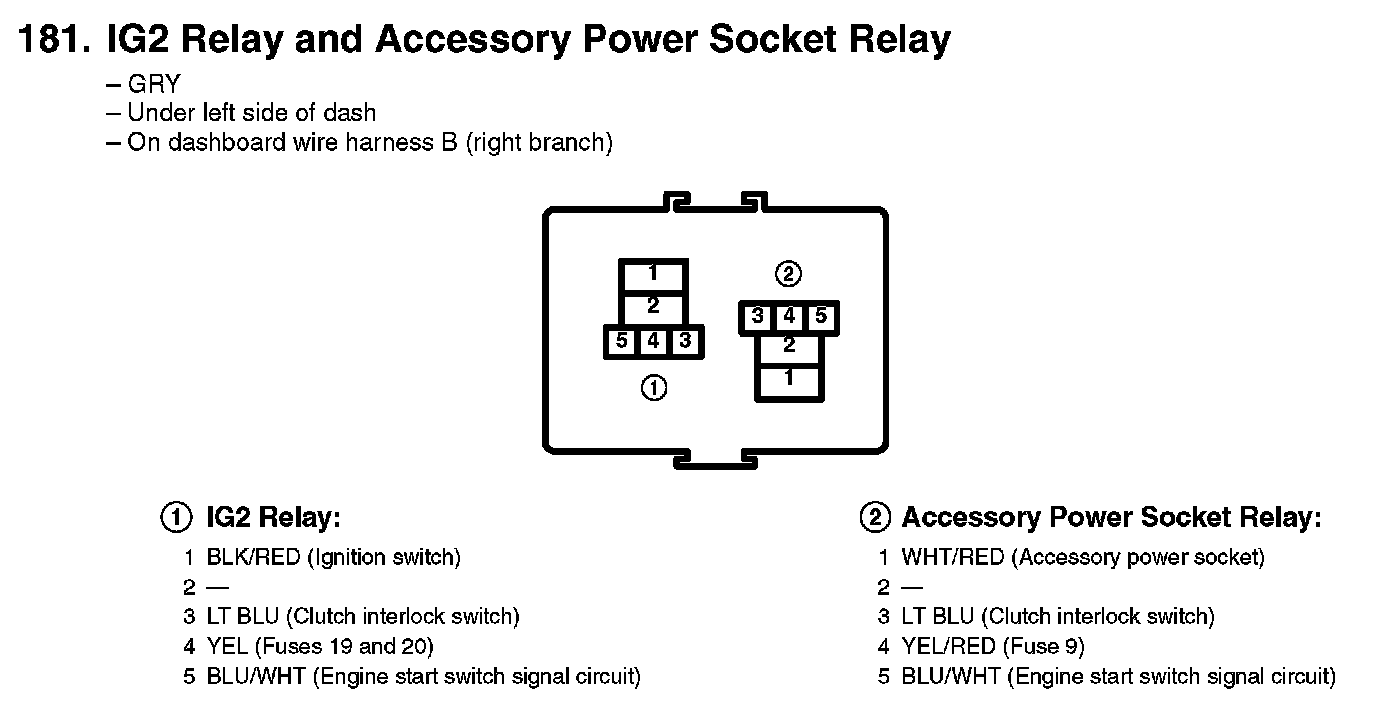

181. IG2 Relay And Accessory Power Socket Relay:
