Home >> Honda >> 2007 >> Ridgeline V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Locations

Ignition System: Locations

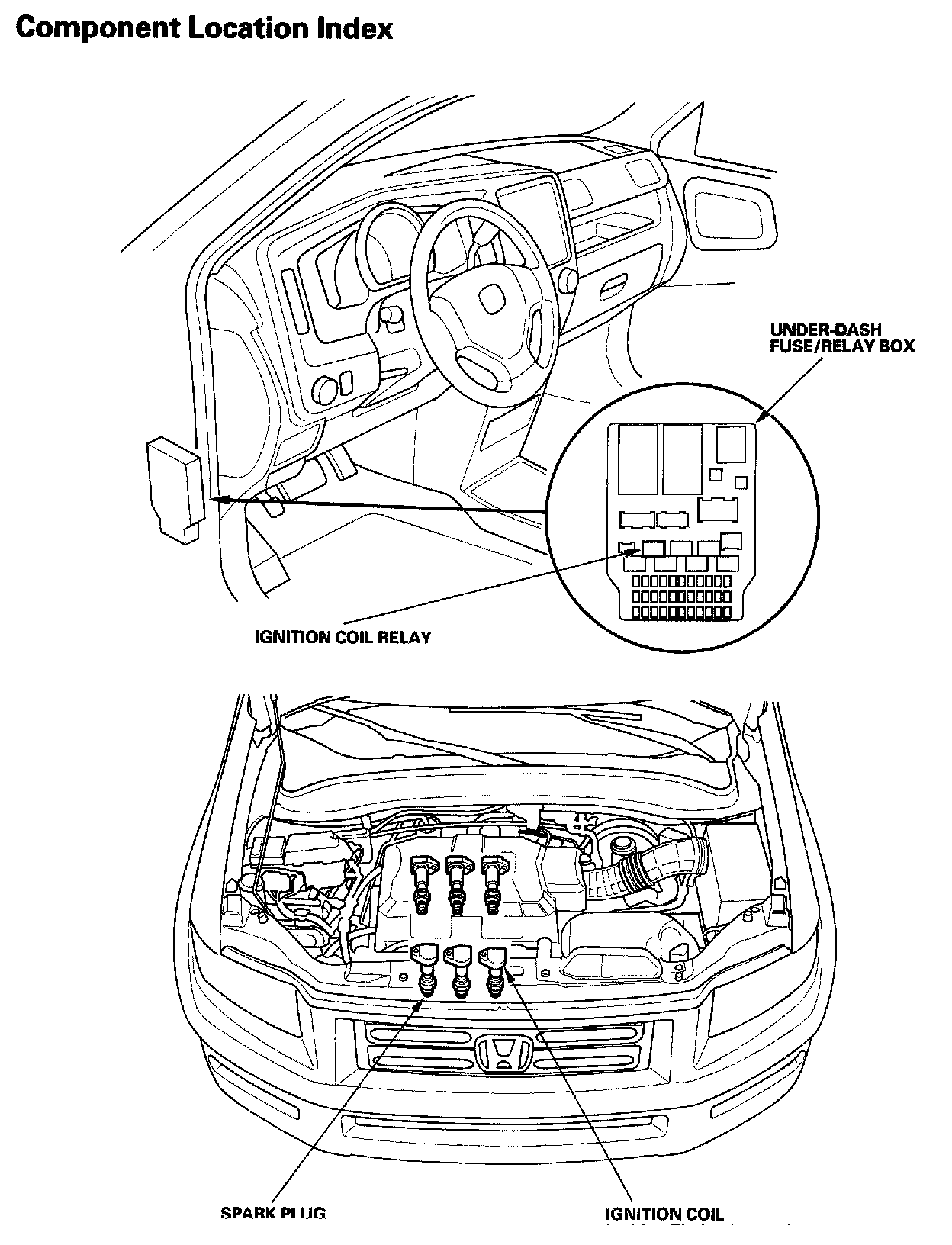

Ignition System Component Location Index:

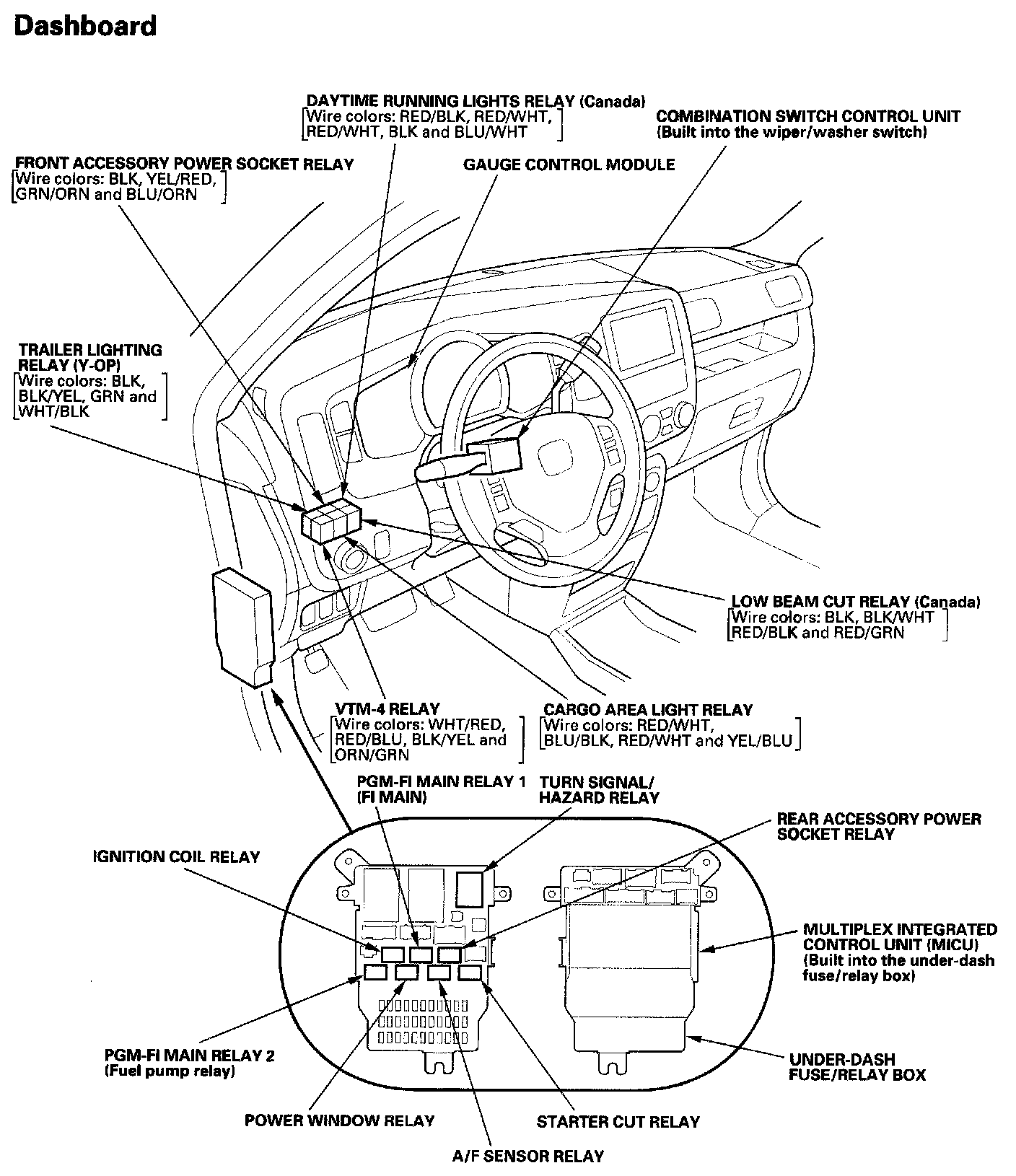

Relay And Control Unit Locations Dashboard:
