Home >> Honda >> 2007 >> Ridgeline V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

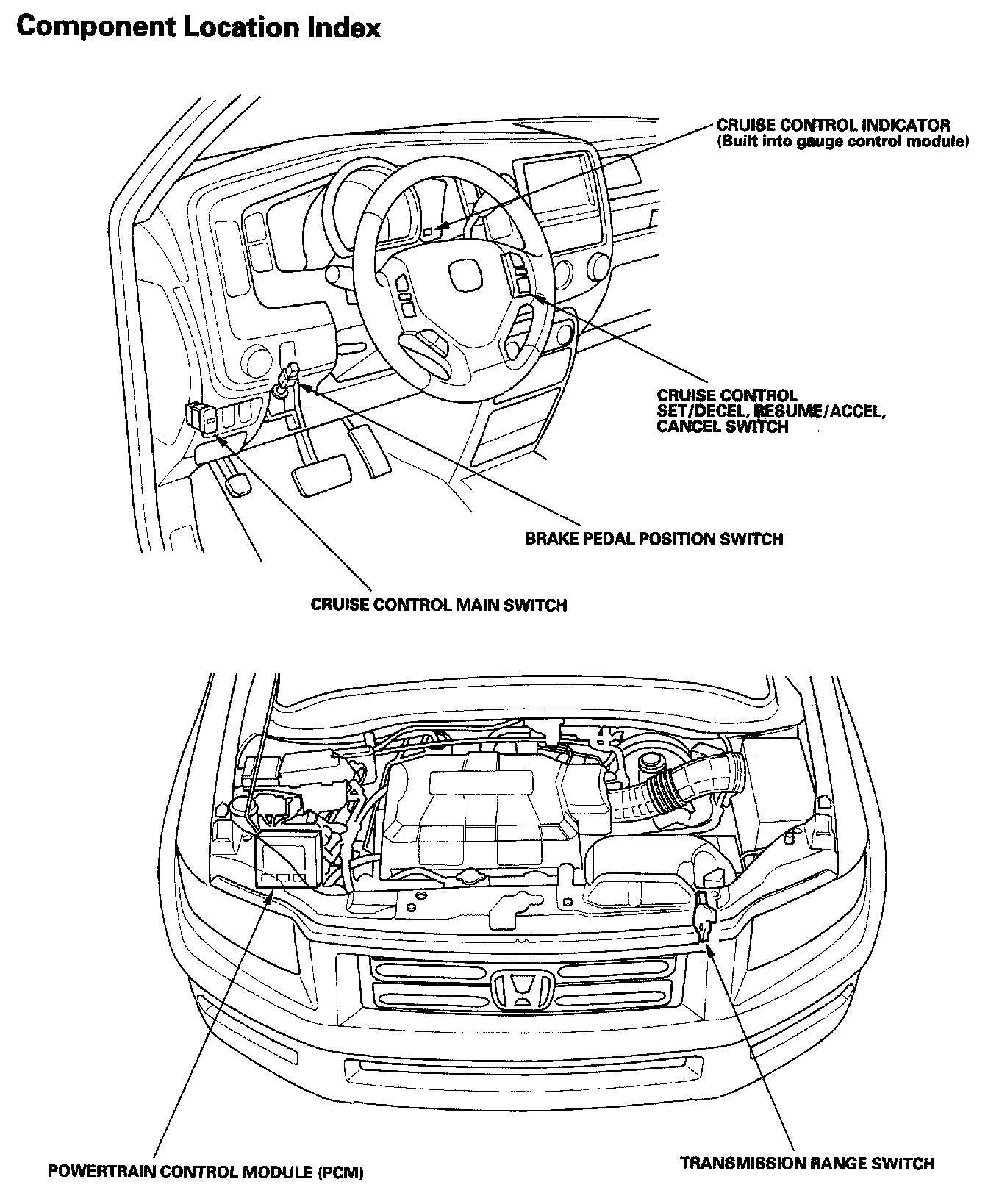

Cruise Control Component Location Index:

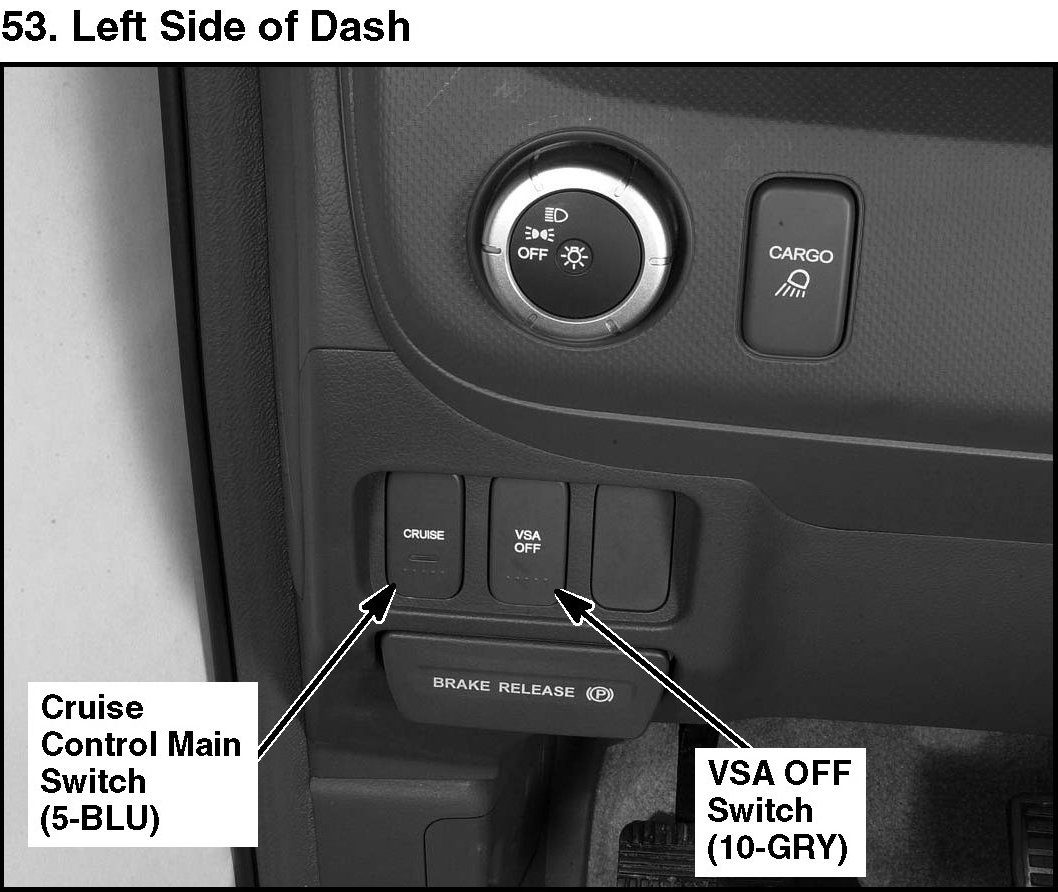

53. Left Side Of Dash:

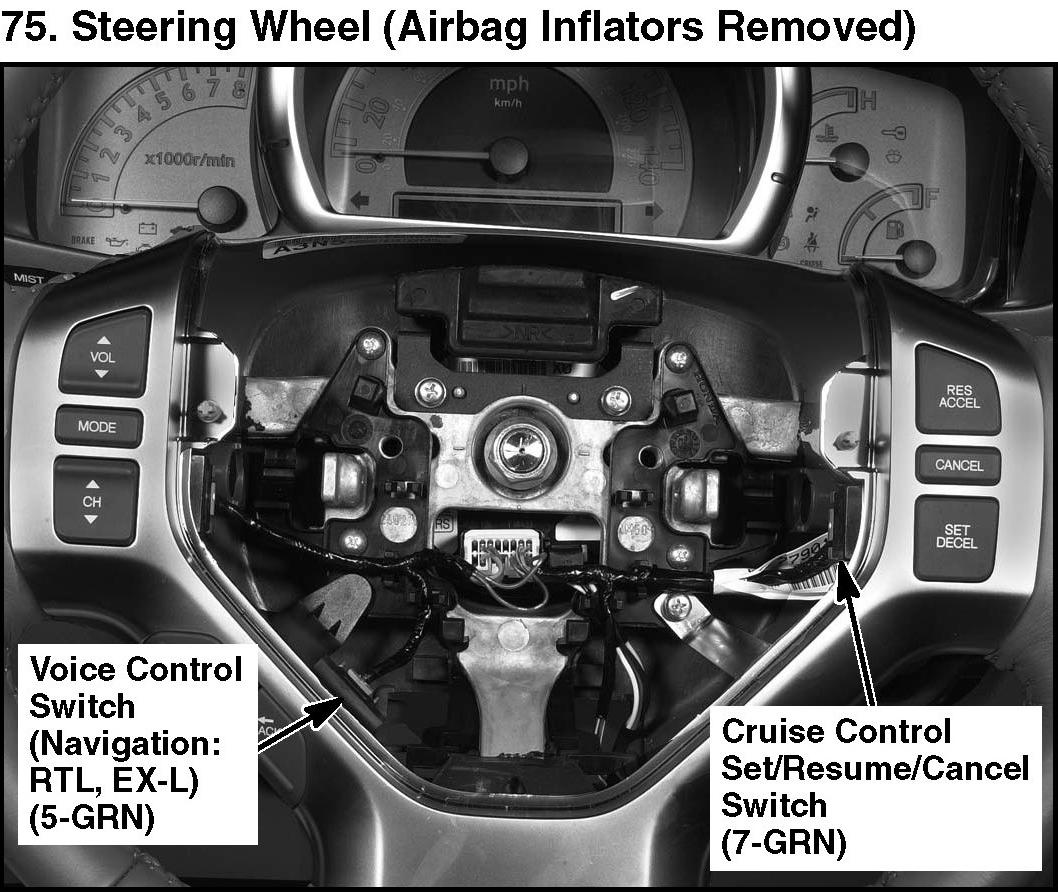

75. Steering Wheel (Airbag Inflators Removed):
