Trailer Lighting Module
Trailer Lighting Module

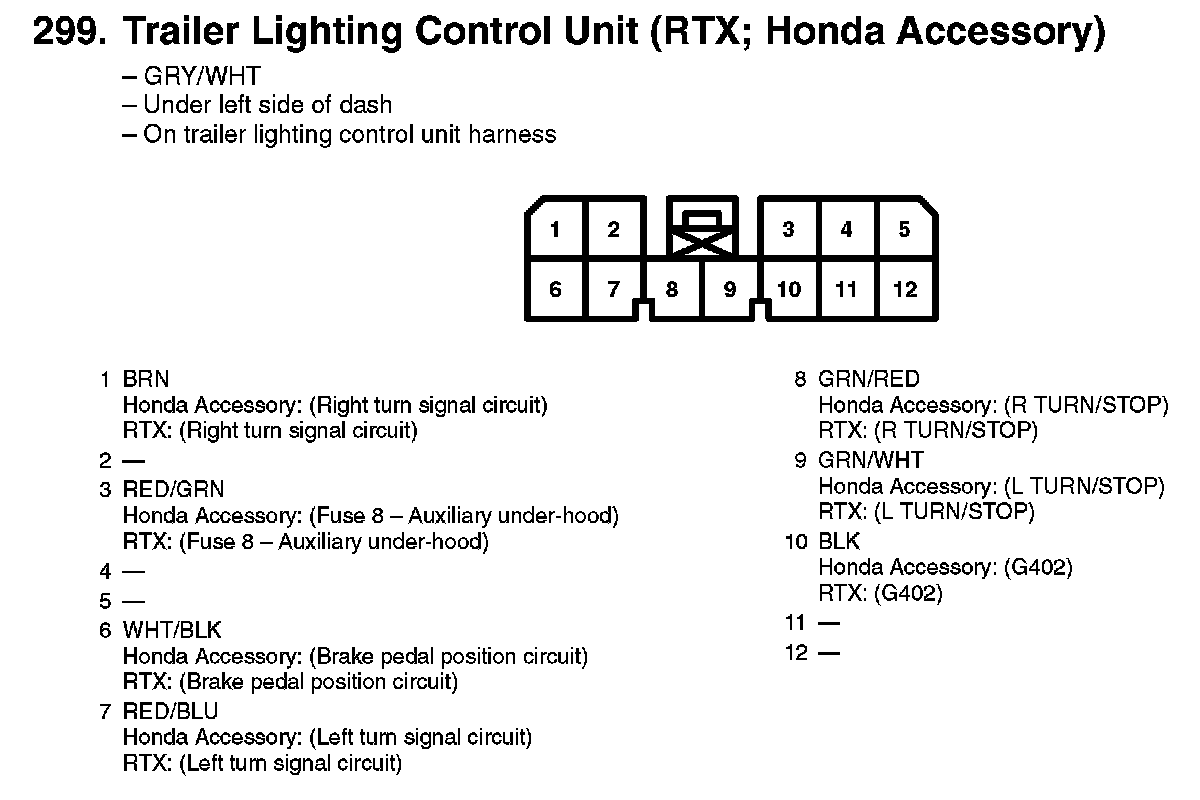

299. Trailer Lighting Control Unit (RTX; Honda Accessory):
