Relay Box

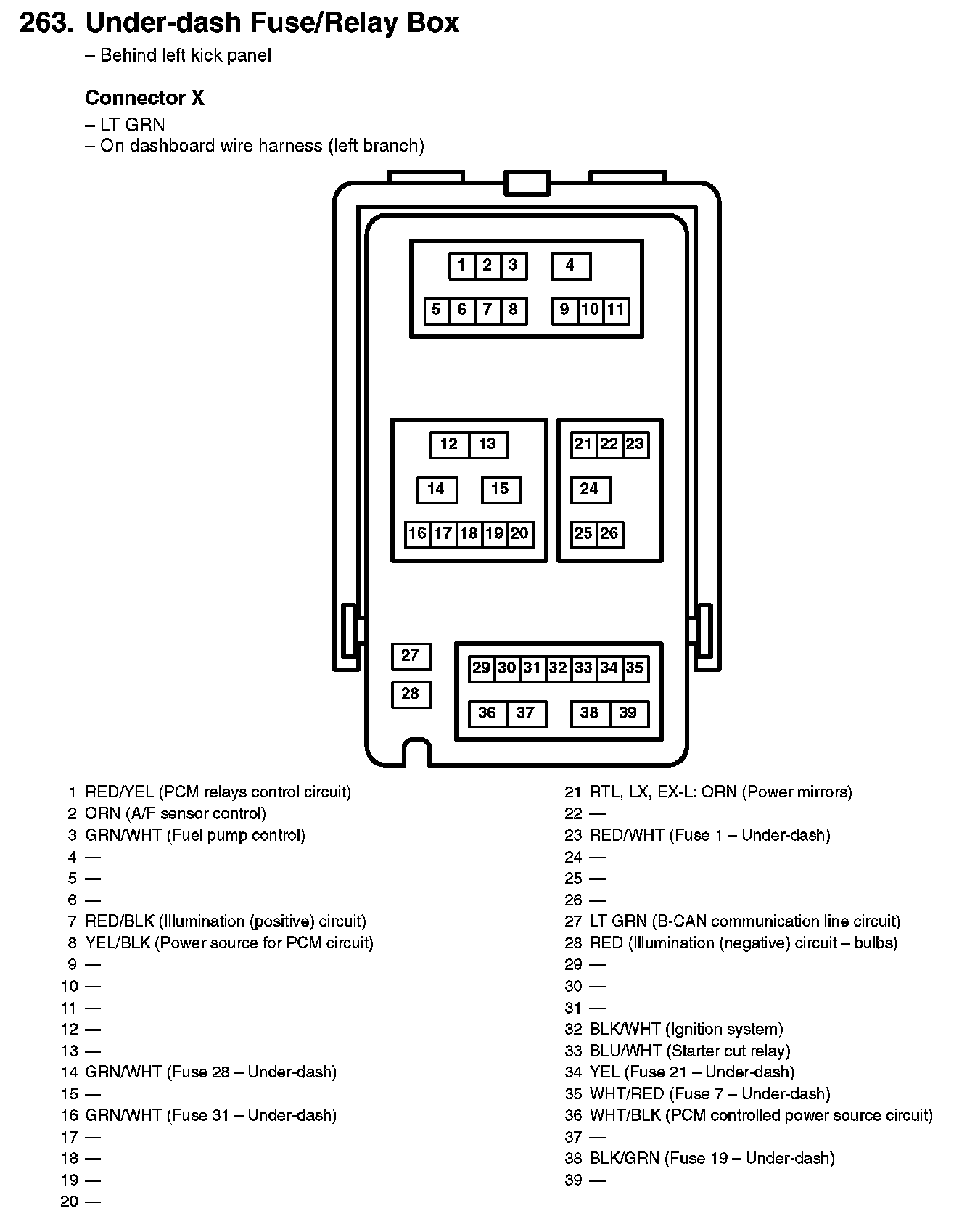

263. Under-dash Fuse/Relay Box:

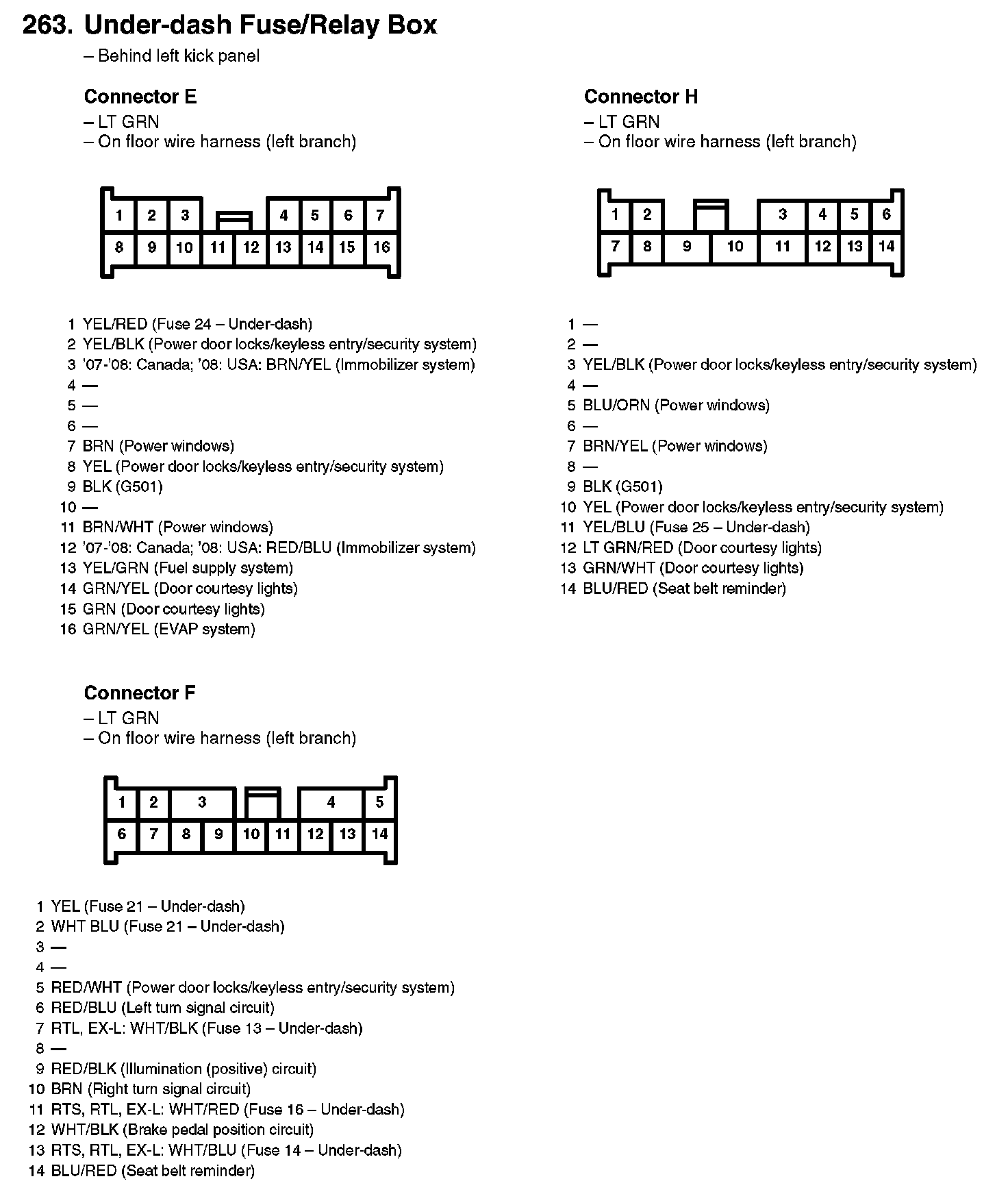

263. Under-dash Fuse/Relay Box:

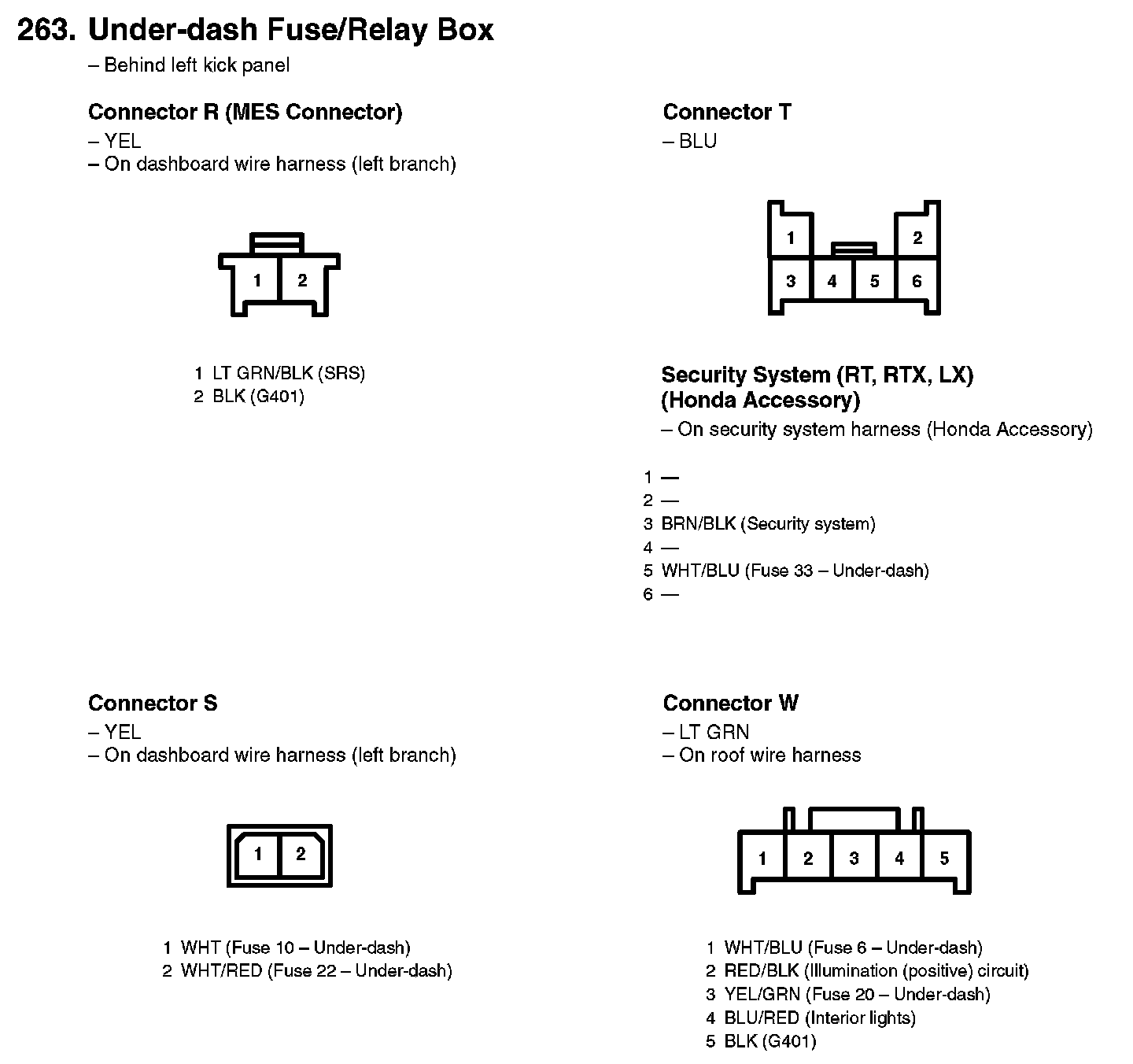

263. Under-dash Fuse/Relay Box:

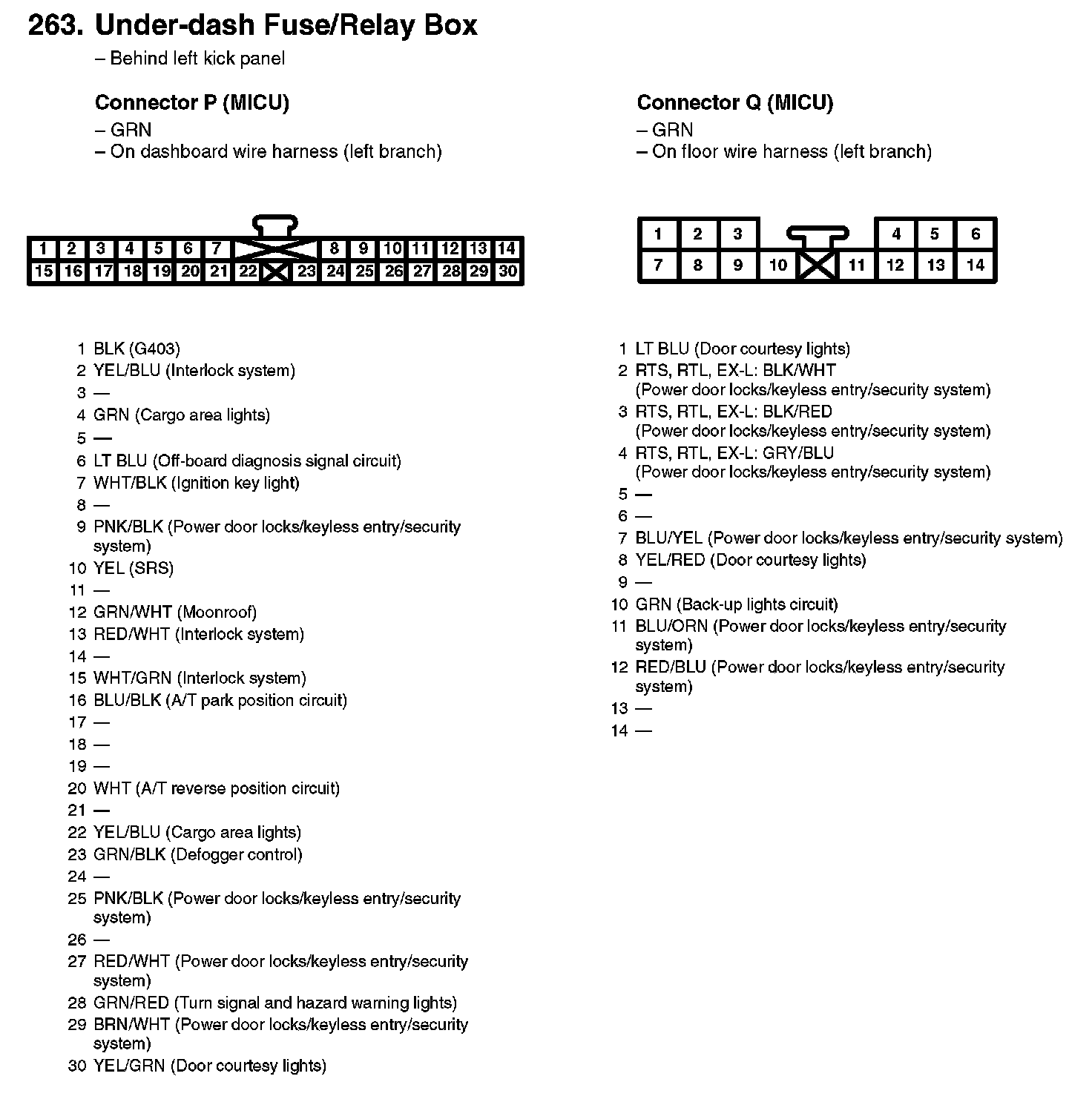

263. Under-dash Fuse/Relay Box:

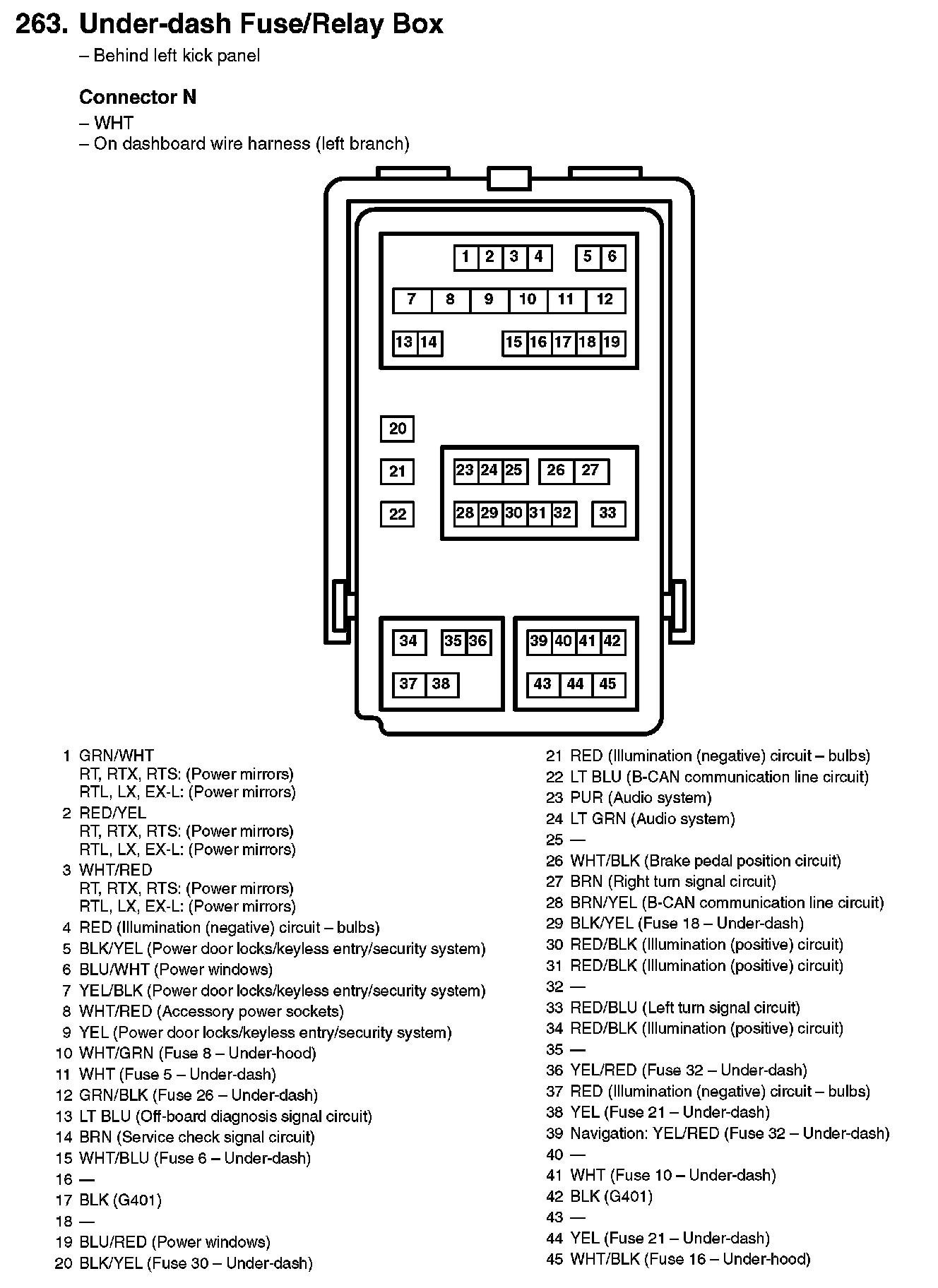

263. Under-dash Fuse/Relay Box:

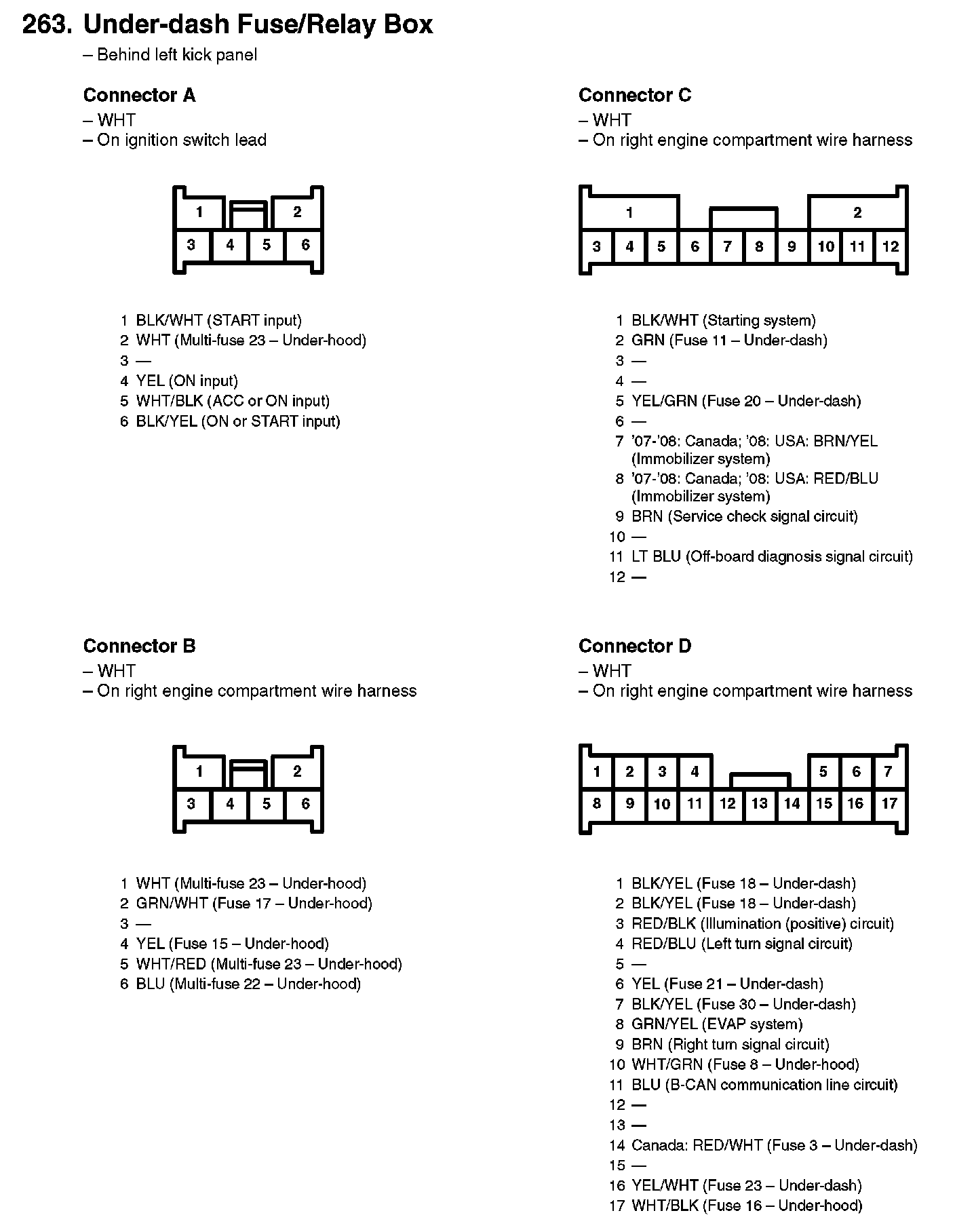

263. Under-dash Fuse/Relay Box:

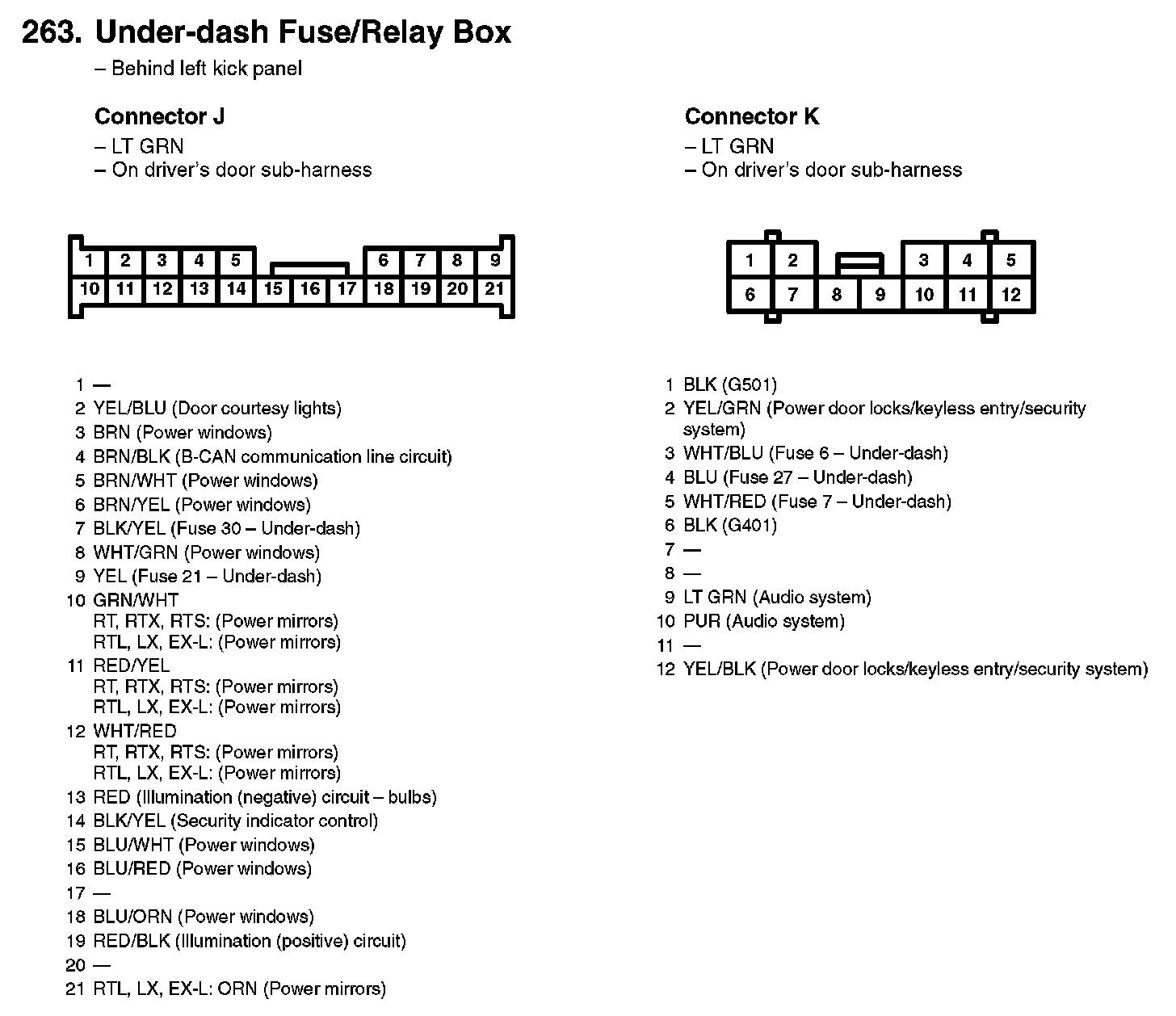

263. Under-dash Fuse/Relay Box:

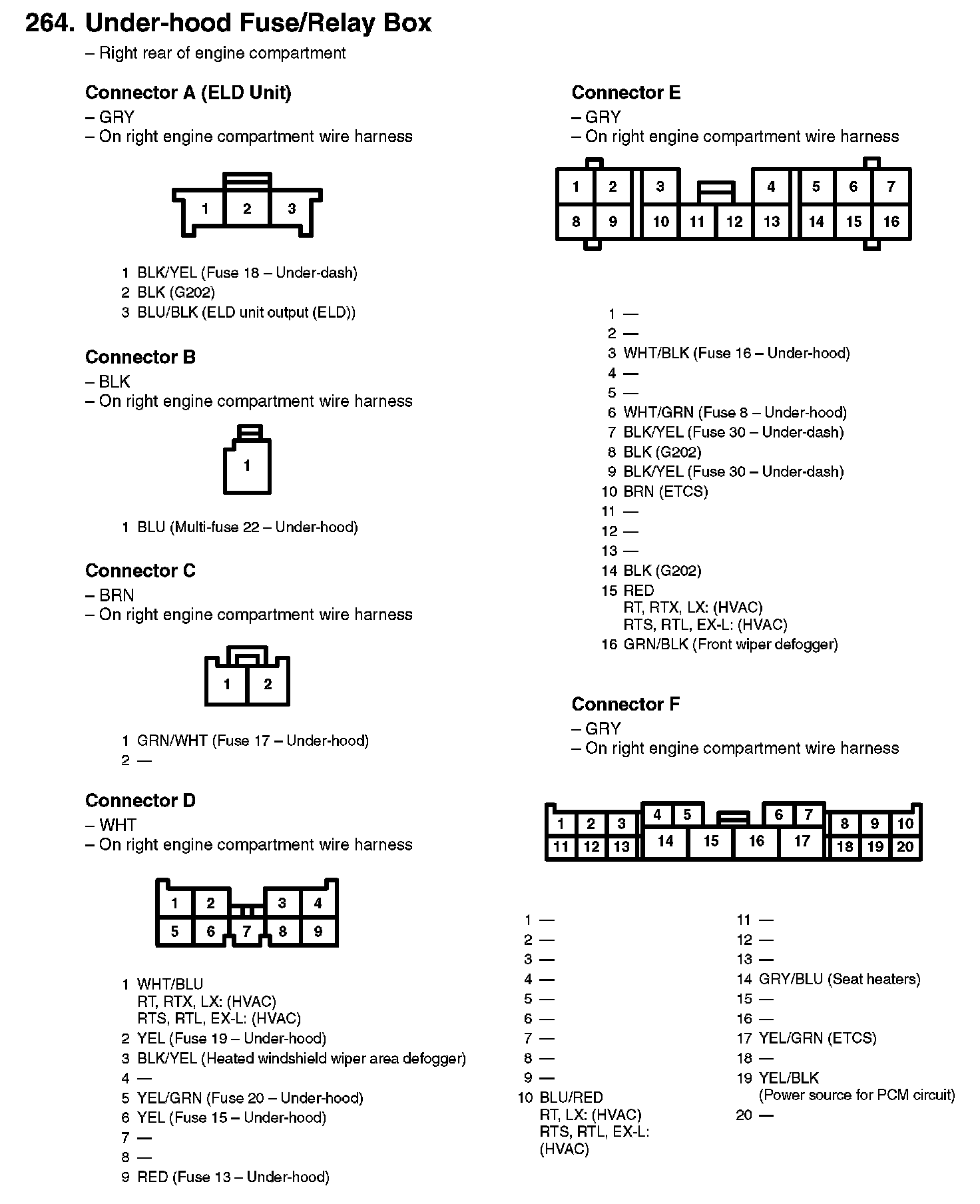

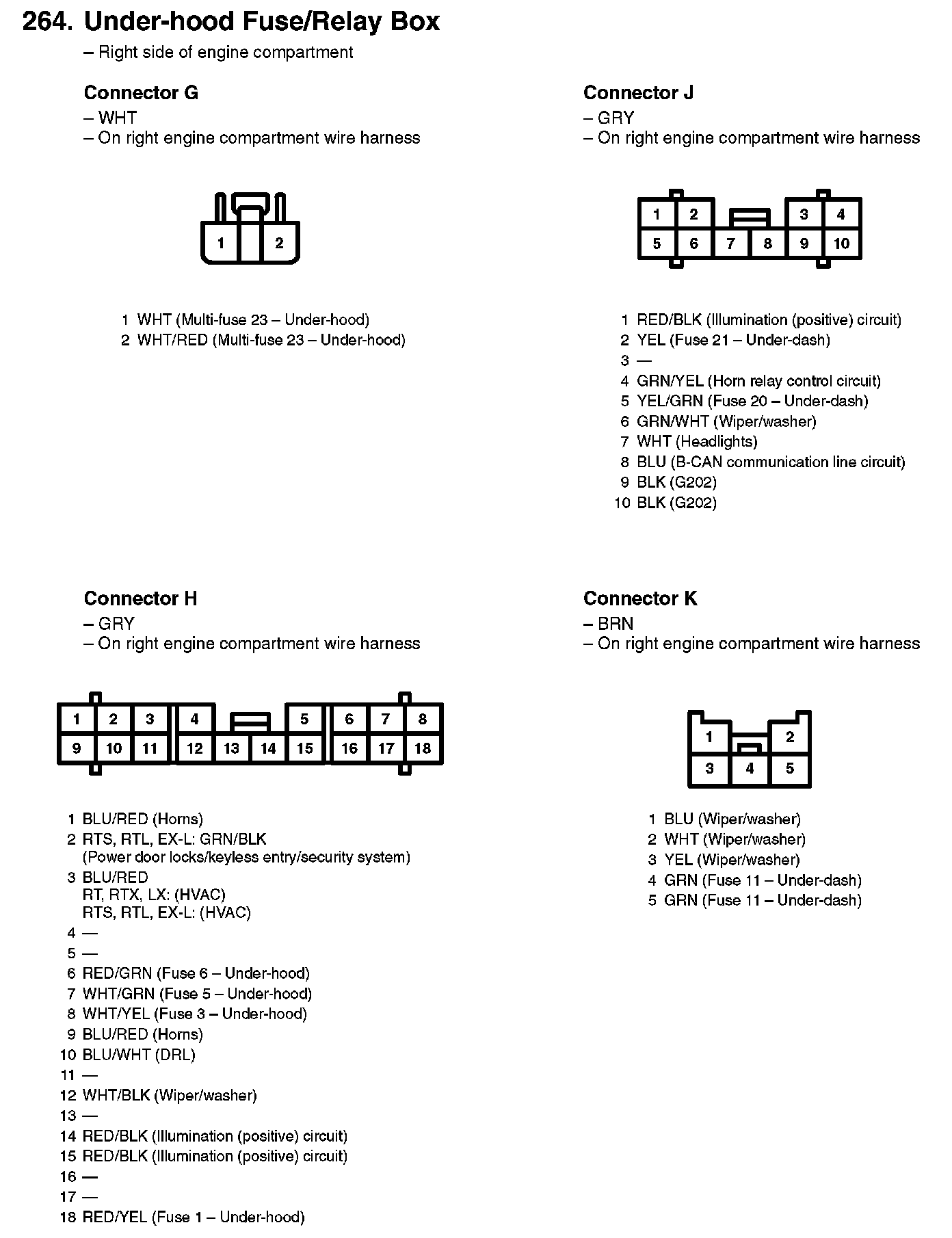

264. Under-hood Fuse/Relay Box:



264. Under-hood Fuse/Relay Box:
