Honda
>>
2007
>>
Ridgeline V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
Navigation Module
Navigation Module

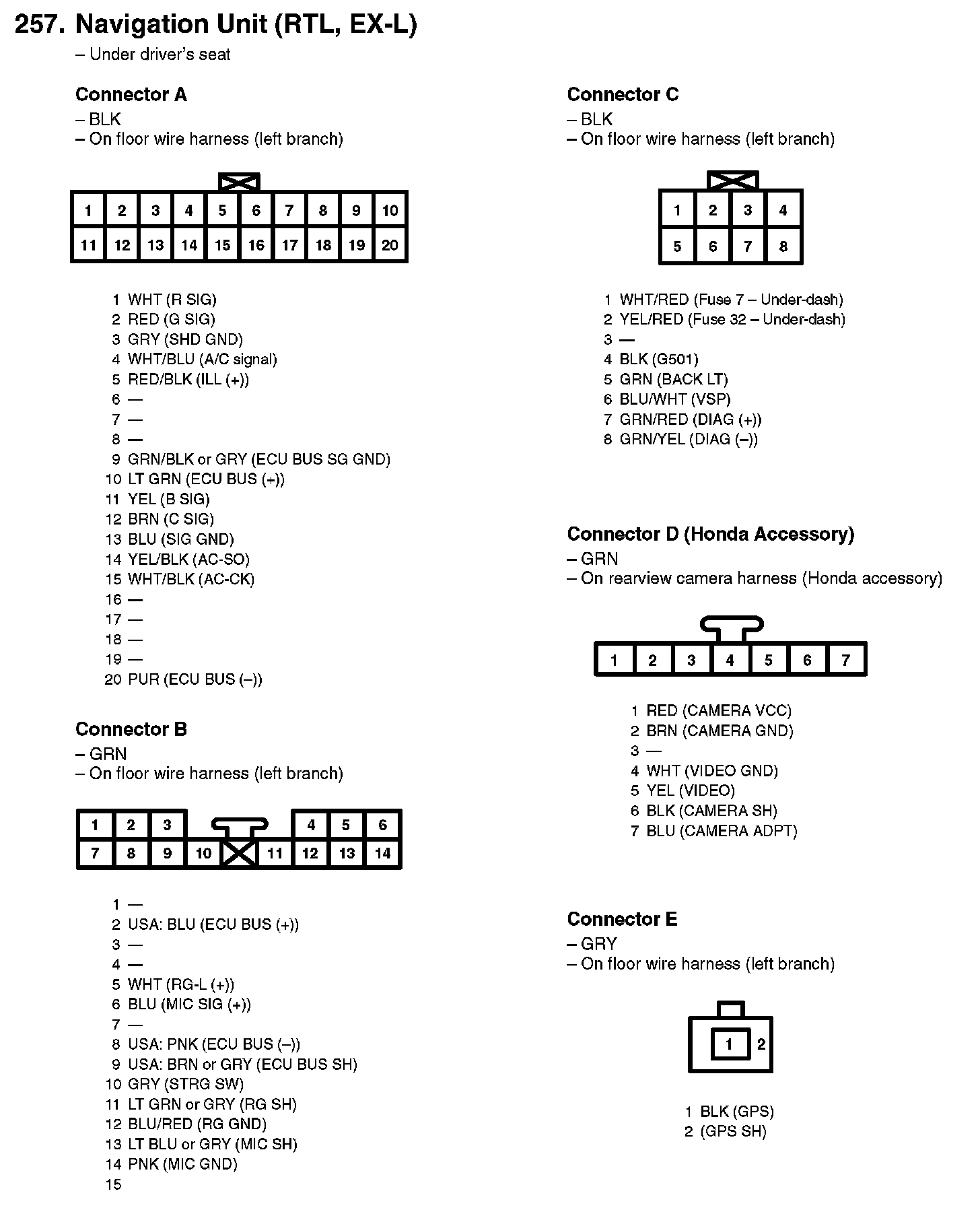

257. Navigation Unit (RTL, EX-L):
