Home >> Honda >> 2007 >> Ridgeline V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> Navigation Display

Navigation Display

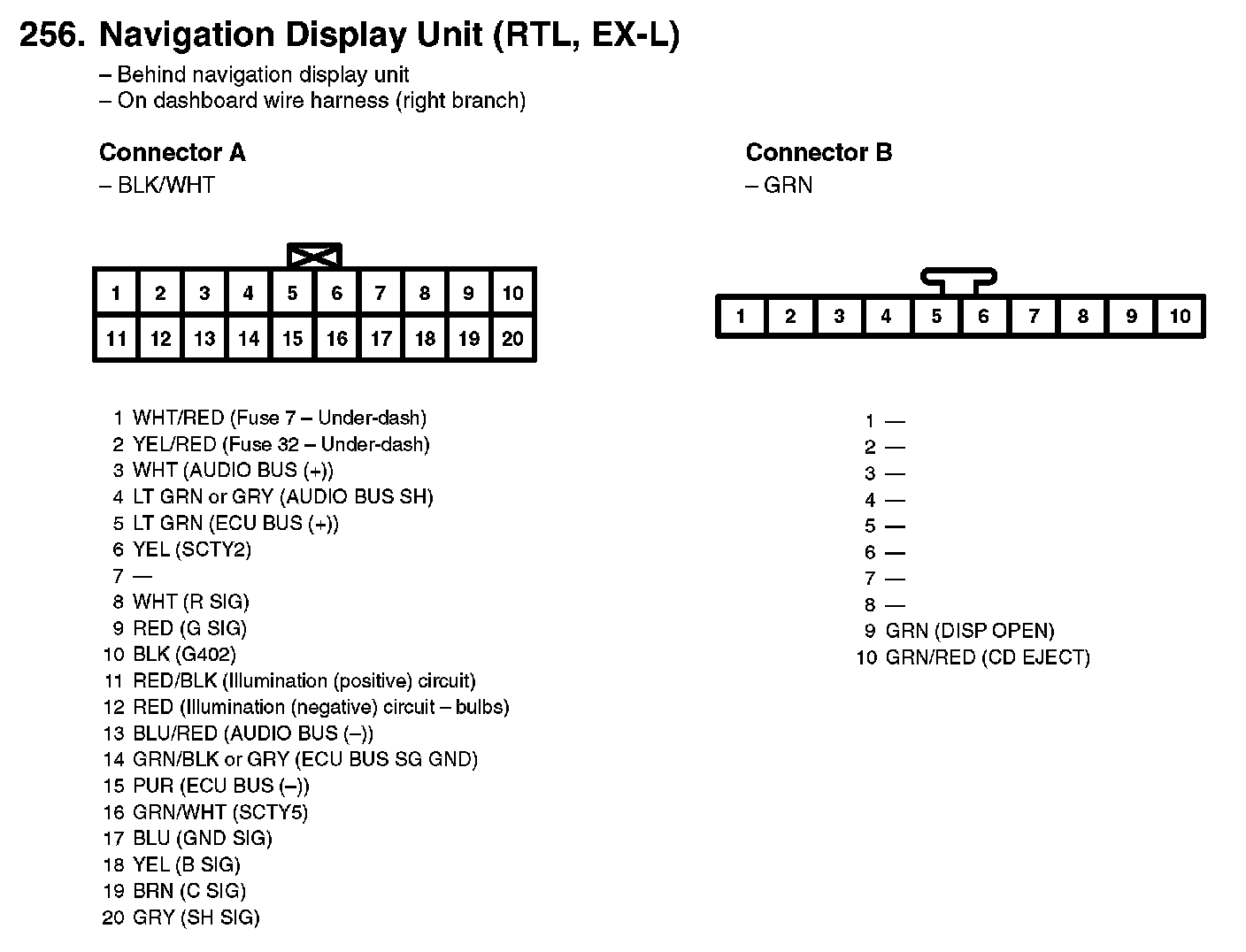

256. Navigation Display Unit (RTL, EX-L):
