Electronic Brake Control Module

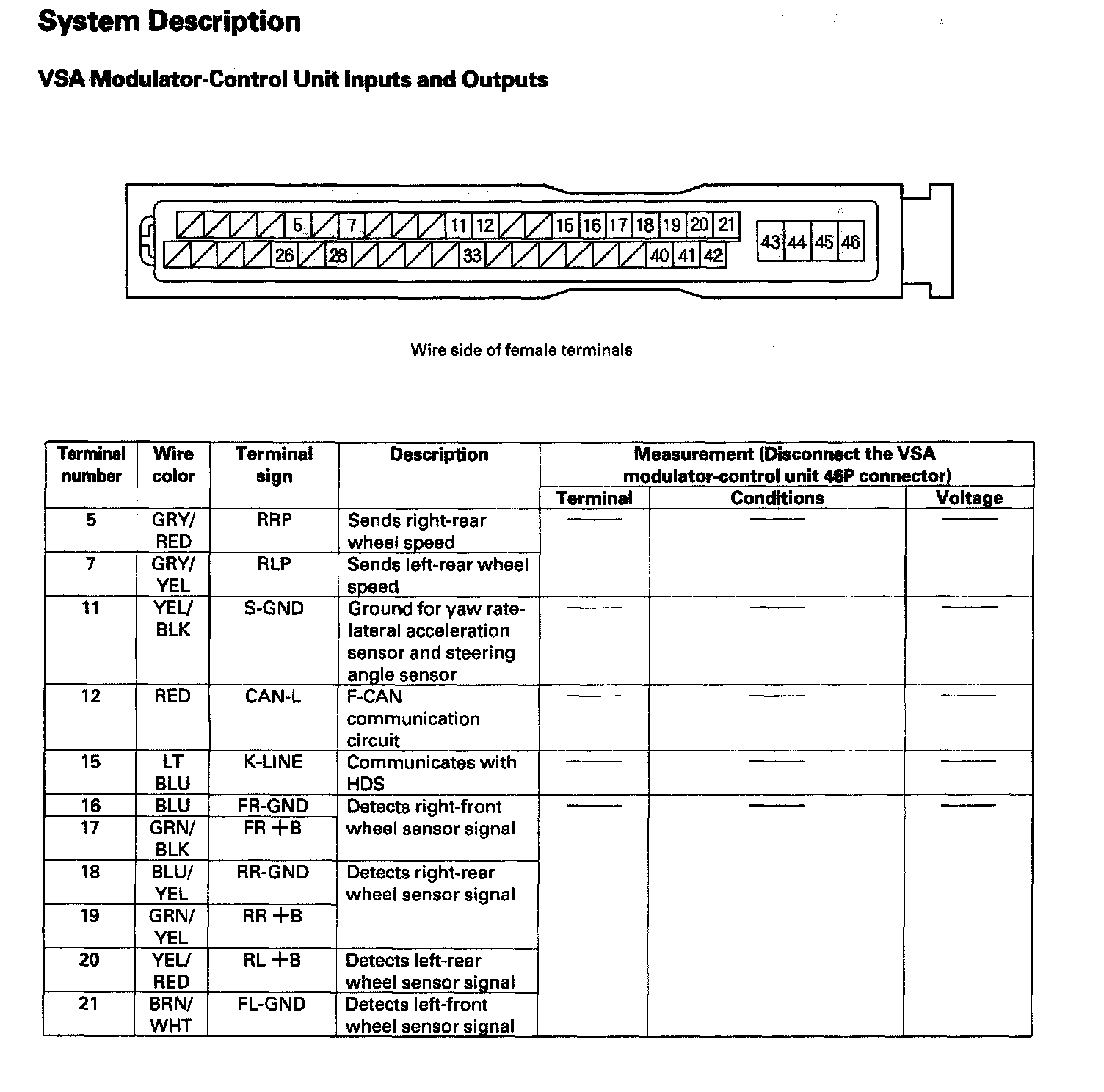

VSA Modulator-Control Unit Inputs and Outputs (Part 1):

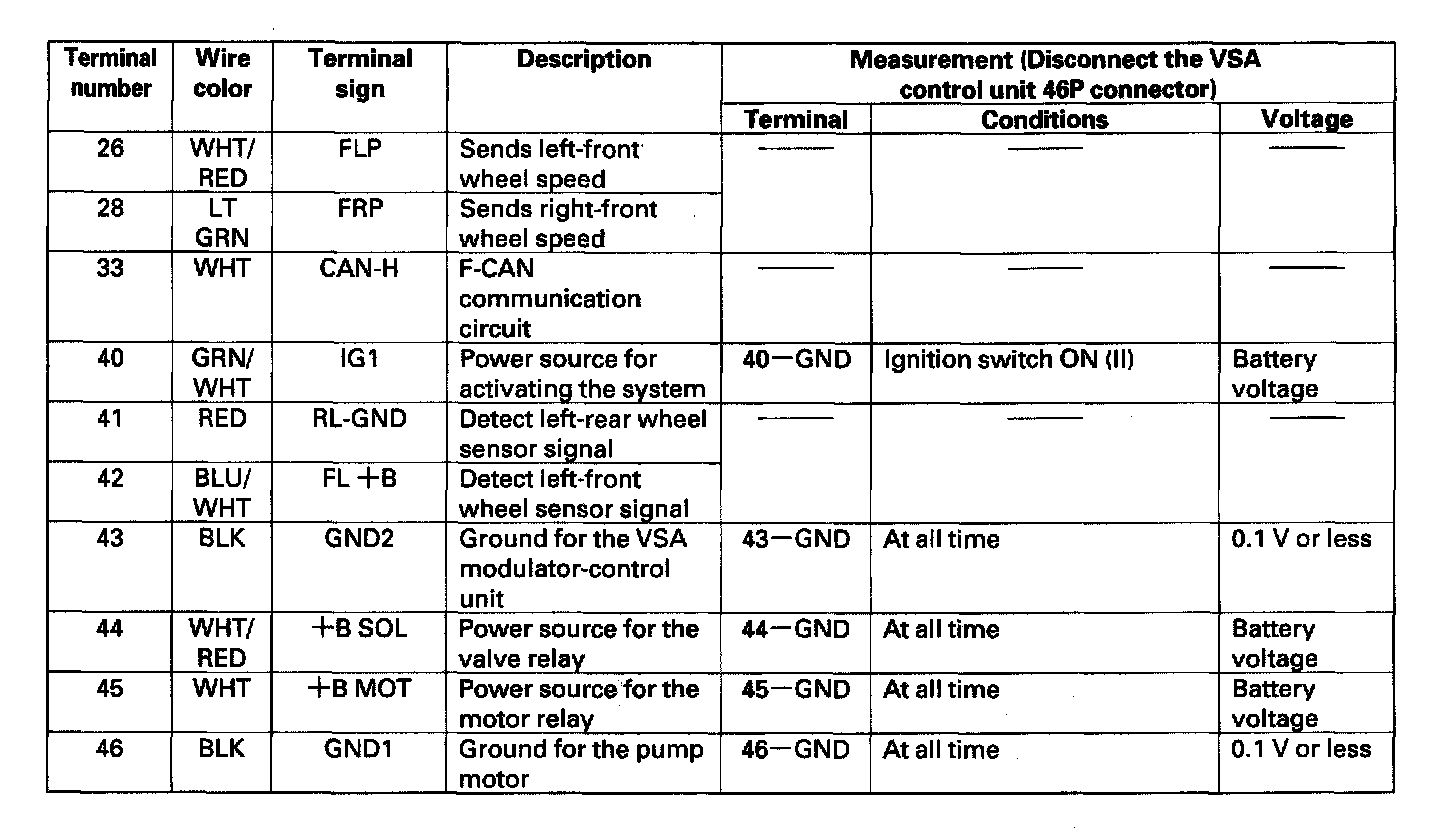

VSA Modulator-Control Unit Inputs and Outputs (Part 2):
