Control Assembly, HVAC
Control Assembly, HVAC

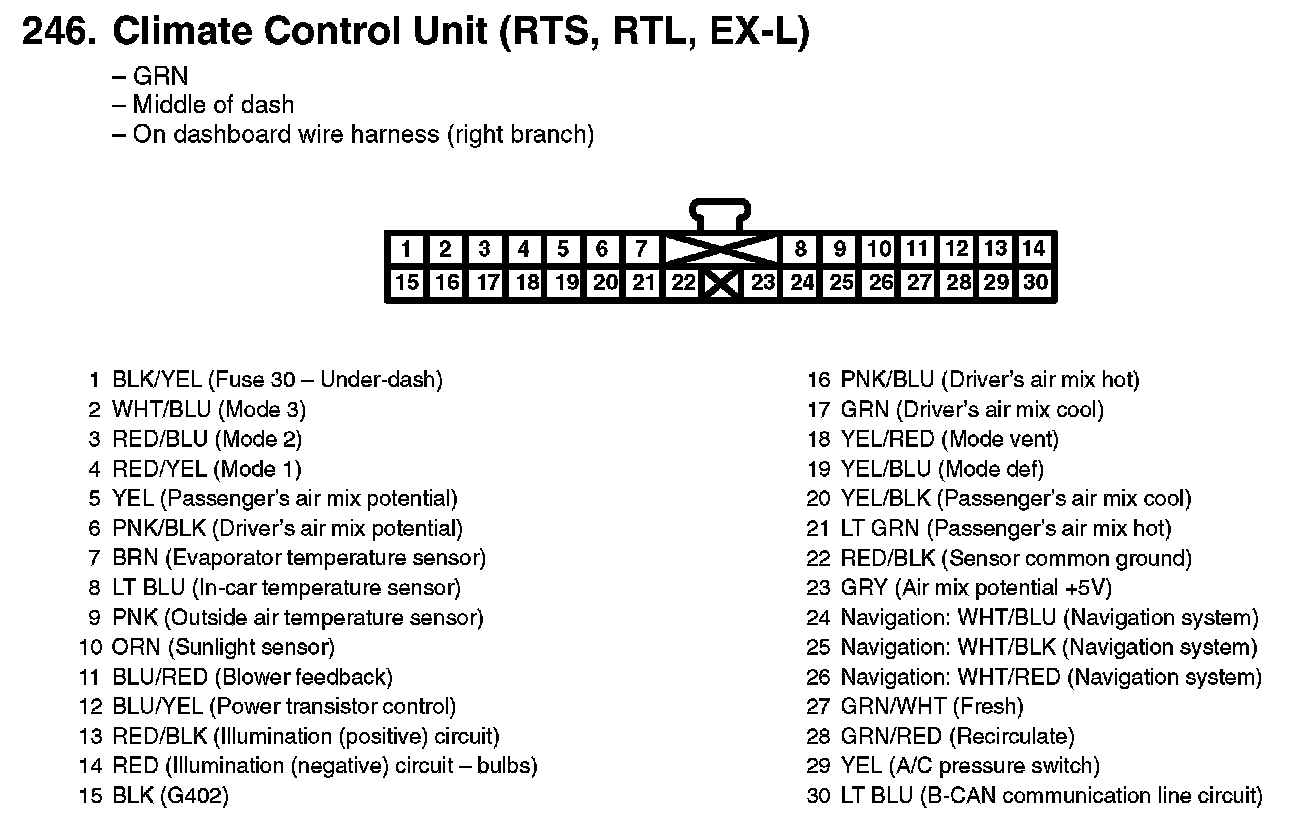

246. Climate Control Unit (RTS, RTL, EX-L):

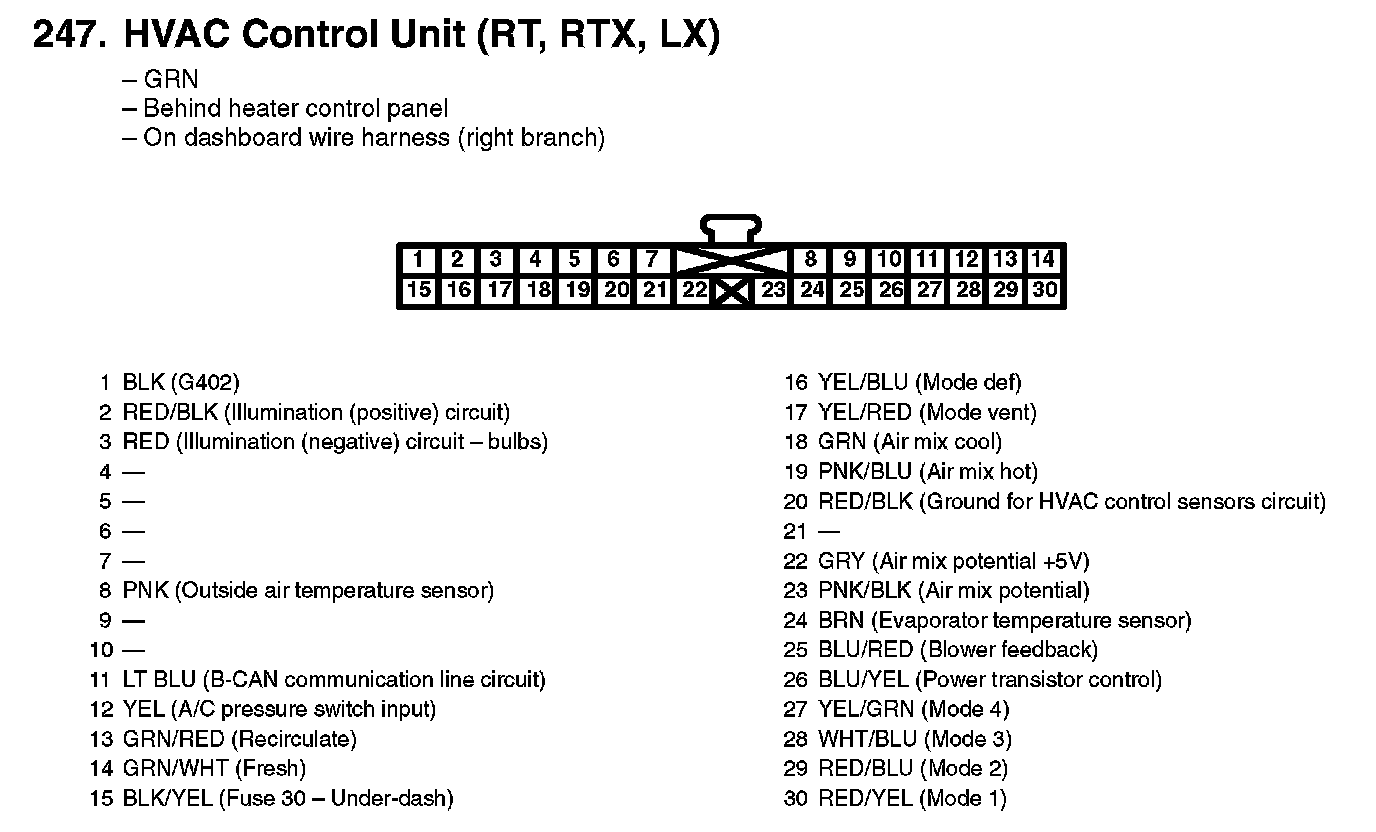

247. HVAC Control Unit (RT, RTX, LX):
