Collision Avoidance Sensor

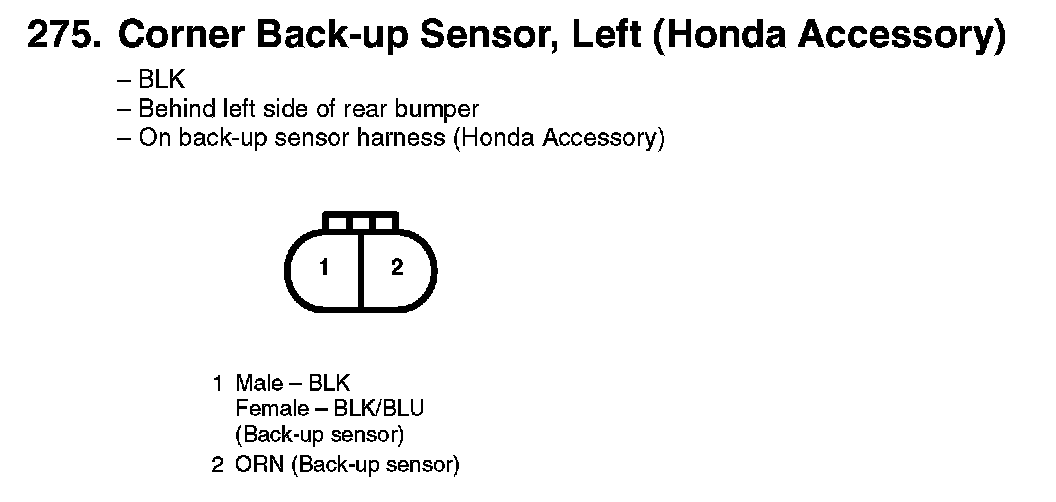

275. Corner Back-up Sensor, Left (Honda Accessory):

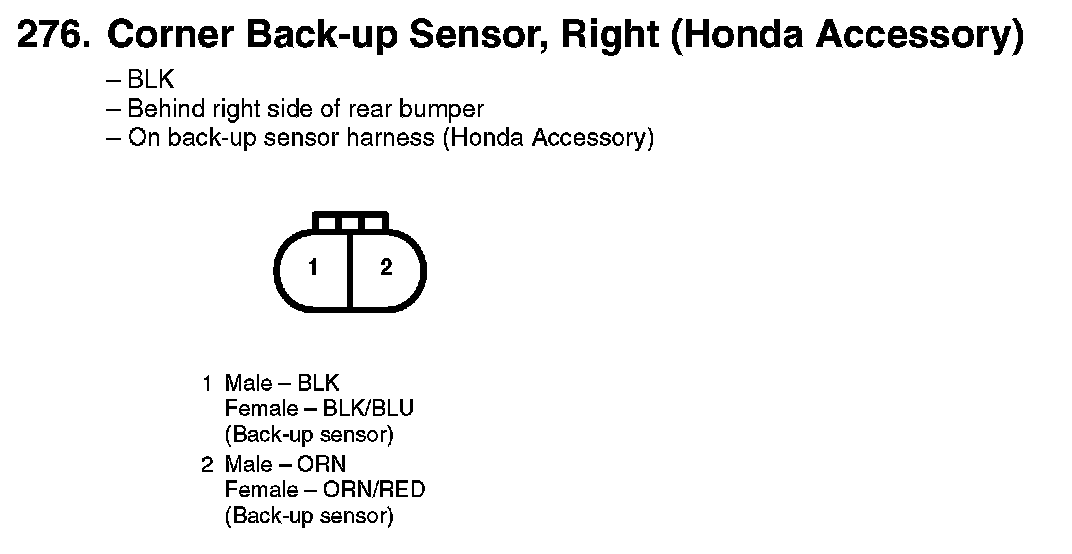

276. Corner Back-Up Sensor, Right (Honda Accessory):

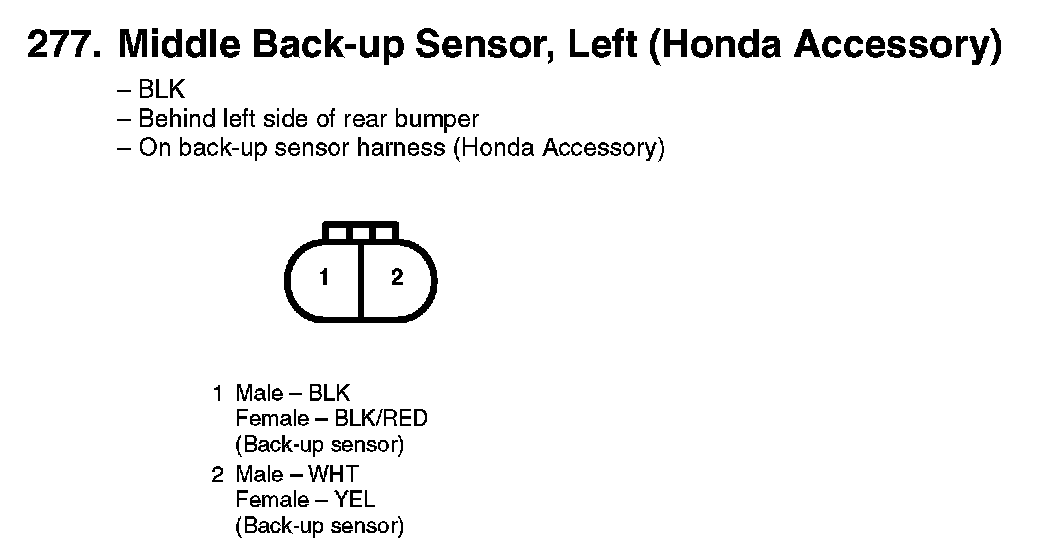

277. Middle Back-up Sensor, Left (Honda Accessory):

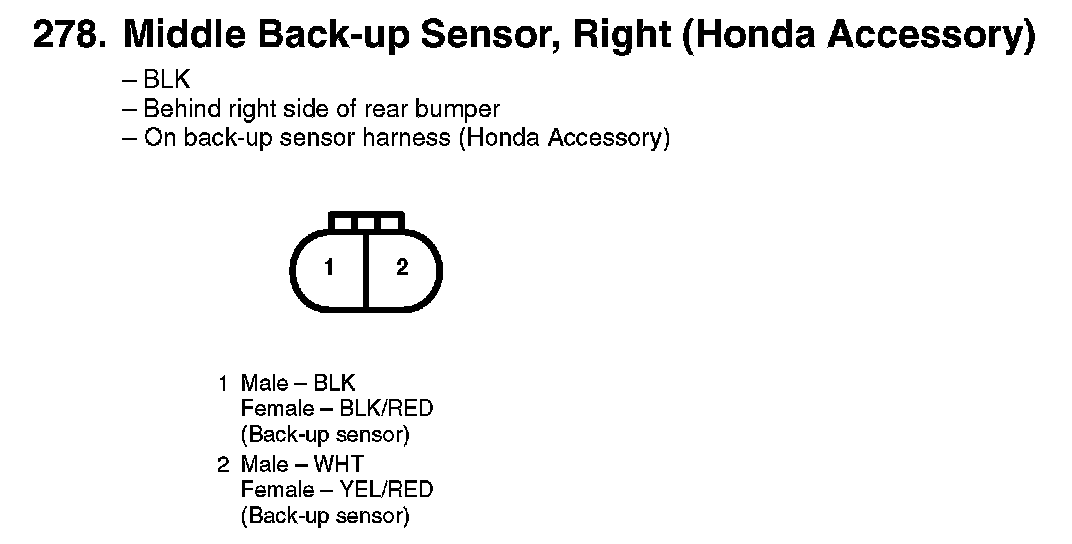

278. Middle Back-up Sensor, Right (Honda Accessory):

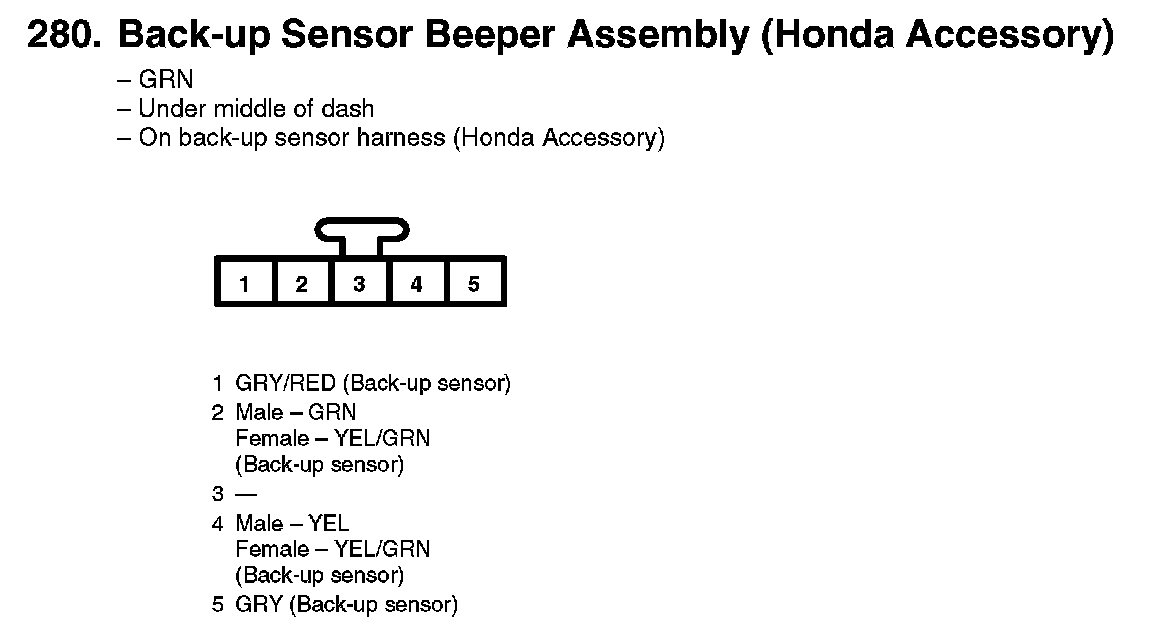

280. Back-Up Sensor Beeper Assembly (Honda Accessory):
