Home >> Honda >> 2006 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Intake Manifold

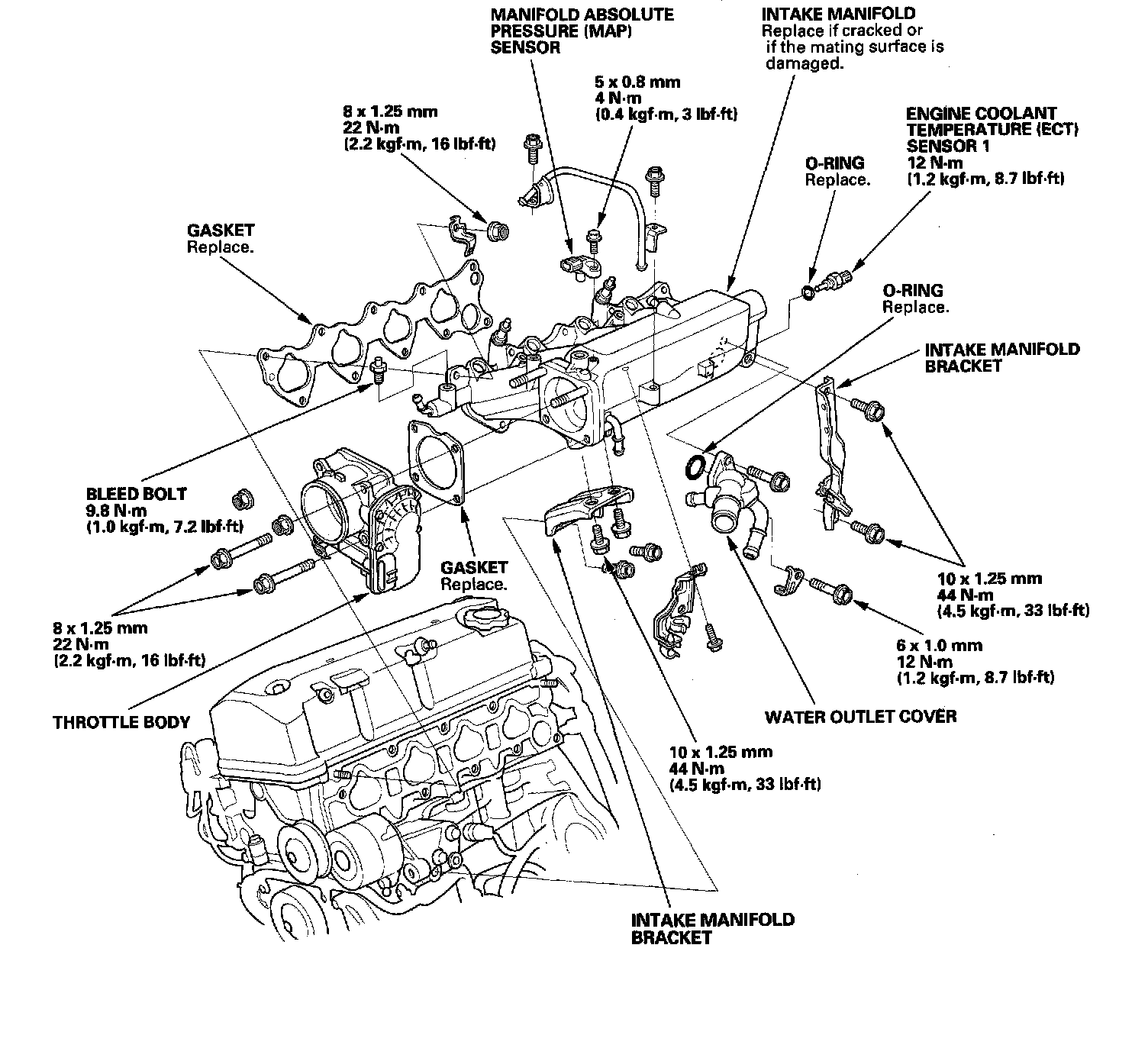

Intake Manifold

2006 Model

NOTE: Use new O-rings and gaskets when reassembling.
