Home >> Honda >> 2006 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Angle Sensor

Steering Angle Sensor

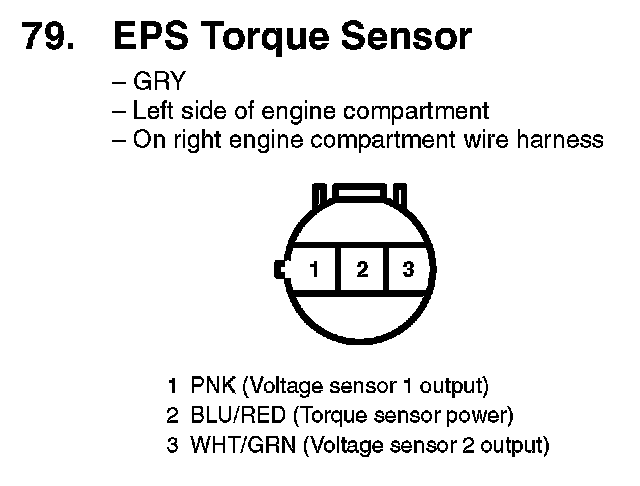

79. EPS Torque Sensor:

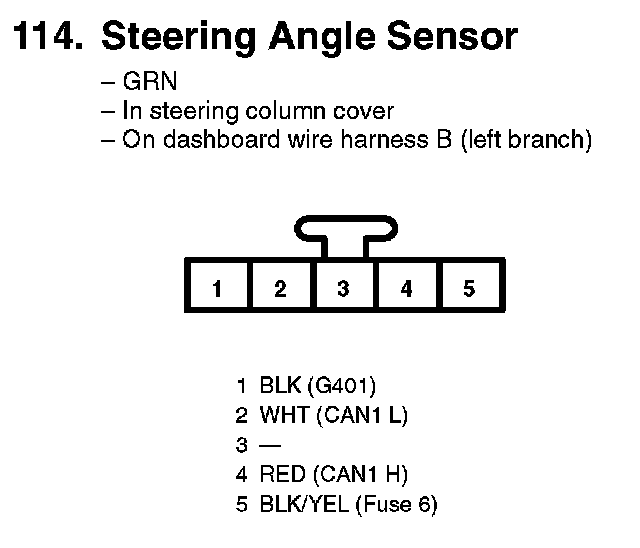

114. Steering Angle Sensor:
