Electronic Brake Control Module
Electronic Brake Control Module

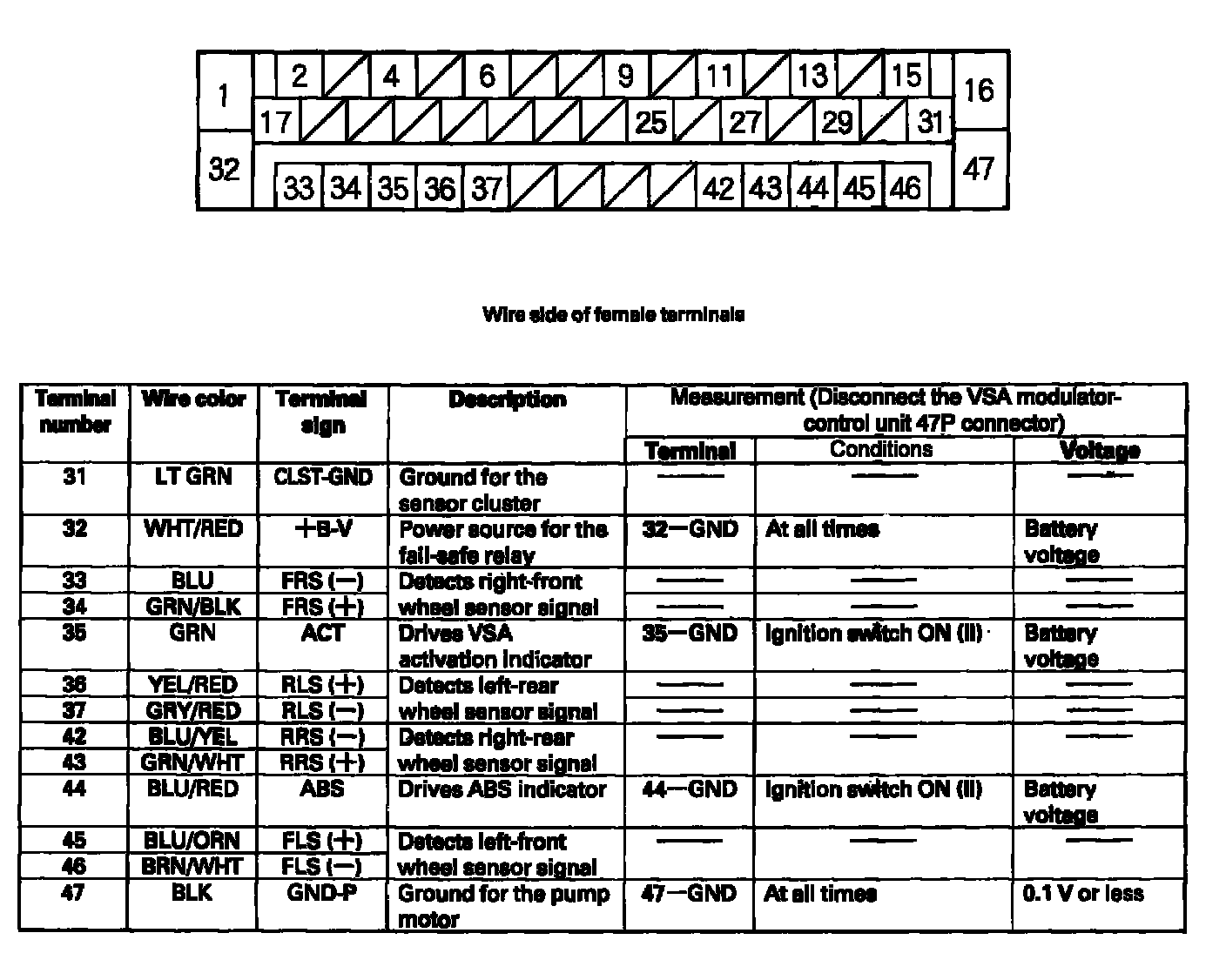

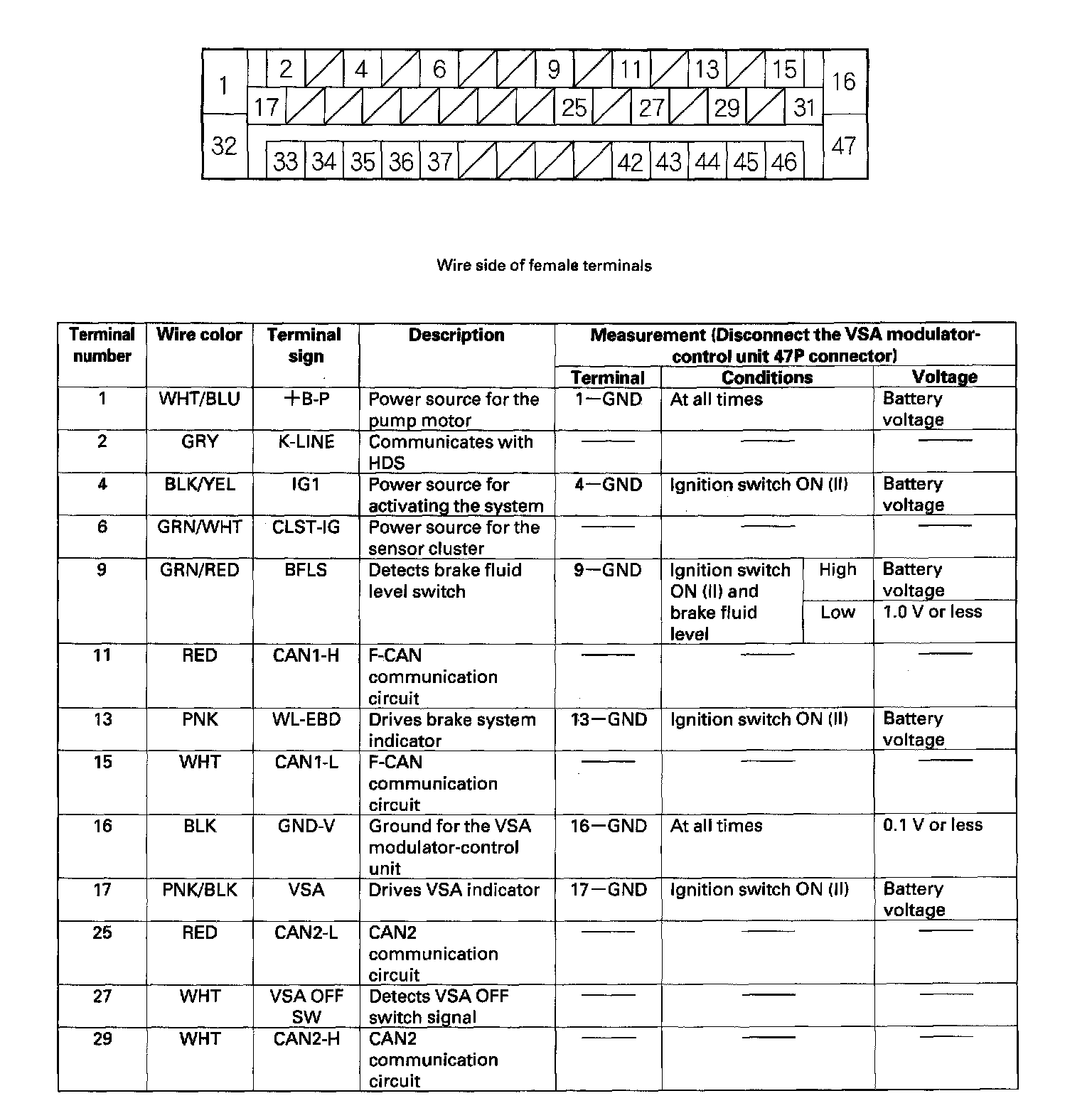

VSA Modulator-Control Unit Inputs and Outputs For 47P Connector:
VSA Modulator-Control Unit Inputs and Outputs For 47P Connector:
