System Diagram

Engine Lubrication Component Location Index:

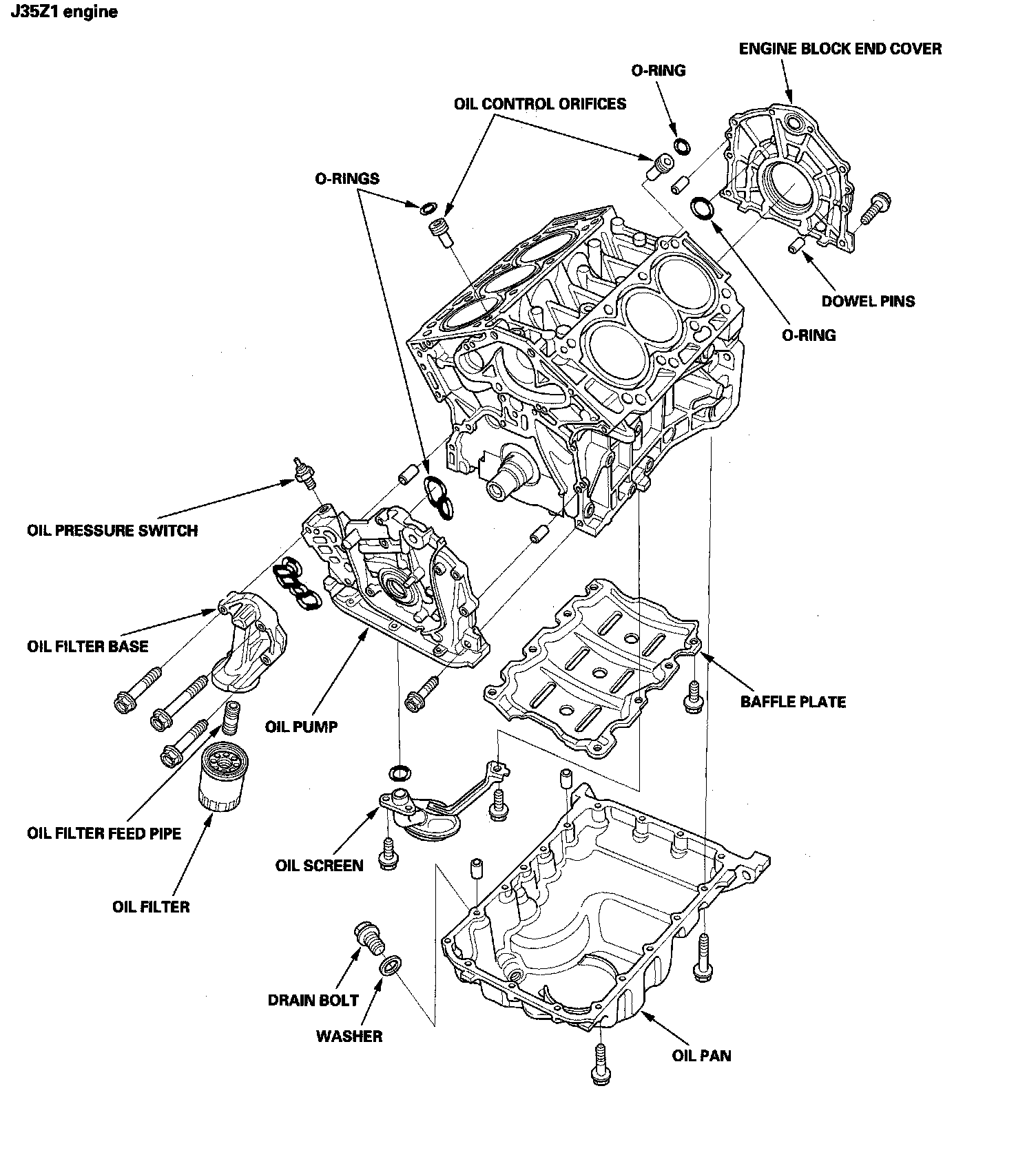

Engine Lubrication Component Location Index:

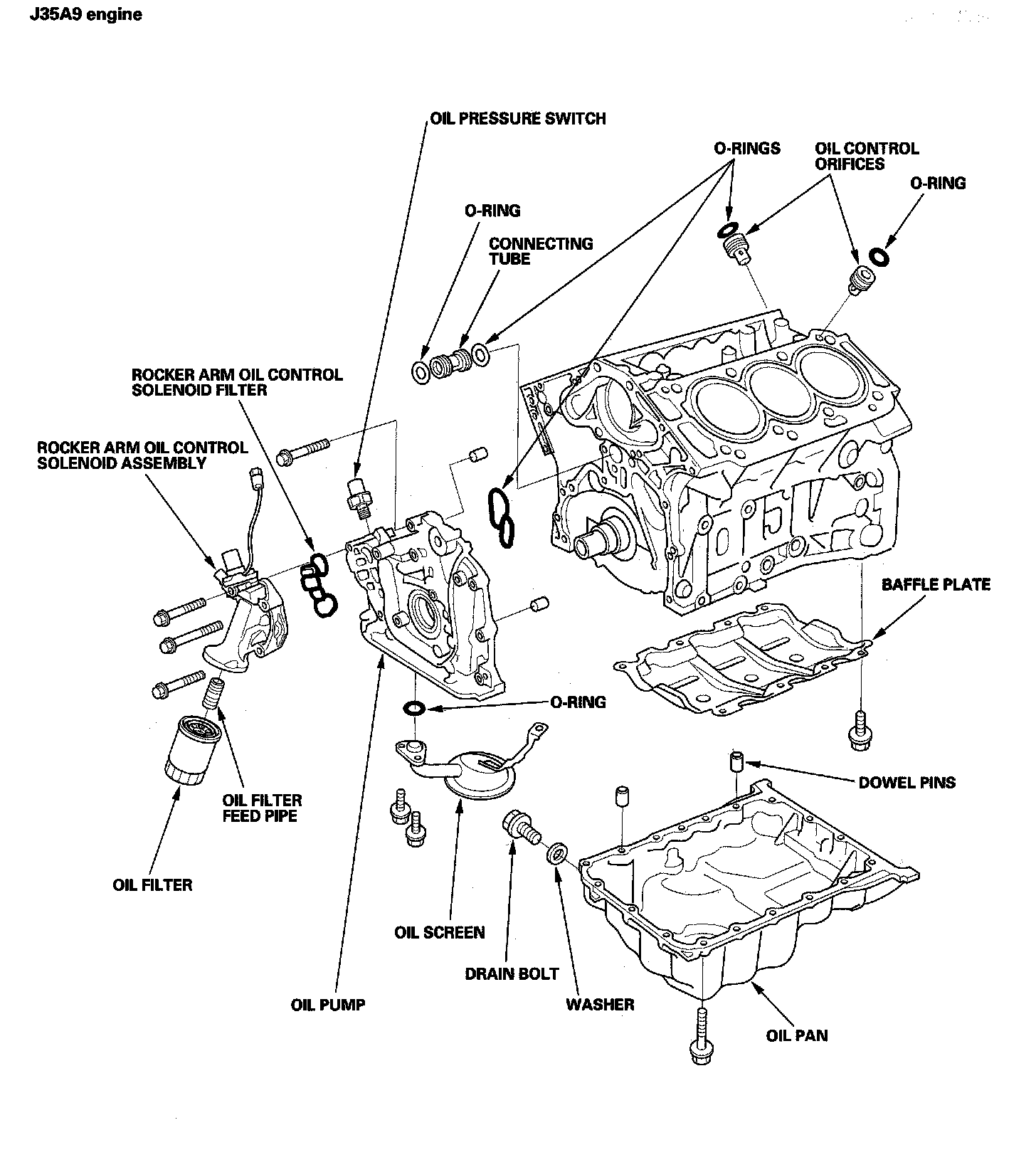

Engine Lubrication Component Location Index:
