Collision Avoidance Module
Collision Avoidance Module

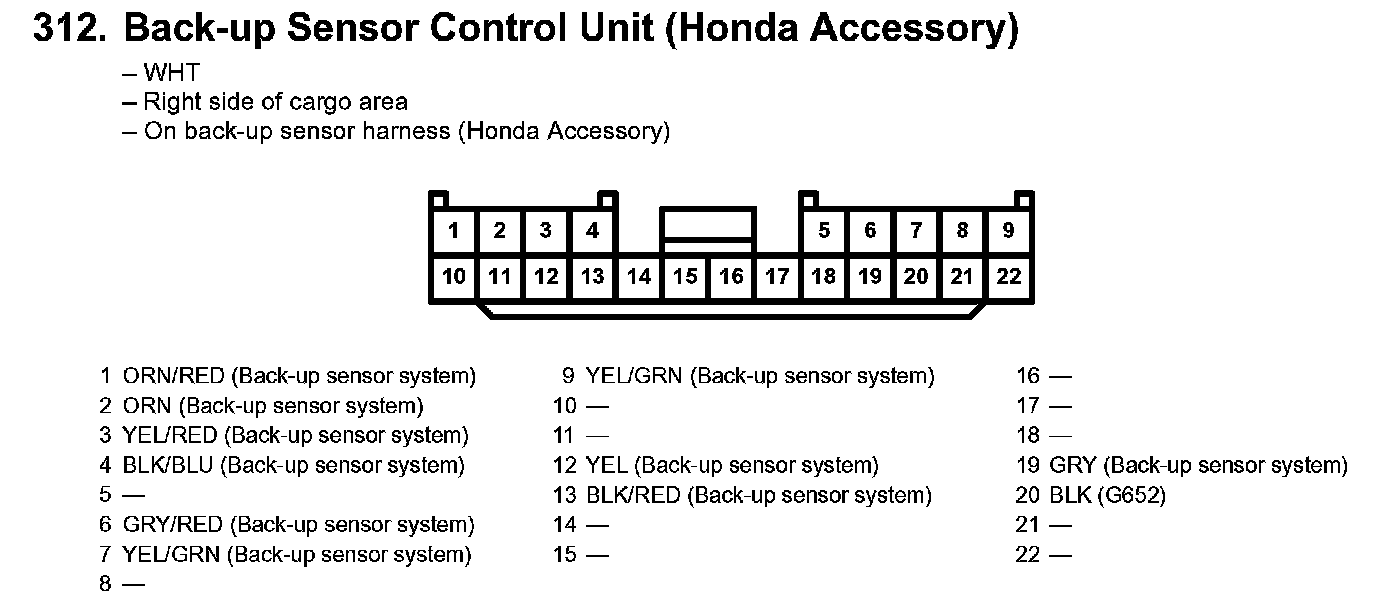

312. Back-up Sensor Control Unit (Honda Accessory):
