Home >> Honda >> 2006 >> Pilot 4WD V6-3.5L >> Repair and Diagnosis >> Body and Frame >> Frame >> Specifications

Frame: Specifications

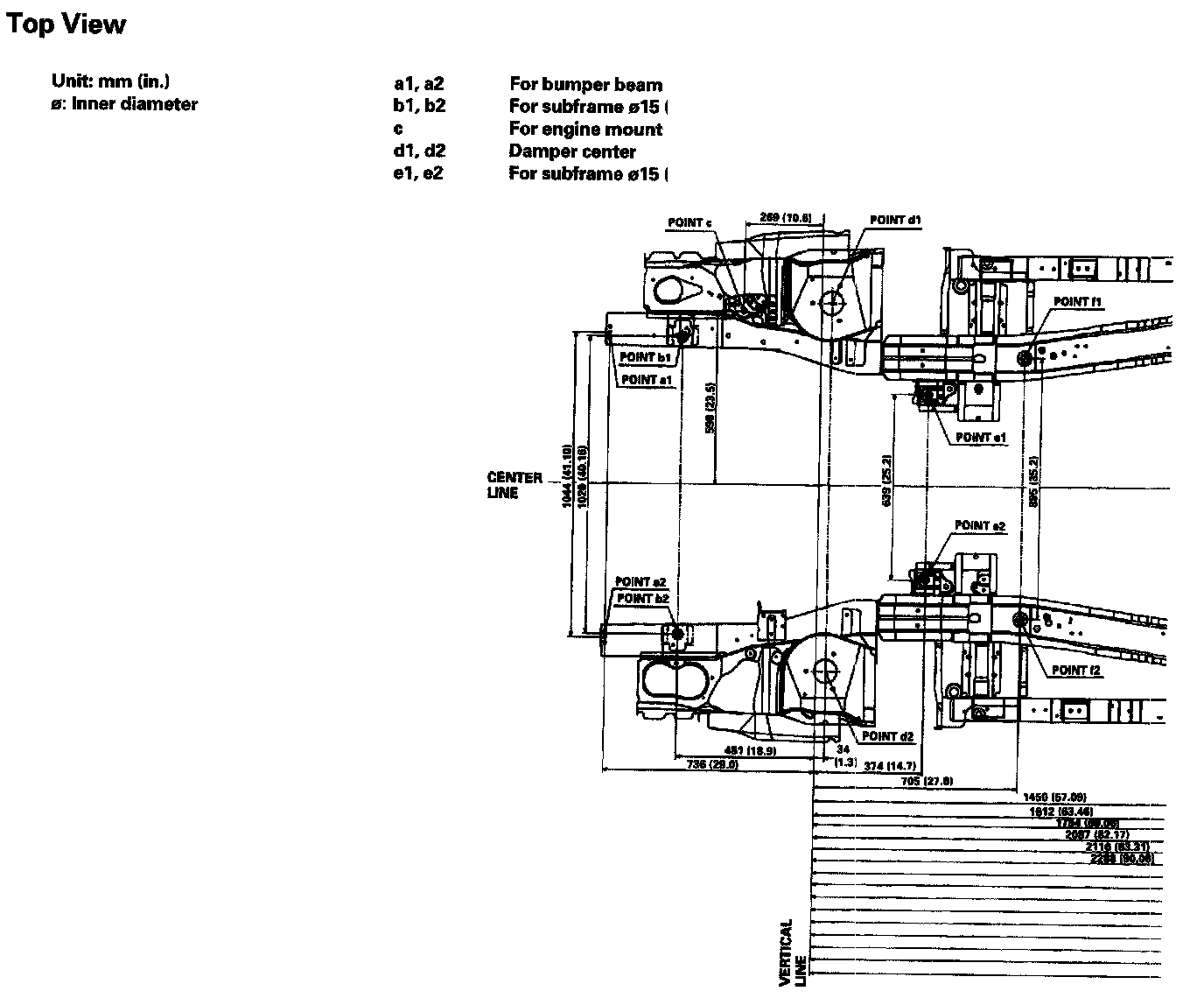

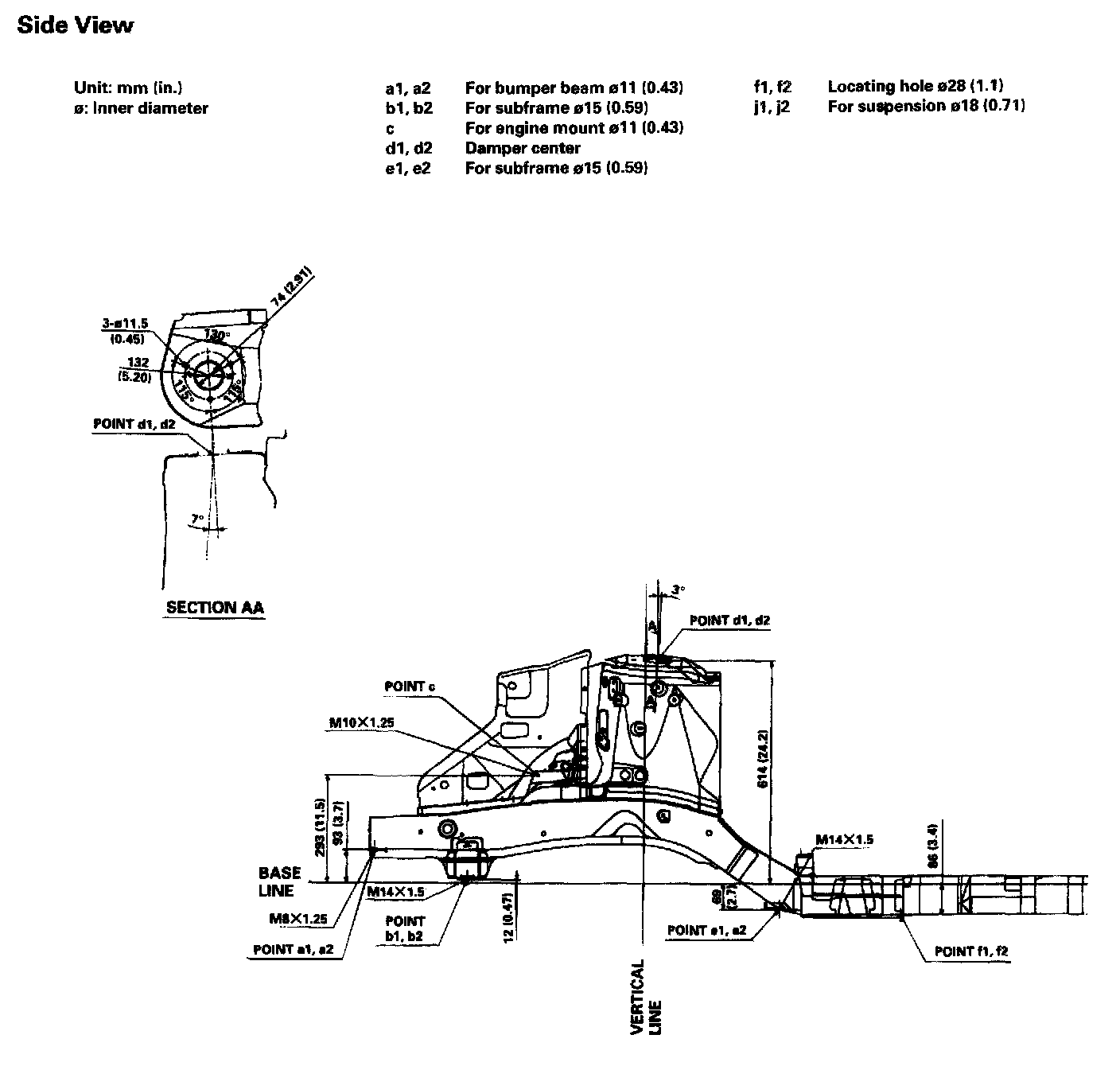

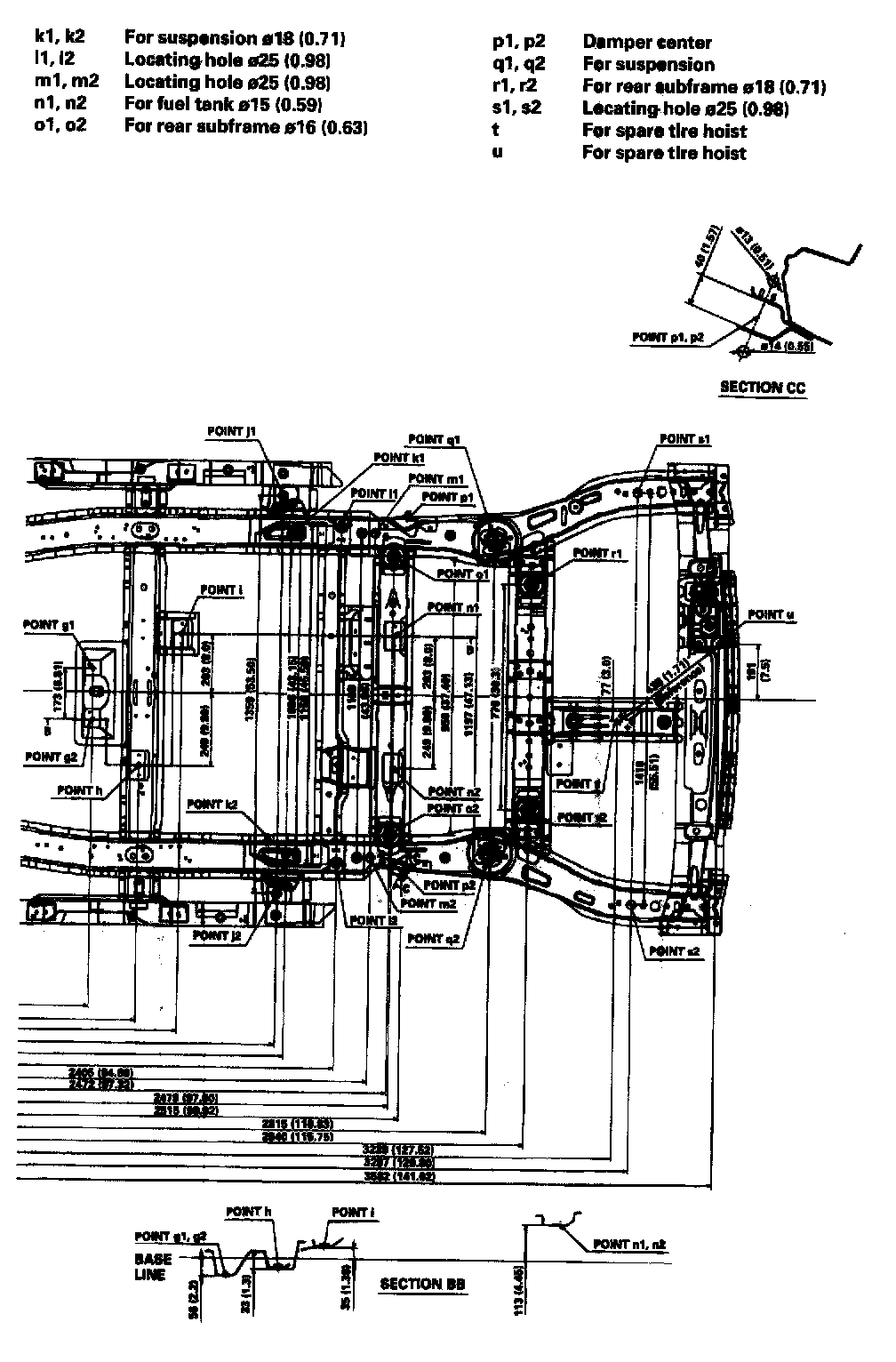

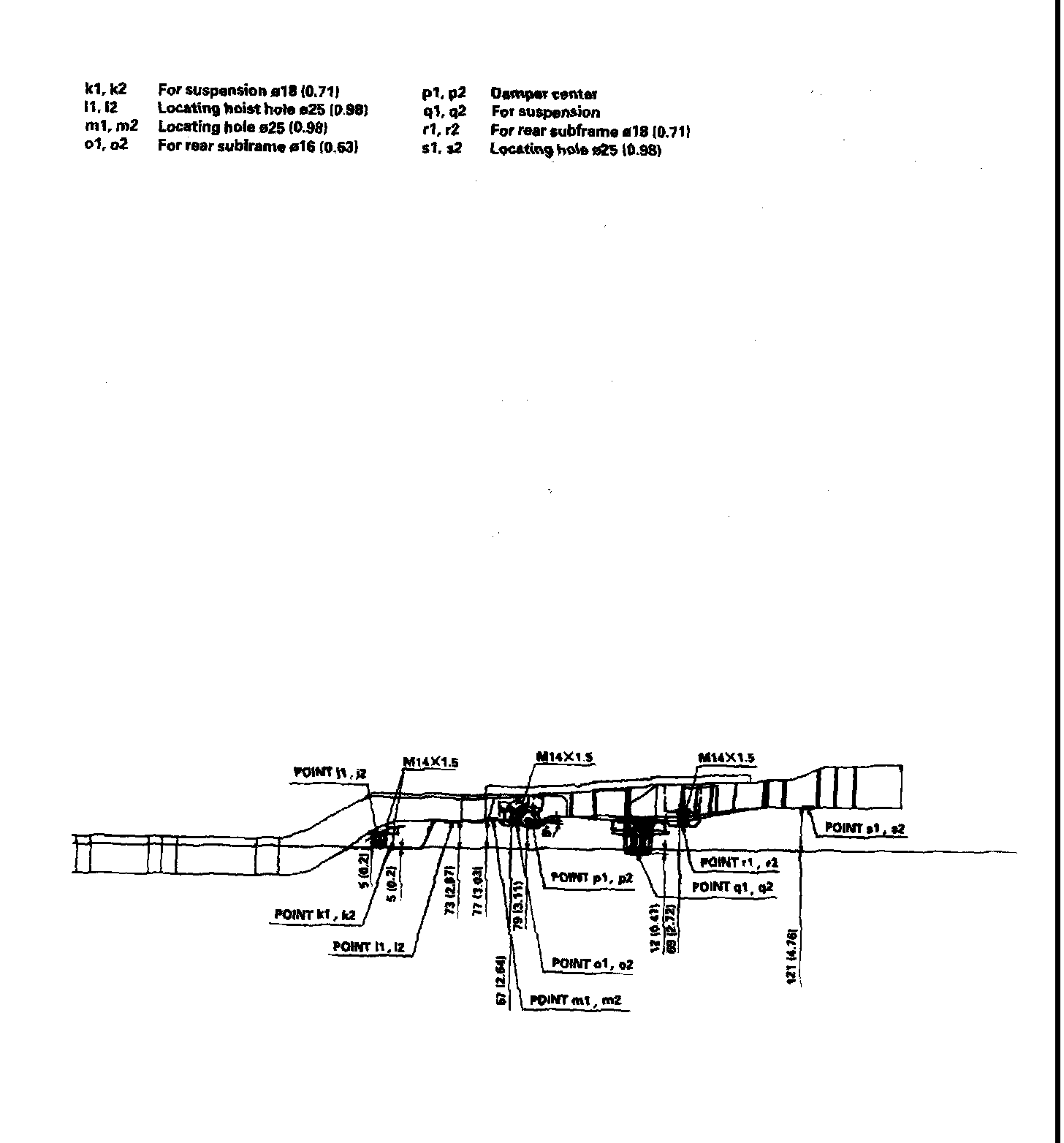

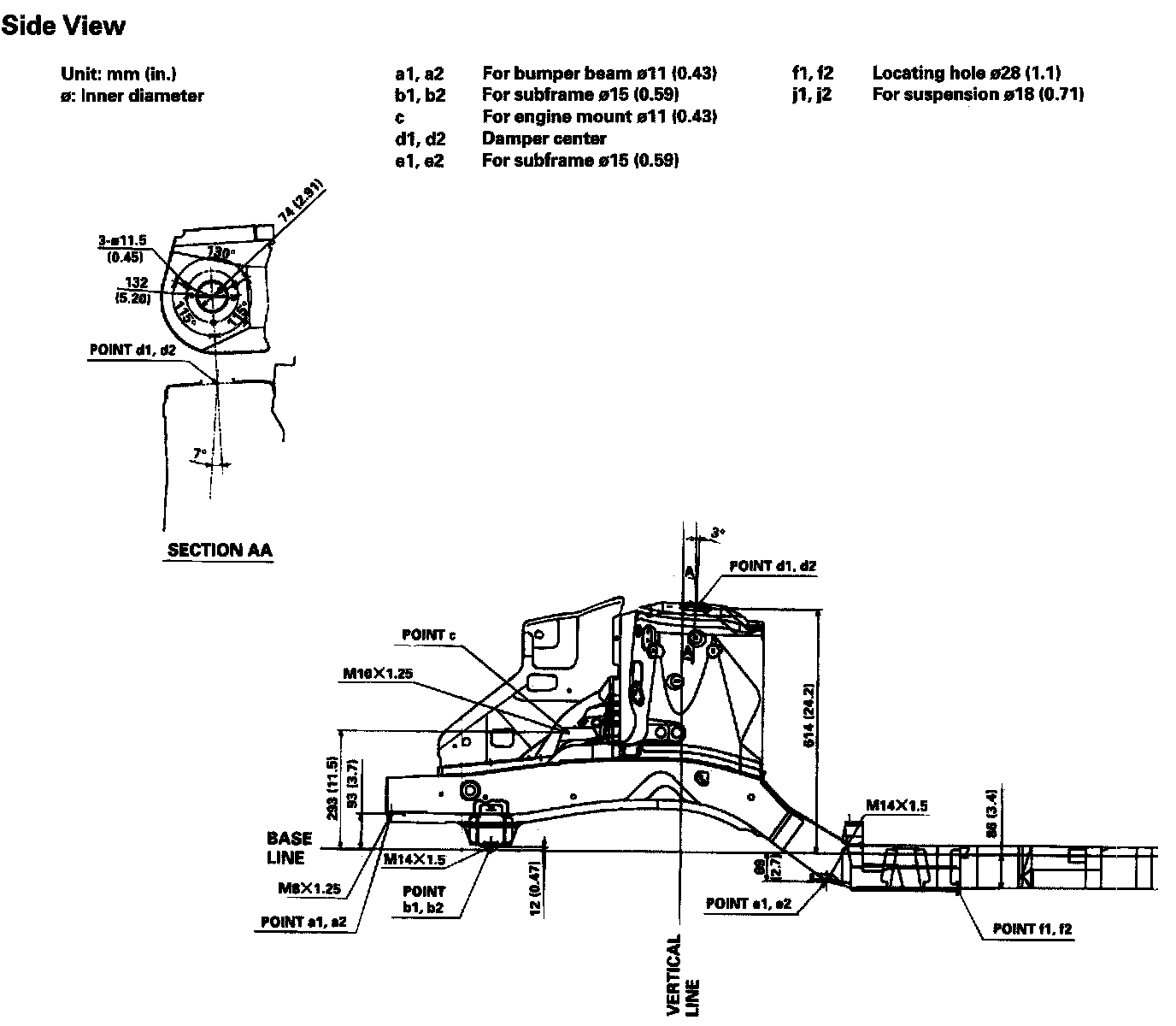

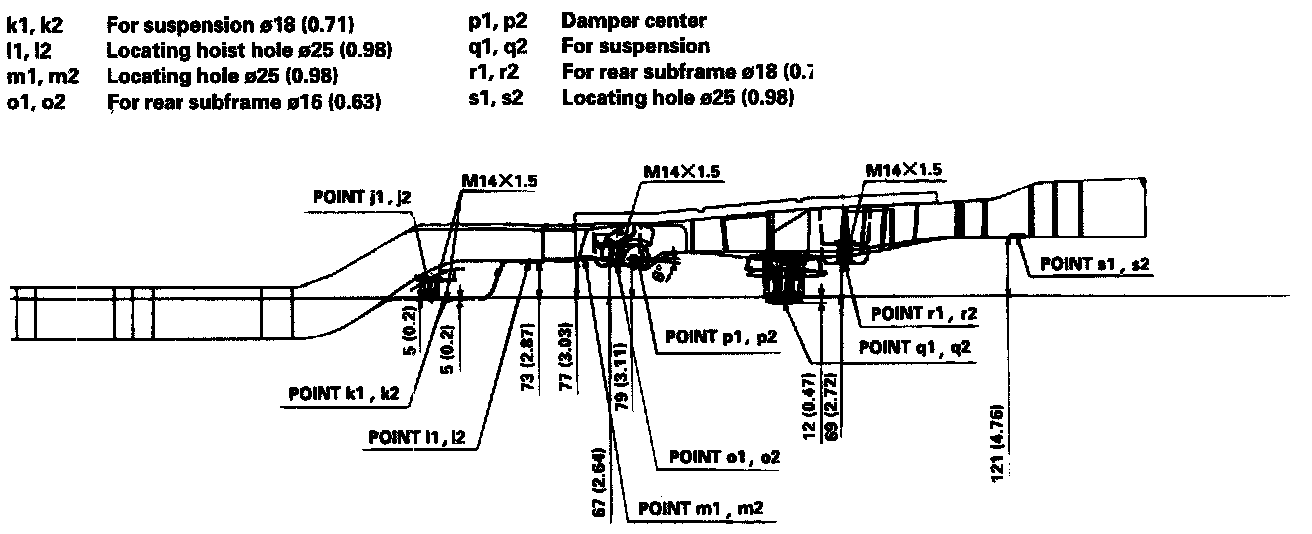

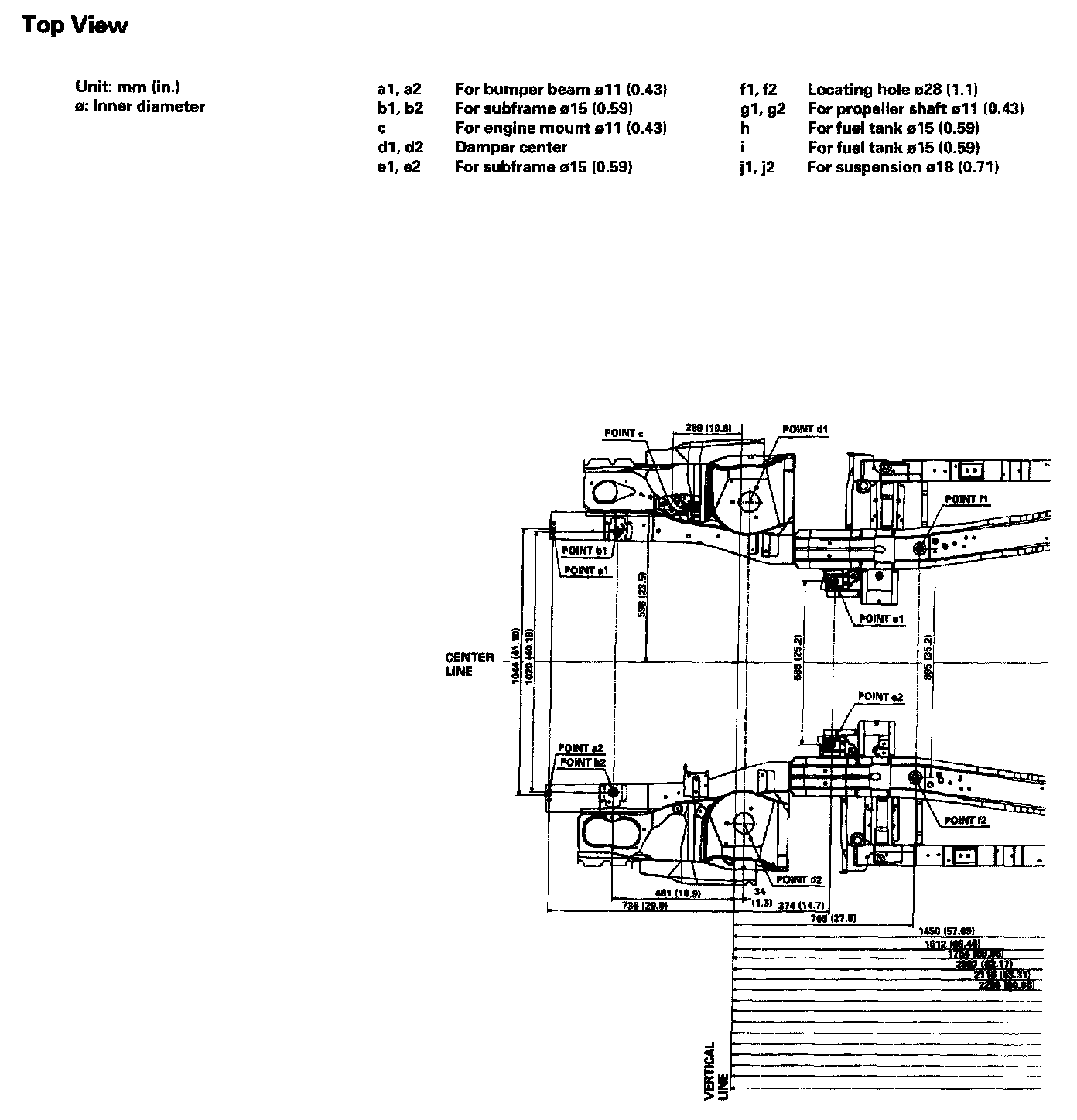

Frame Repair Chart (Part 1):



Frame Repair Chart (Part 2):



Frame Repair Chart (Part 3):



Frame Repair Chart (Part 4):
