Home >> Honda >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Locations

Starting System: Locations

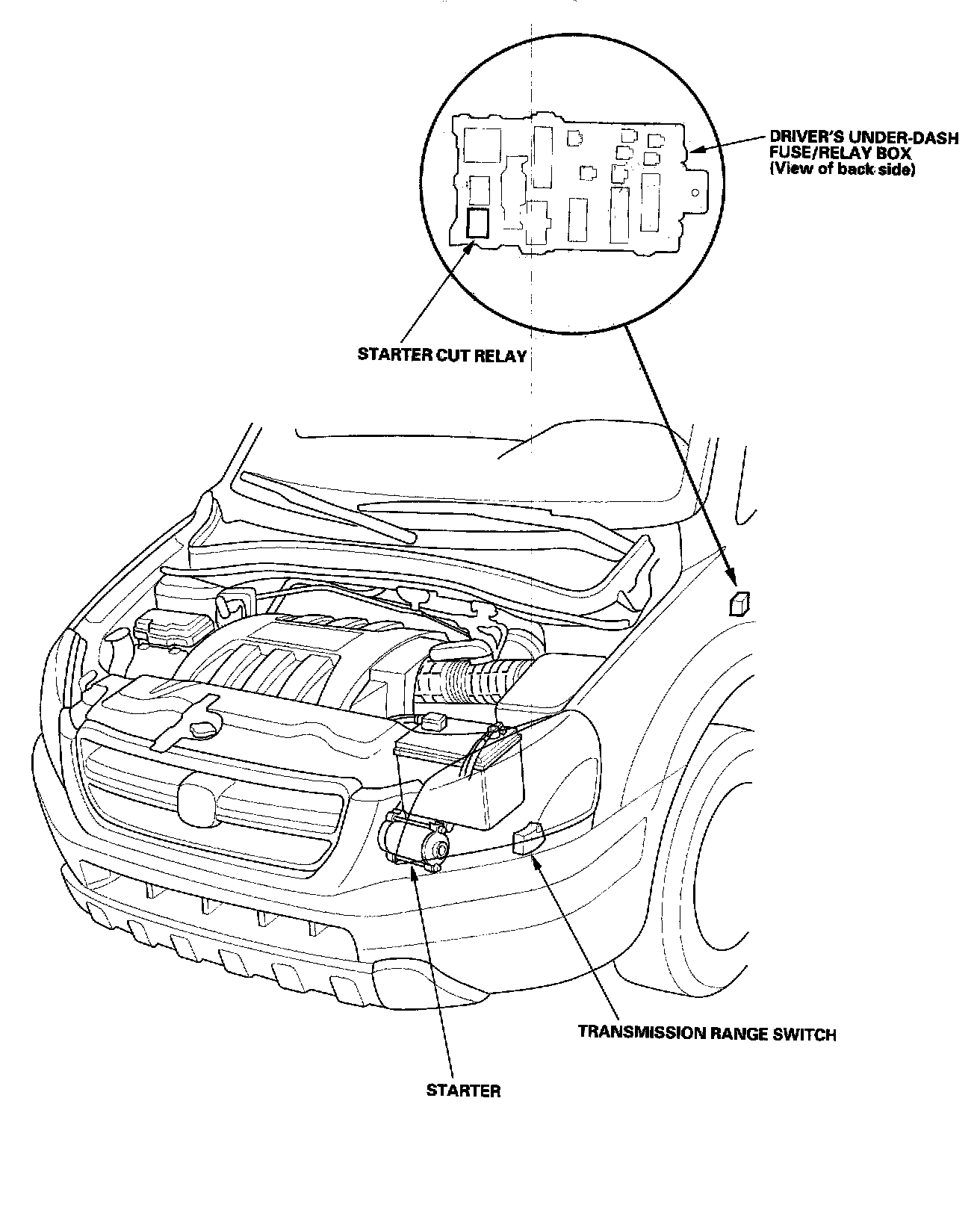

Starting System - Component Location Index:

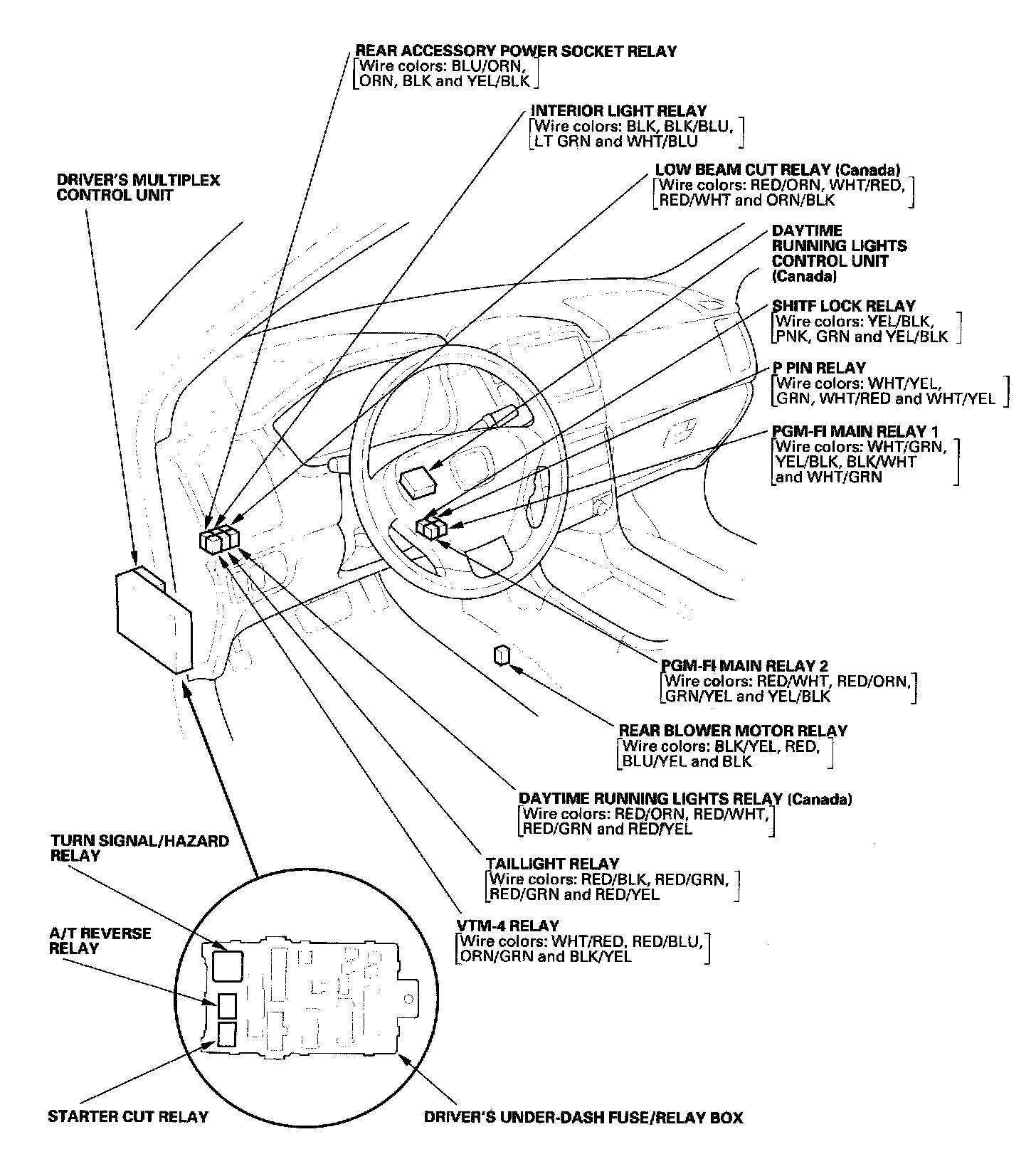

Relay And Control Unit Locations - Dashboard:
