Pinout Values and Diagnostic Parameters

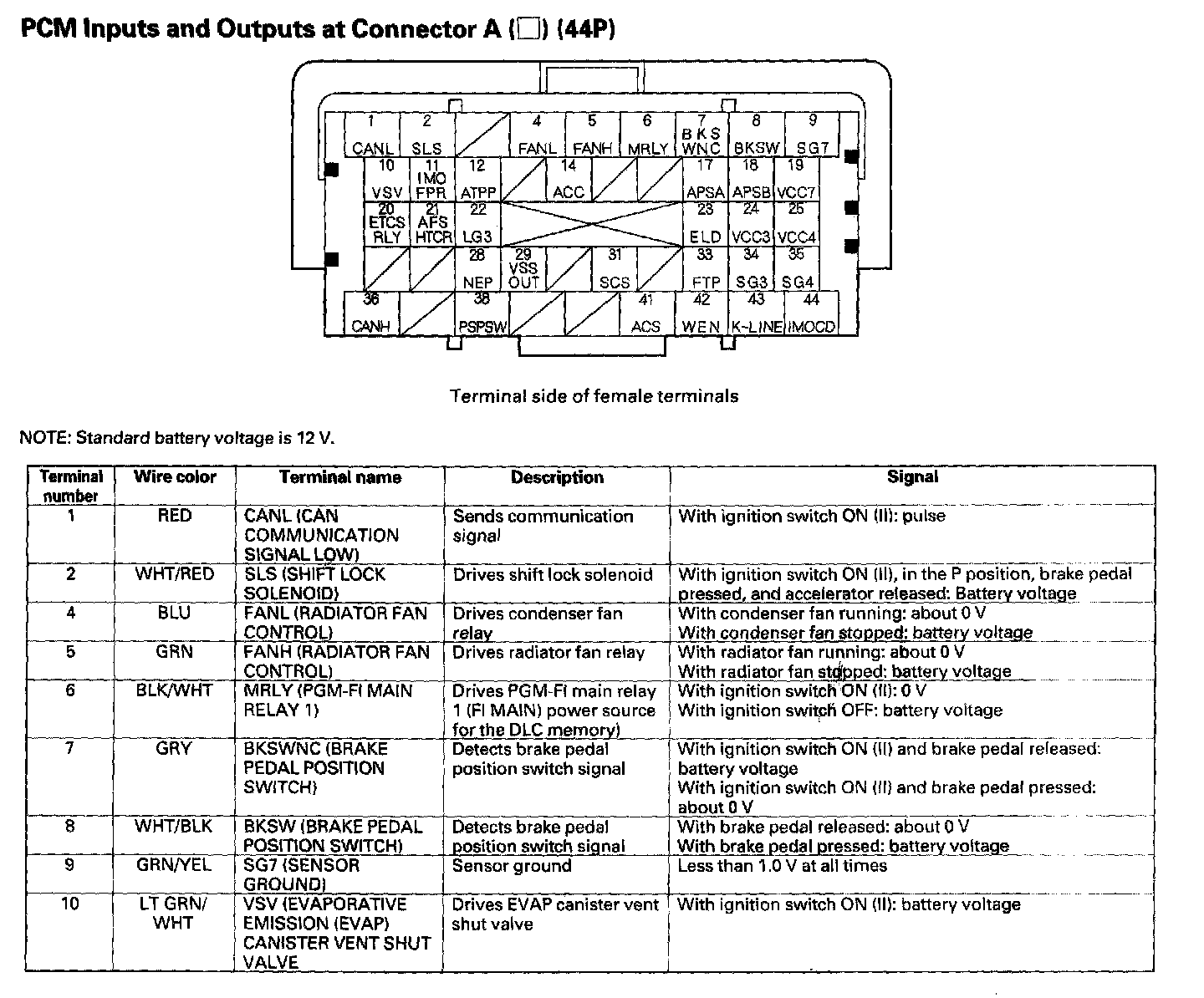

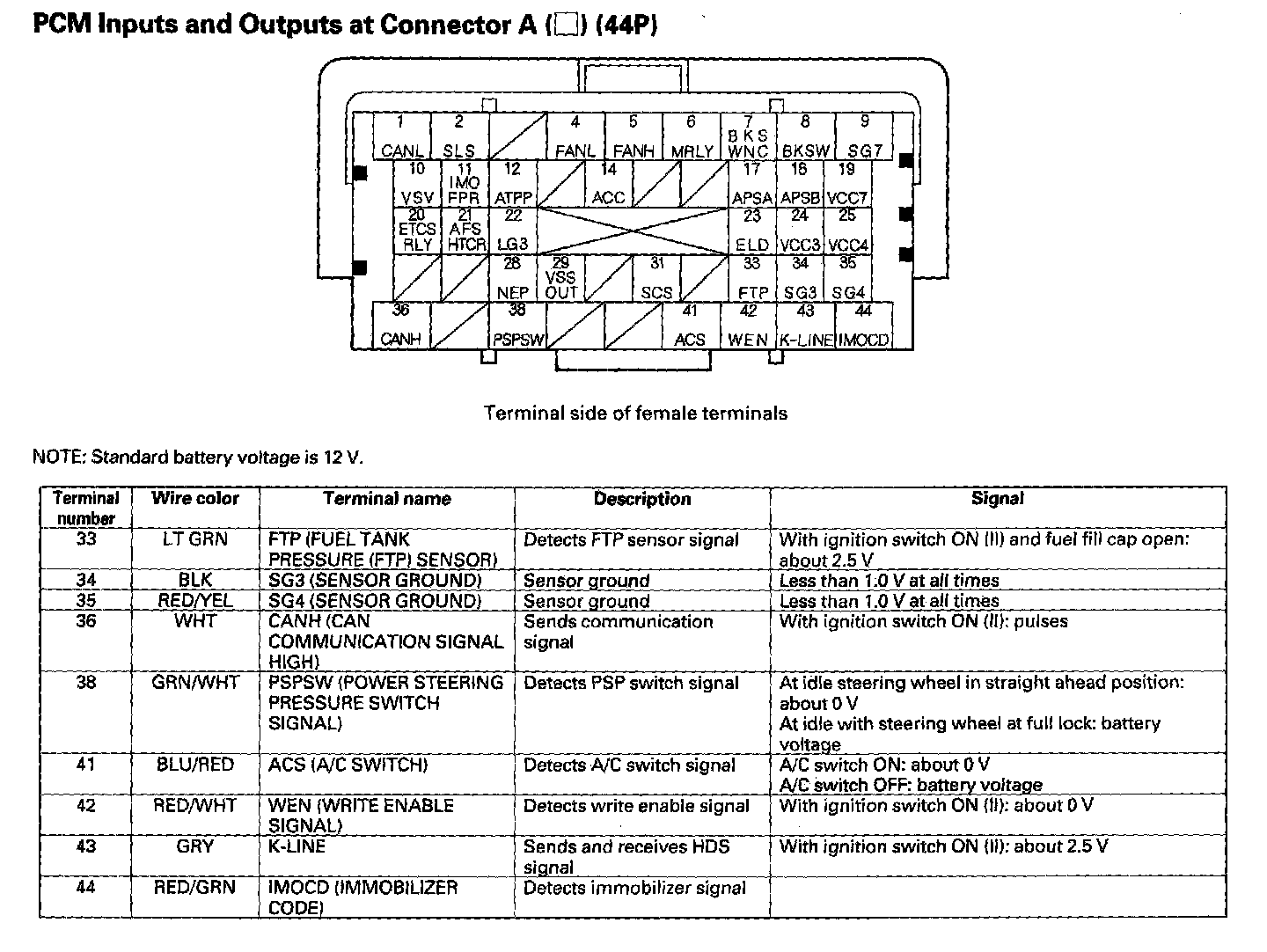

PCM Inputs And Outputs At Connector A (44P) Part 1:

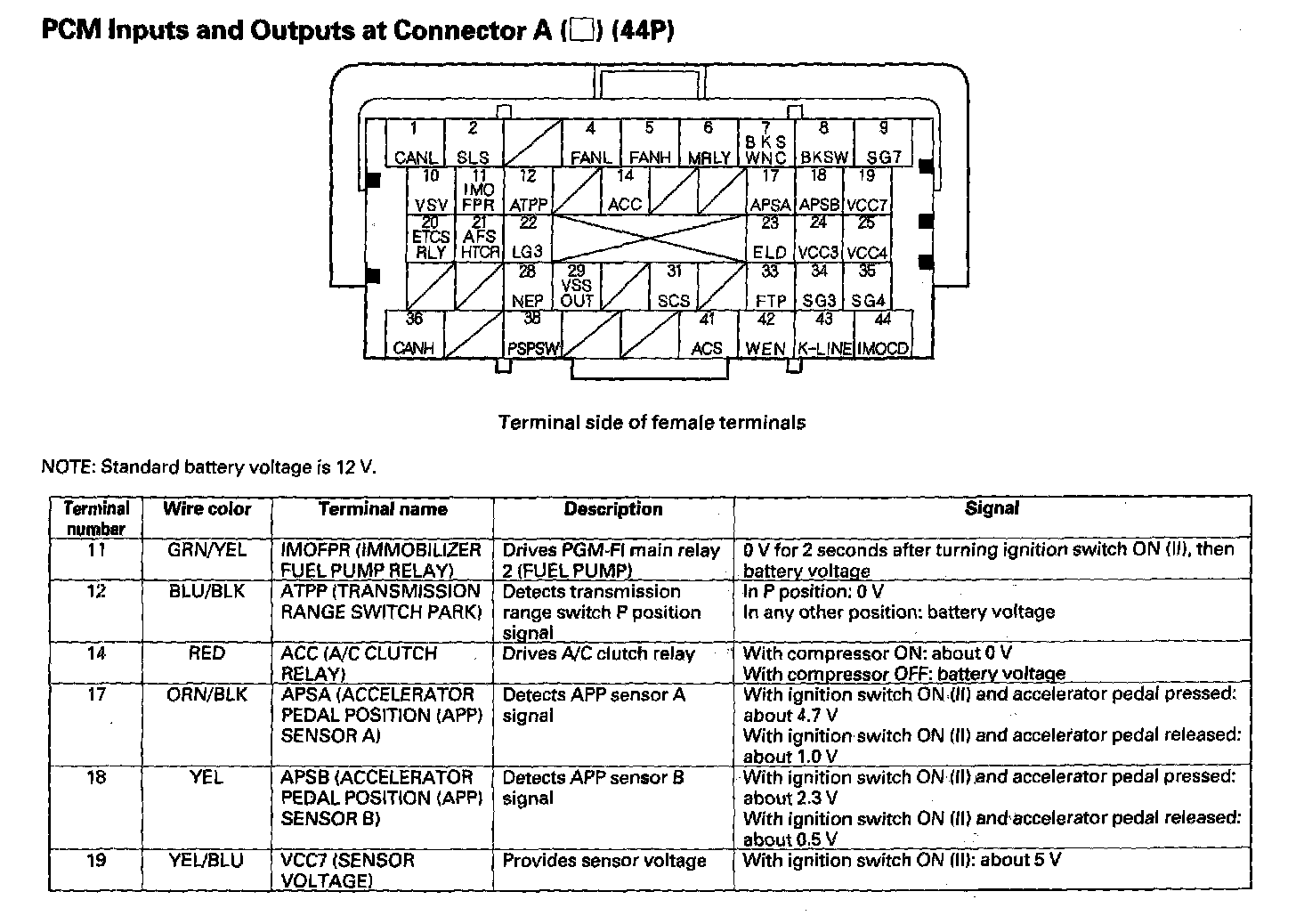

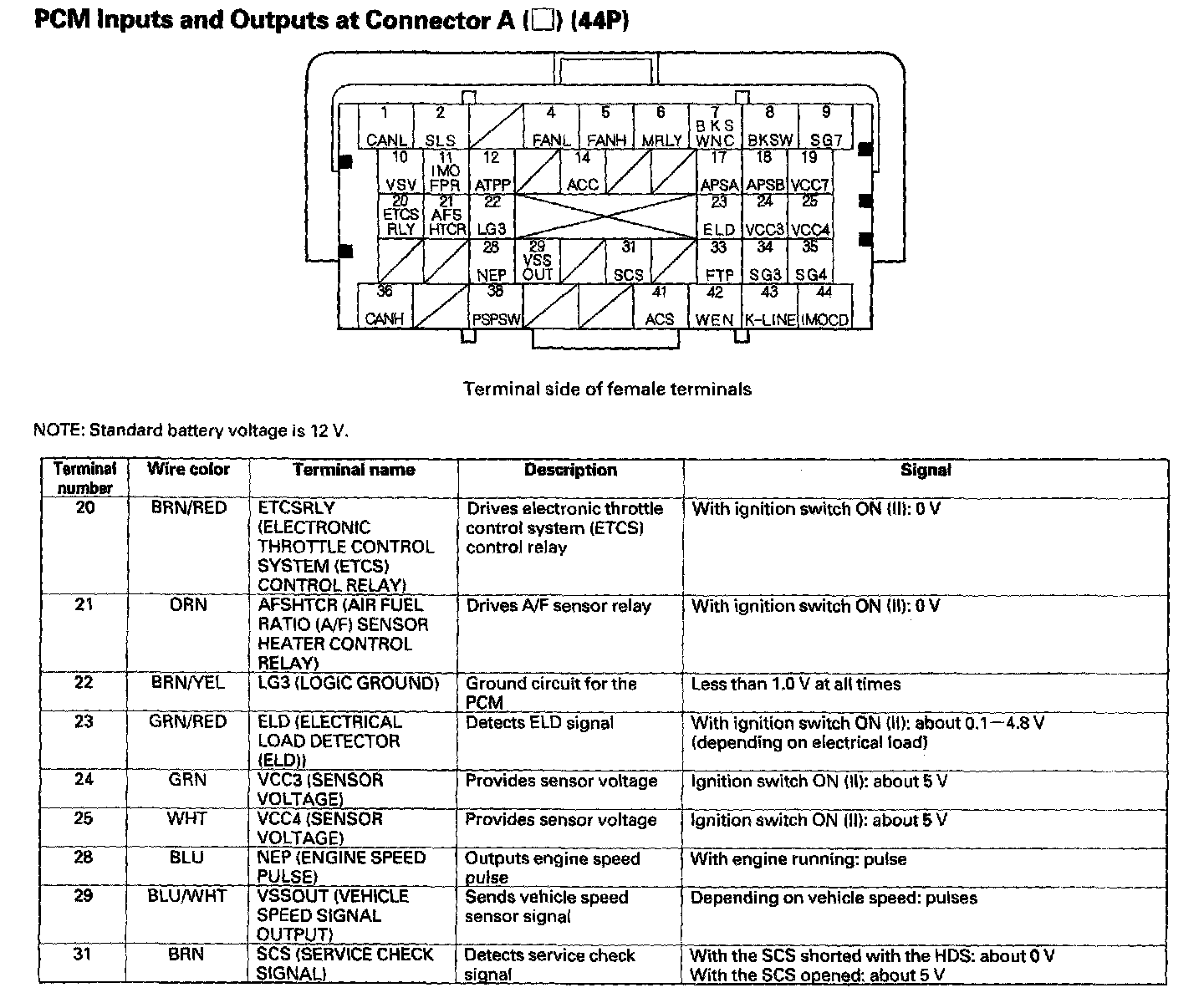

PCM Inputs And Outputs At Connector A (44P) Part 2:




PCM Inputs And Outputs At Connector A (44P) Part 3:




PCM Inputs And Outputs At Connector A (44P) Part 4:

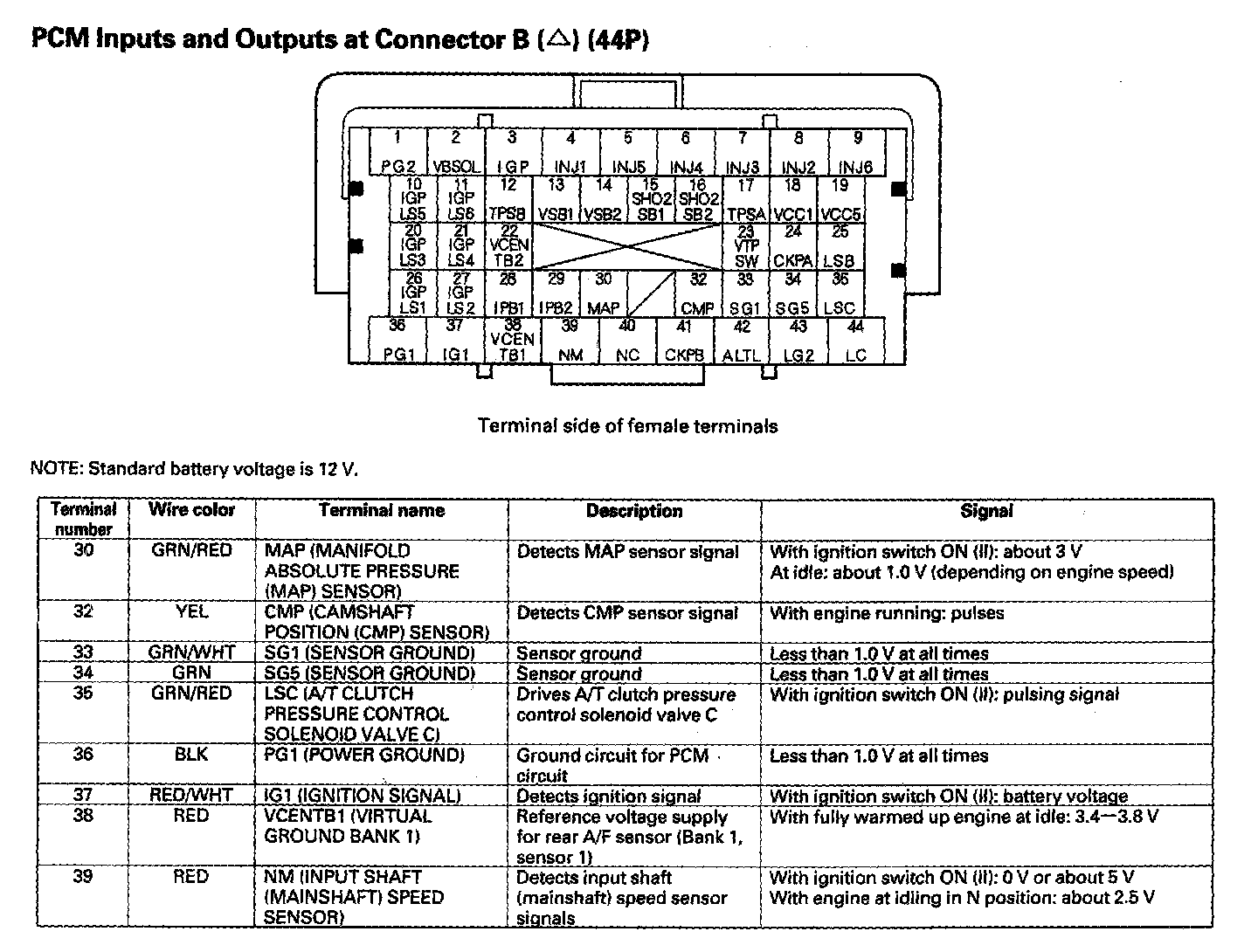

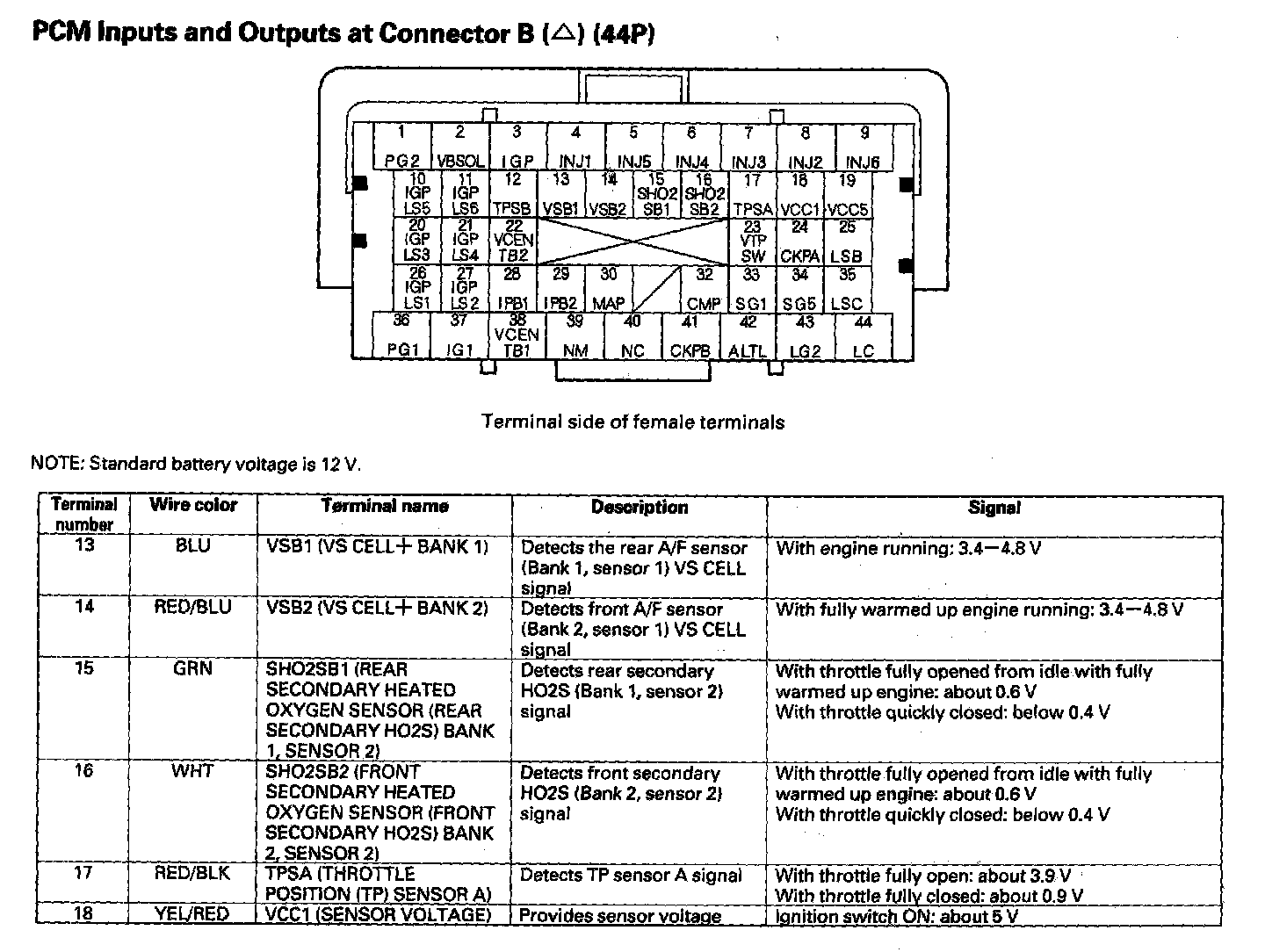

PCM Inputs and Outputs at Connector B (44P) Part 1:

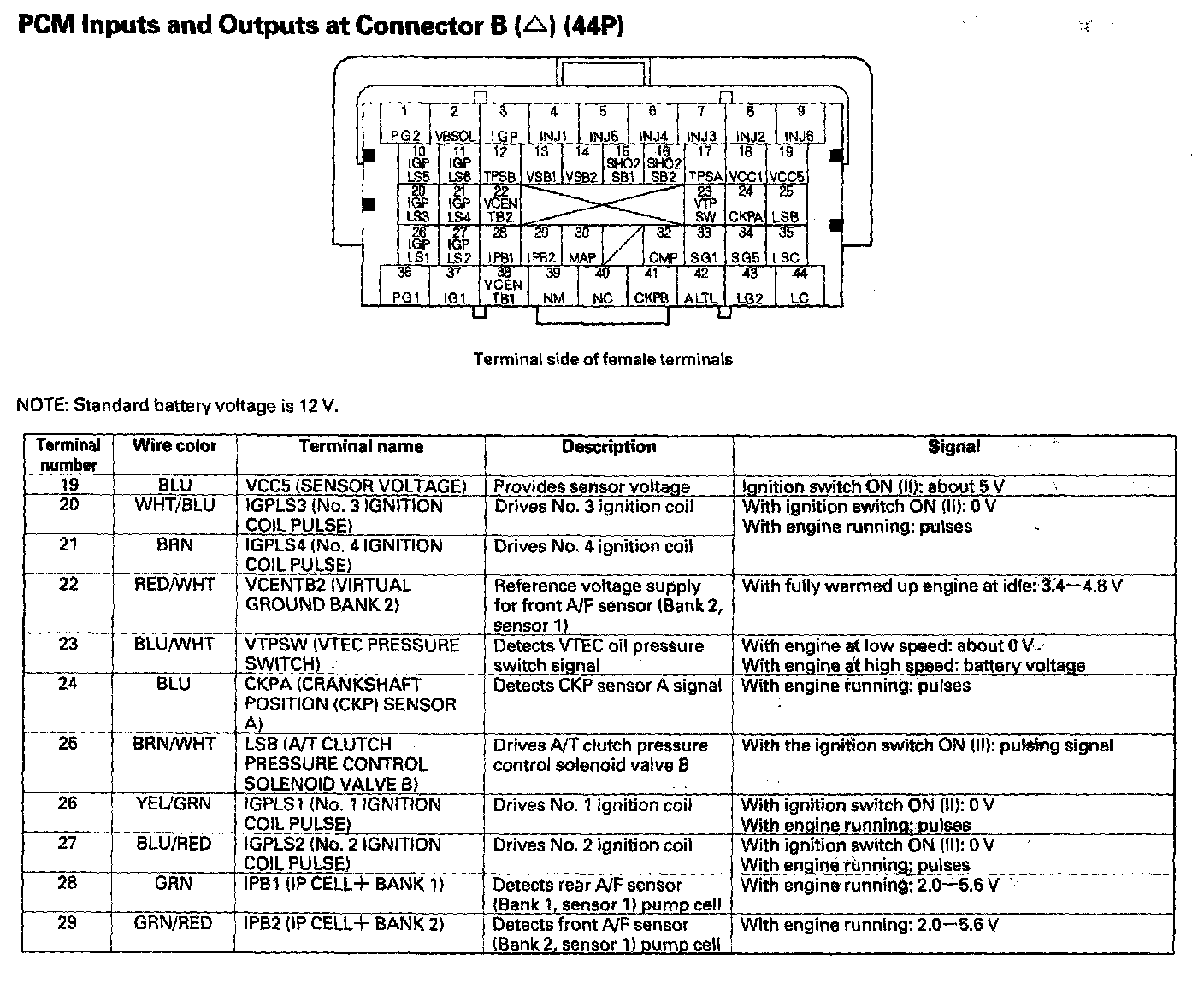

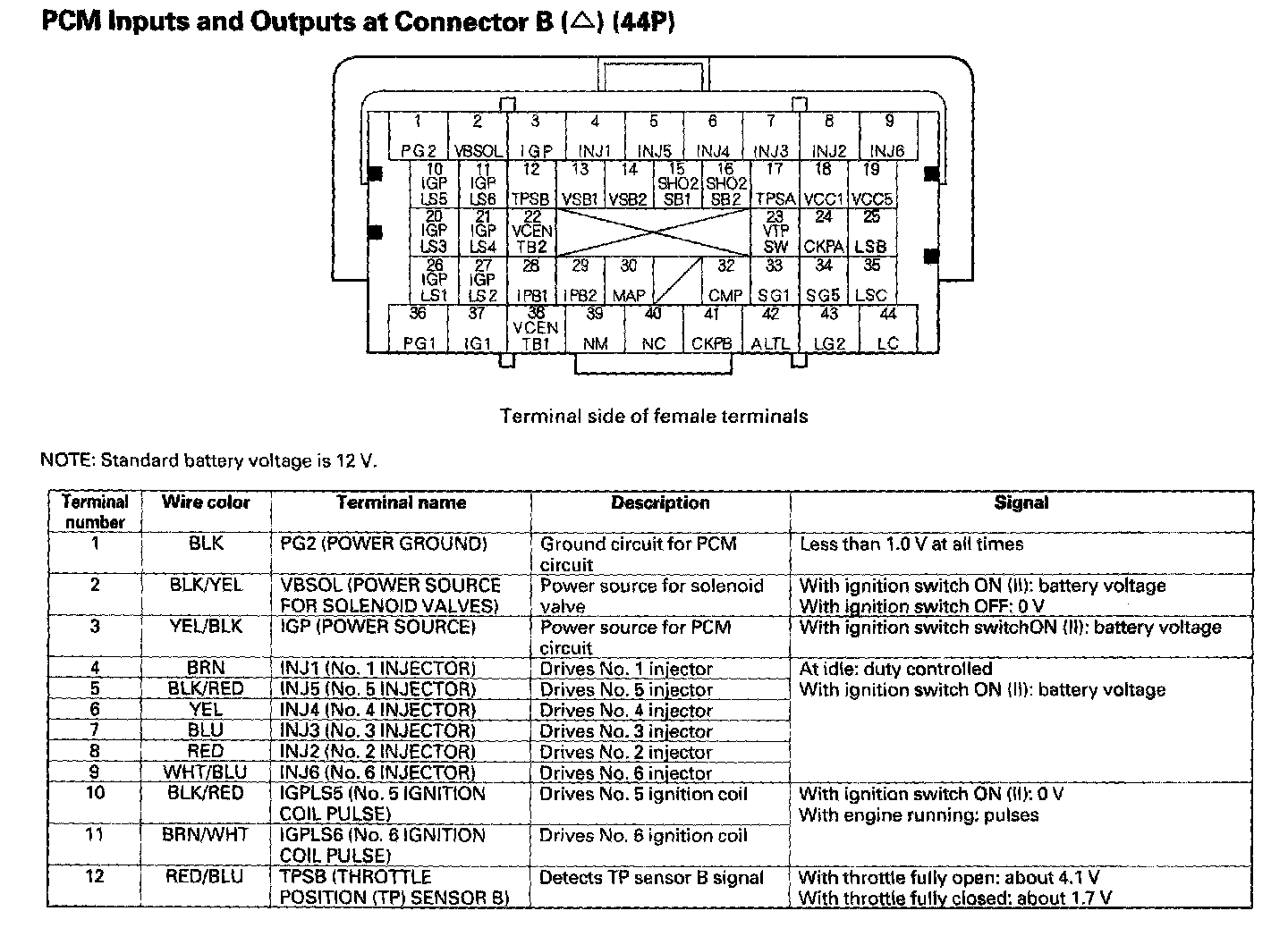

PCM Inputs And Outputs At Connector B (44P) Part 2:




PCM Inputs And Outputs At Connector B (44P) Part 3:




PCM Inputs And Outputs At Connector B (44P) Part 4:

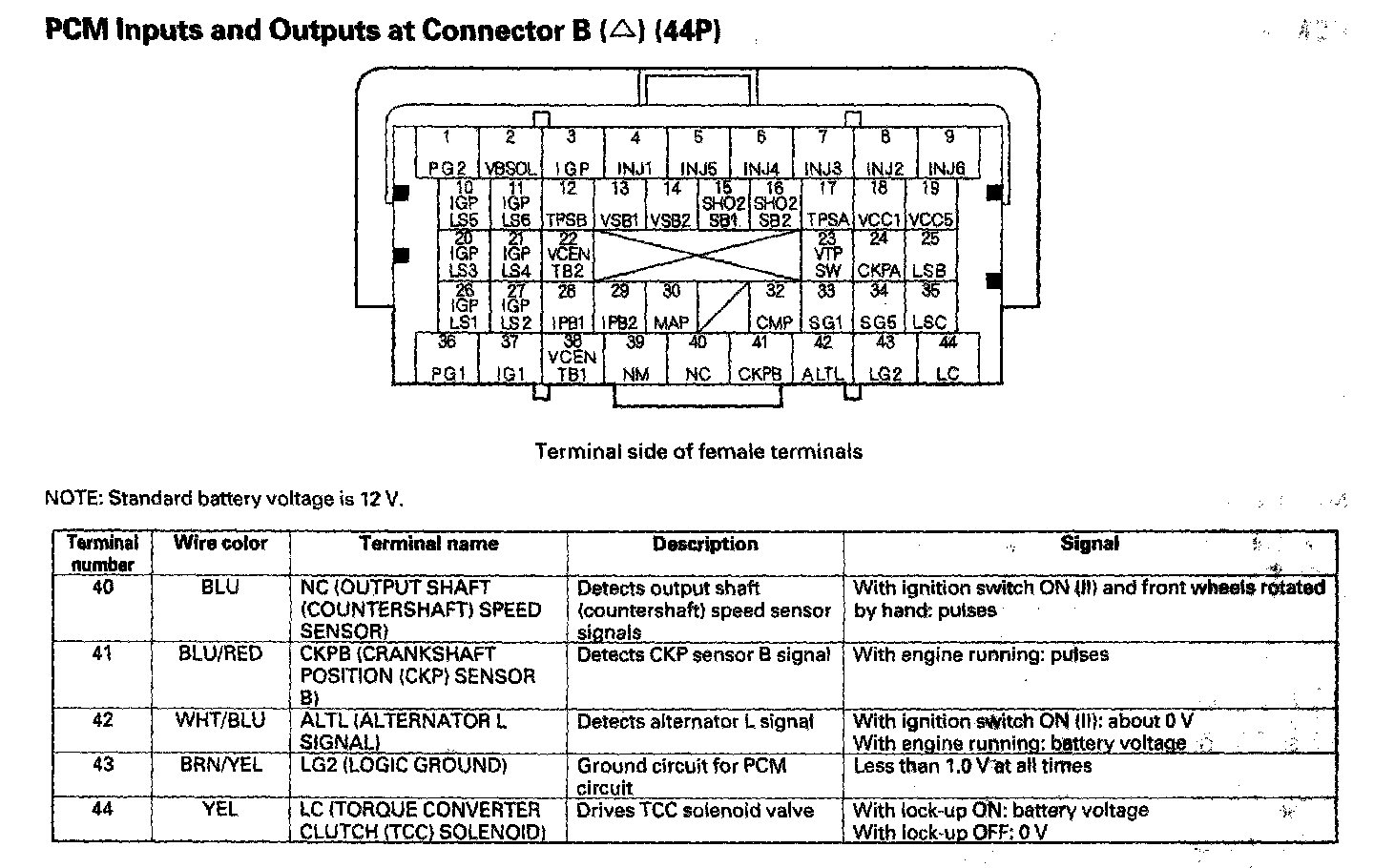

PCM Inputs And Outputs At Connector B (44P) Part 5:

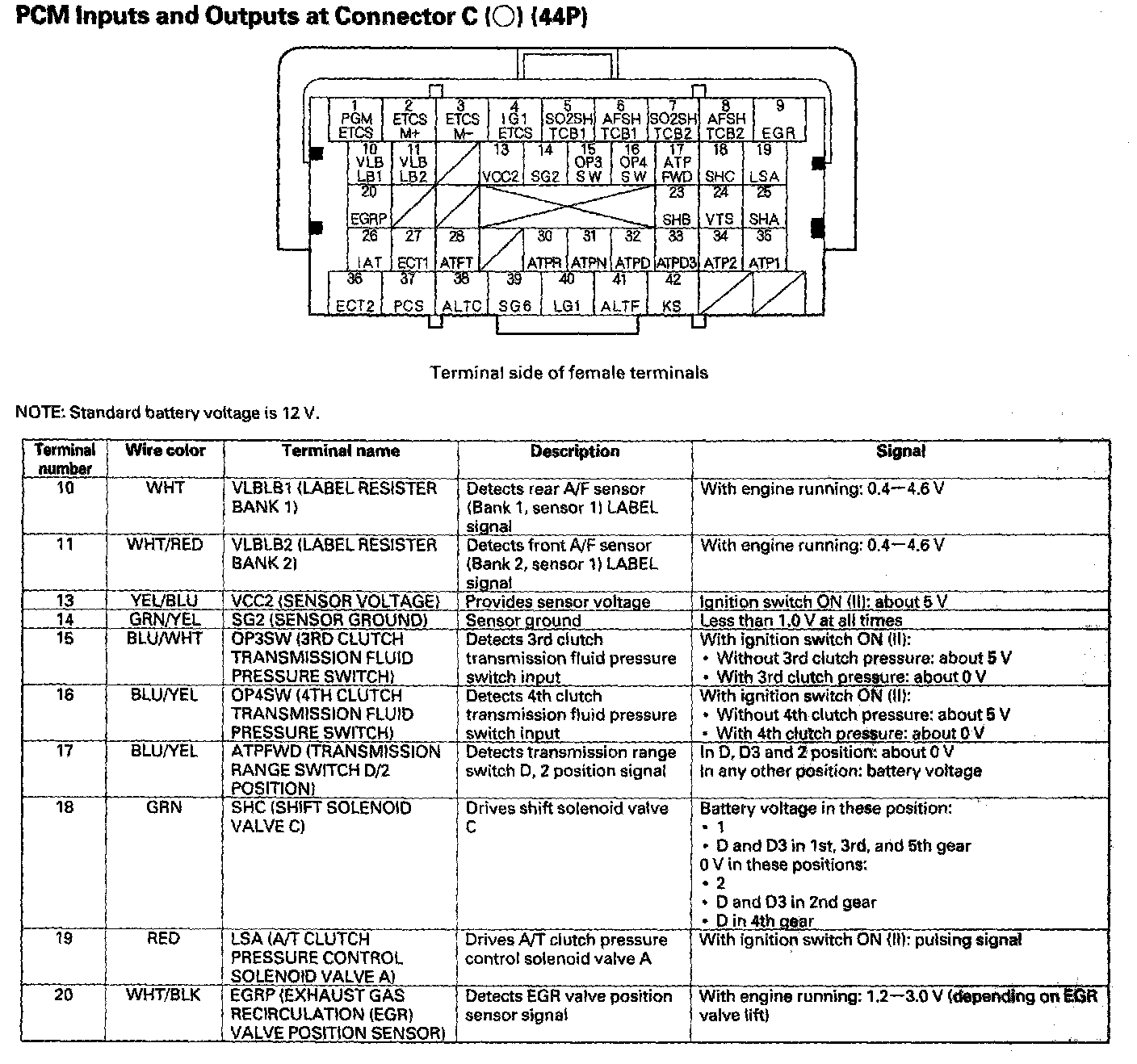

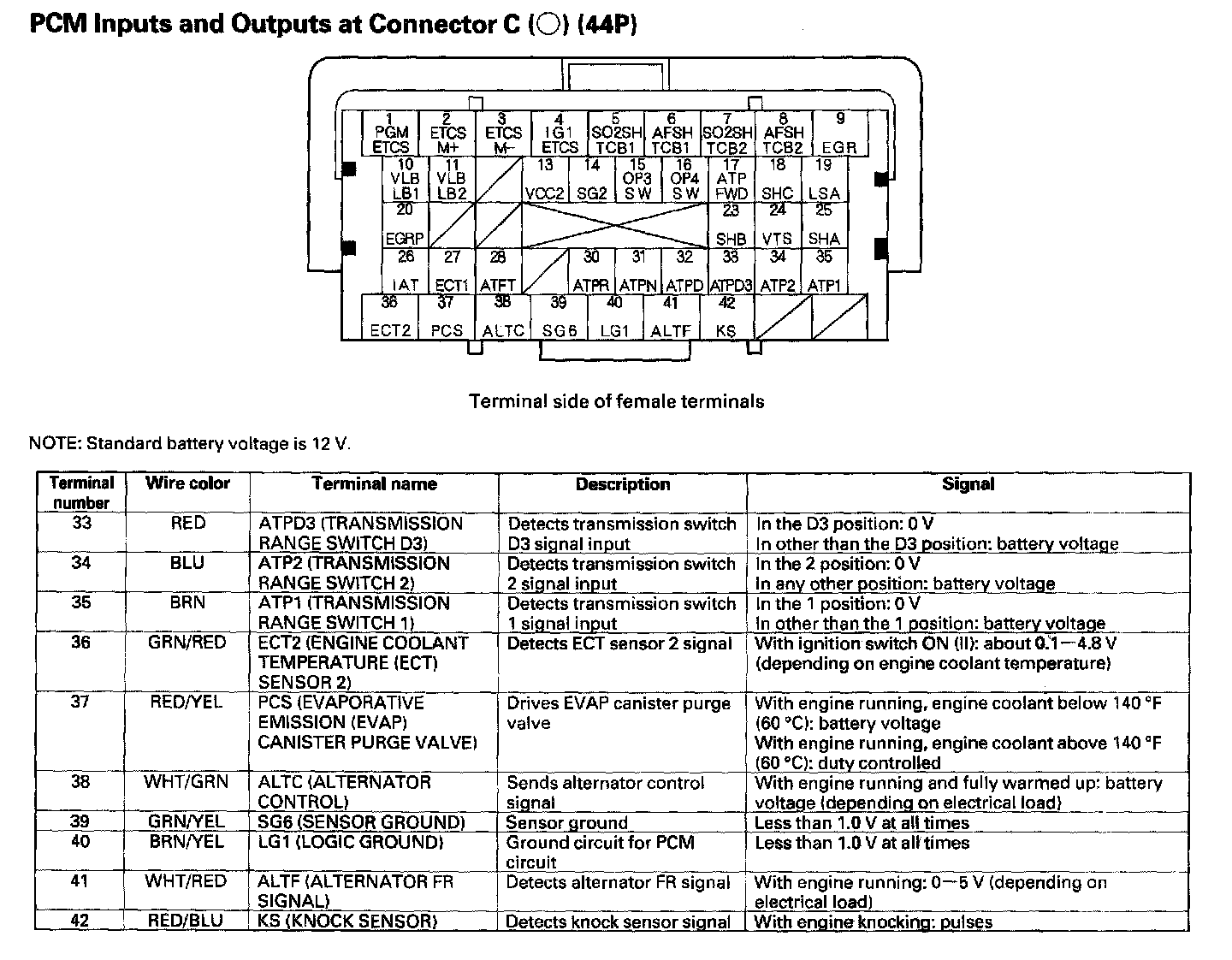

PCM Inputs And Outputs At Connector C (44P) Part 1:

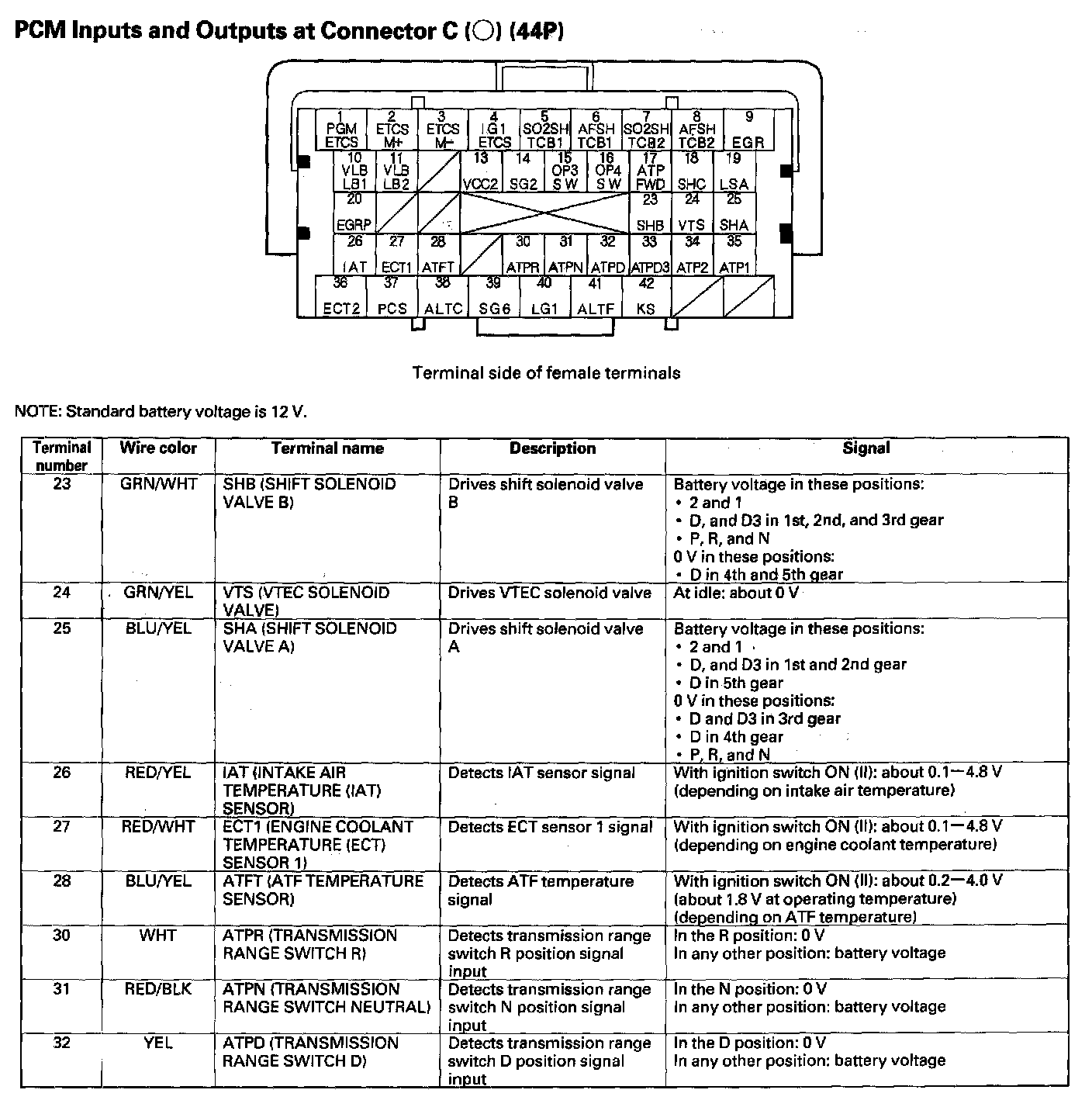

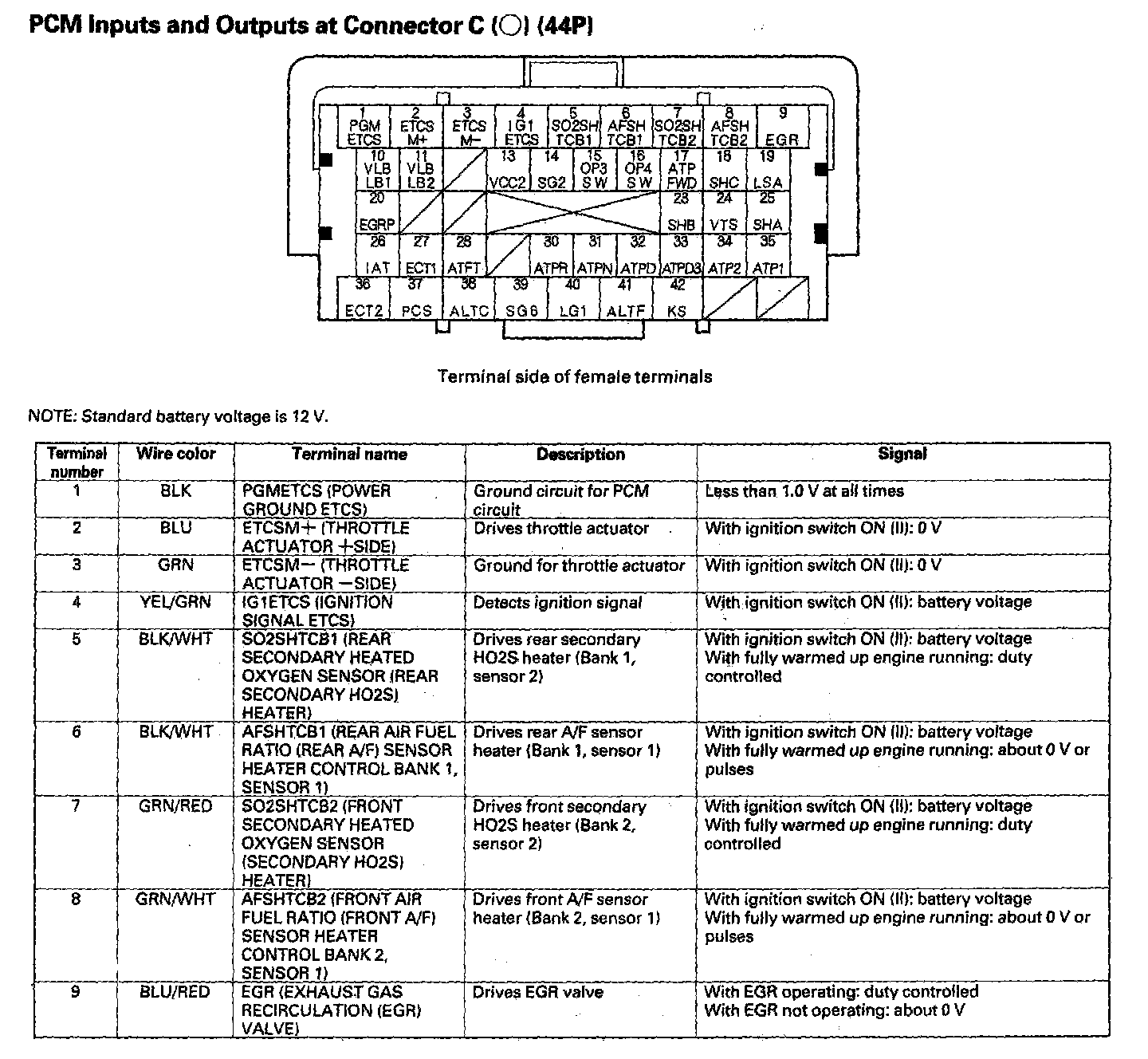

PCM Inputs And Outputs At Connector C (44P) Part 2:




PCM Inputs And Outputs At Connector C (44P) Part 3:




PCM Inputs And Outputs At Connector C (44P) Part 4:
