Trailer Lighting Module
Trailer Lighting Module

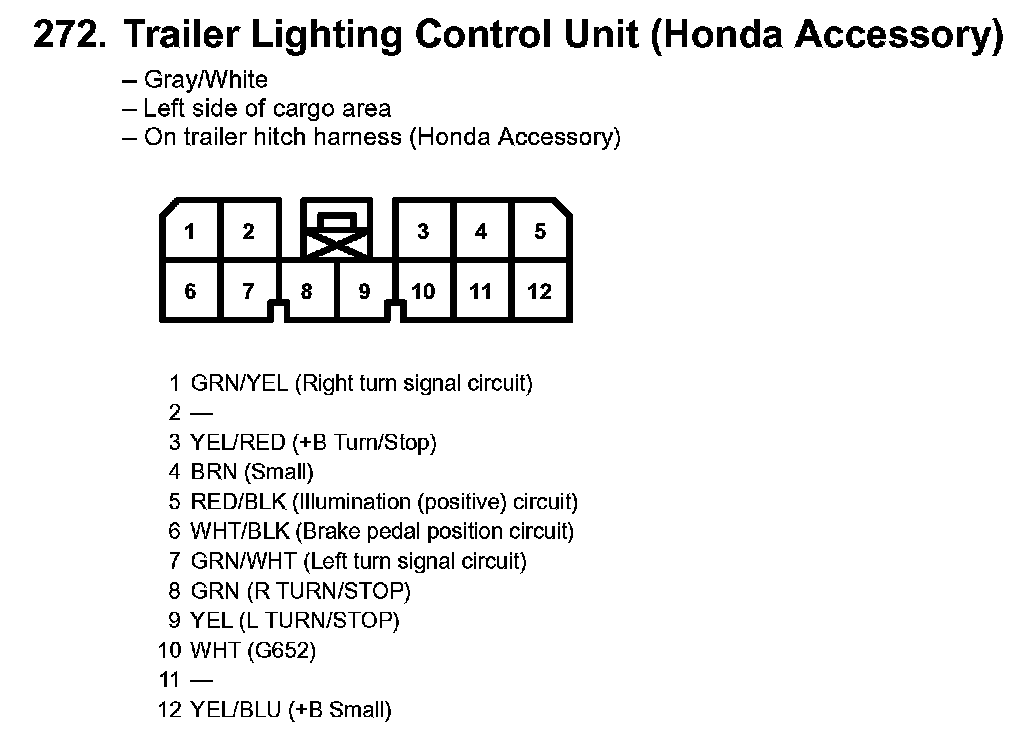

272. Trailer Lighting Control Unit (Honda Accessory):
