Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

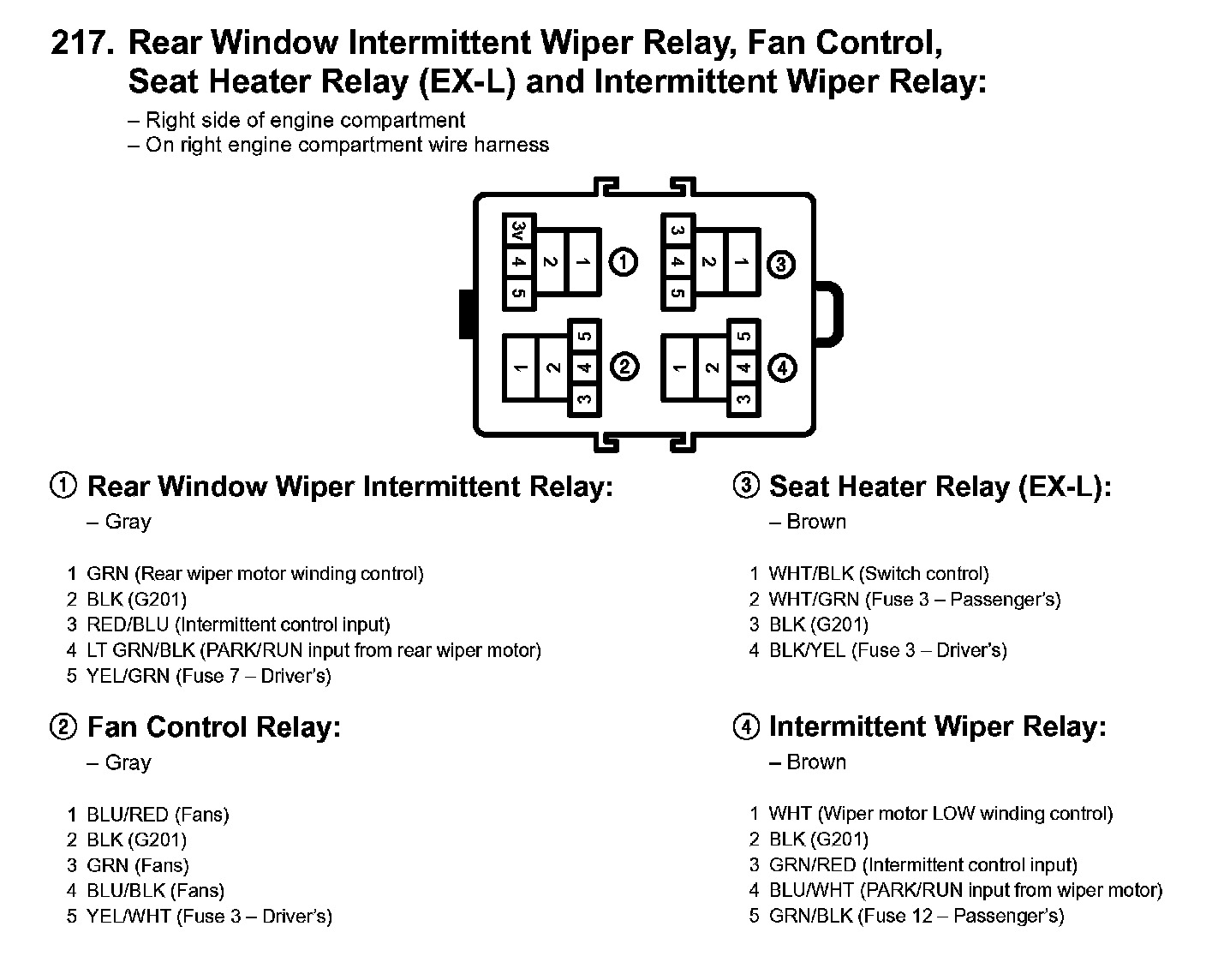

217. Rear Window Intermittent Wiper Relay, Fan Control, Seat Heater Relay (EX-L) And Intermittent Wiper Relay::
