Oxygen Sensor

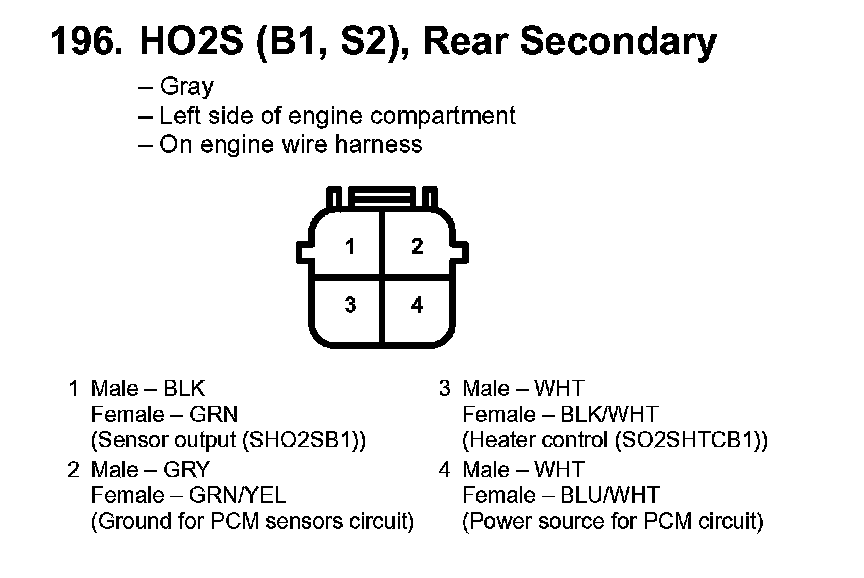

196. HO2S (B1, S2), Rear Secondary:

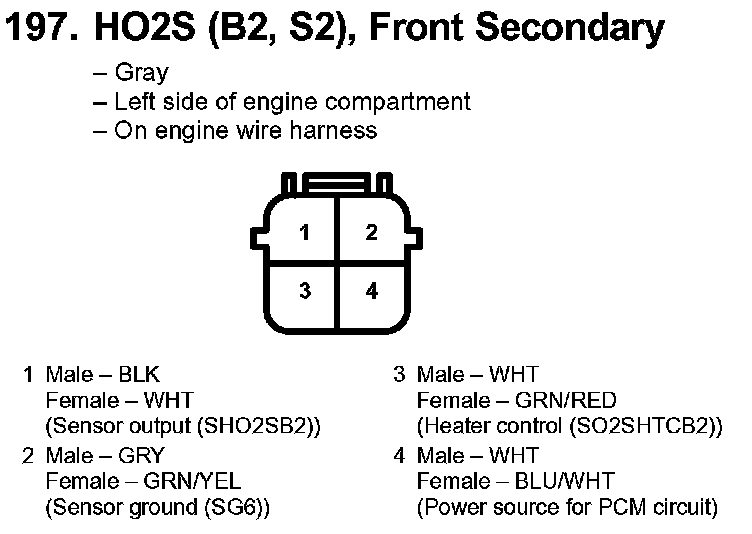

197. HO2S (B2, S2), Front Secondary:

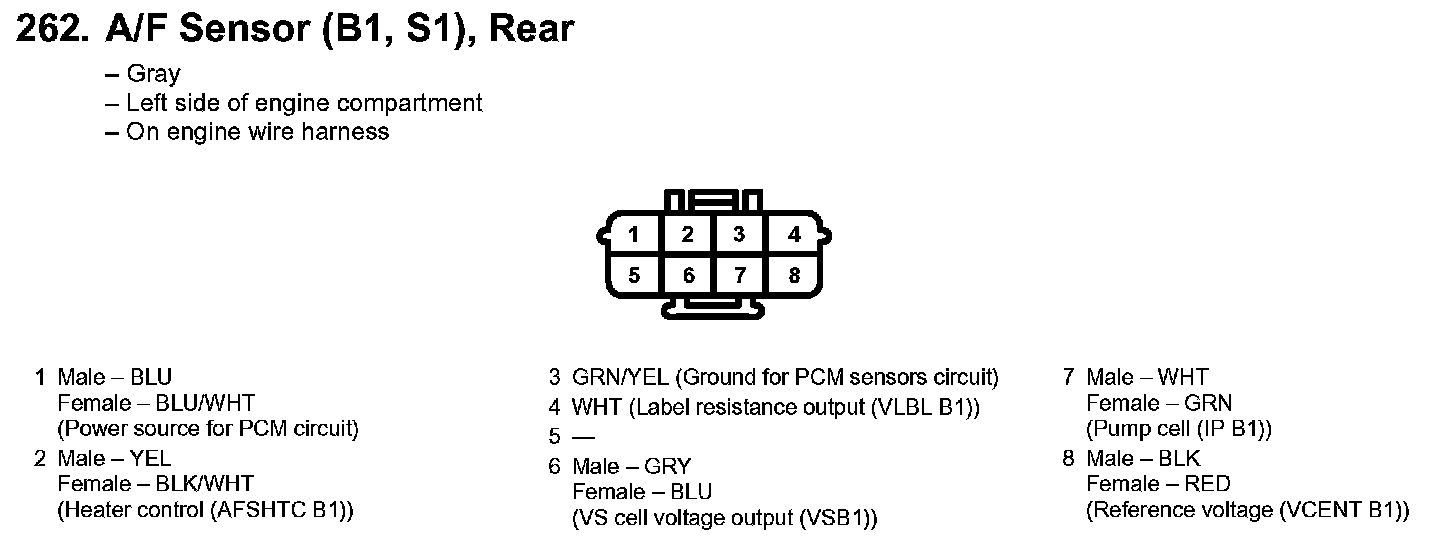

262. A/F Sensor (B1, S1) Rear:

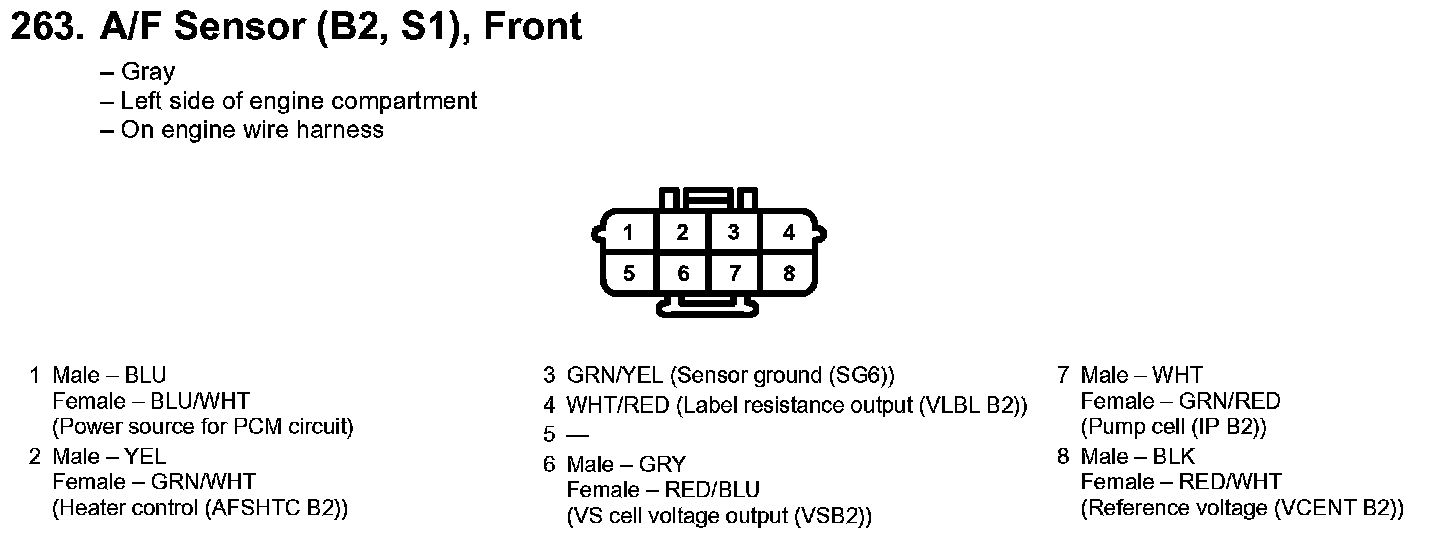

263. A/F Sensor (B2, S1), Front:
