Home >> Honda >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> Navigation Module

Navigation Module

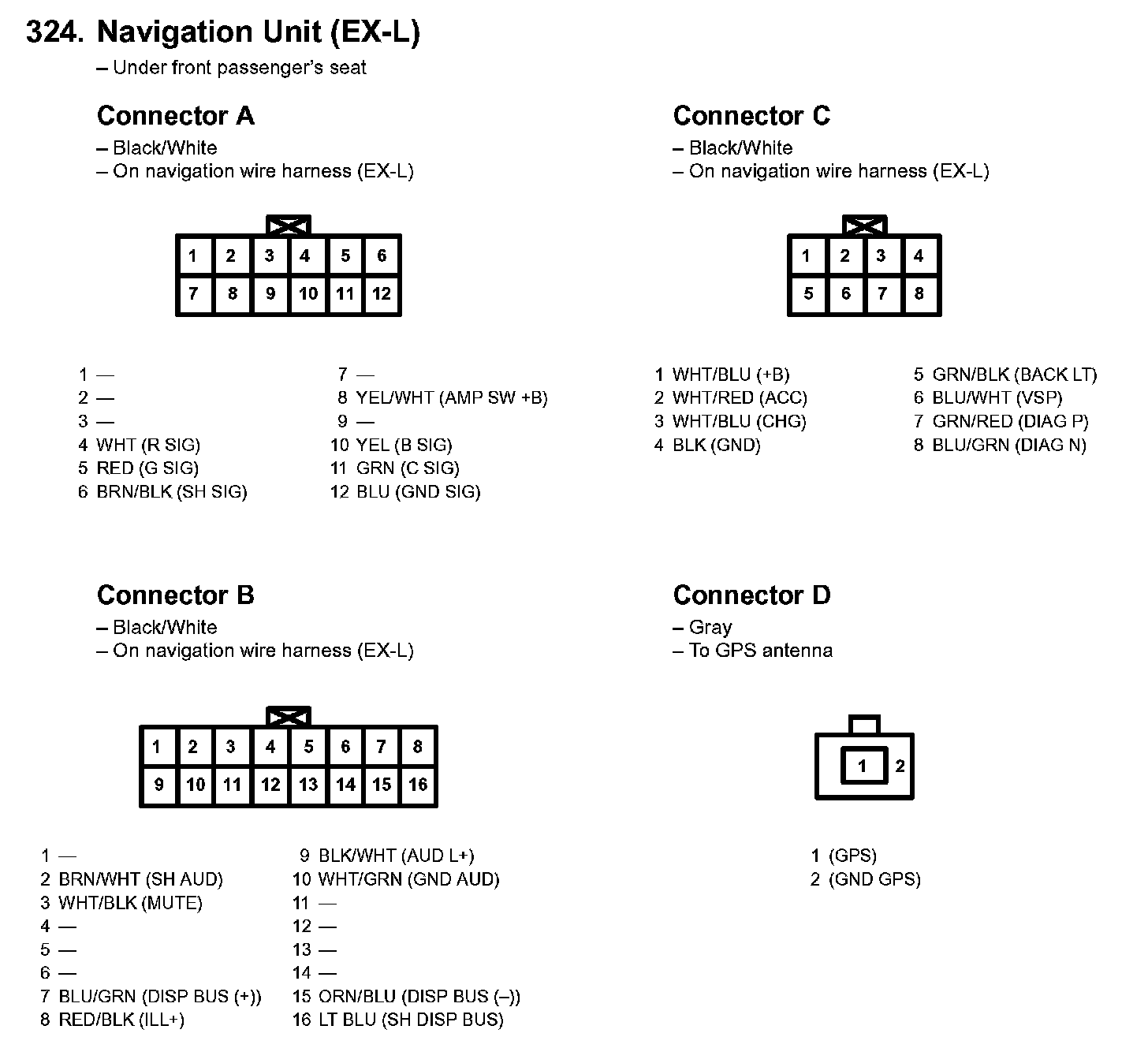

324. Navigation Unit (EX-L):

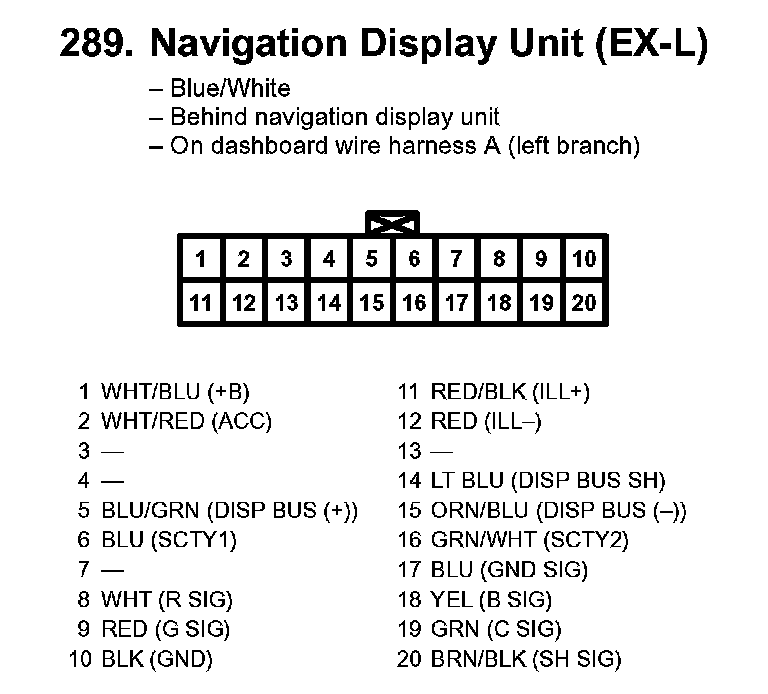

289. Navigation Display Unit (EX-L):
